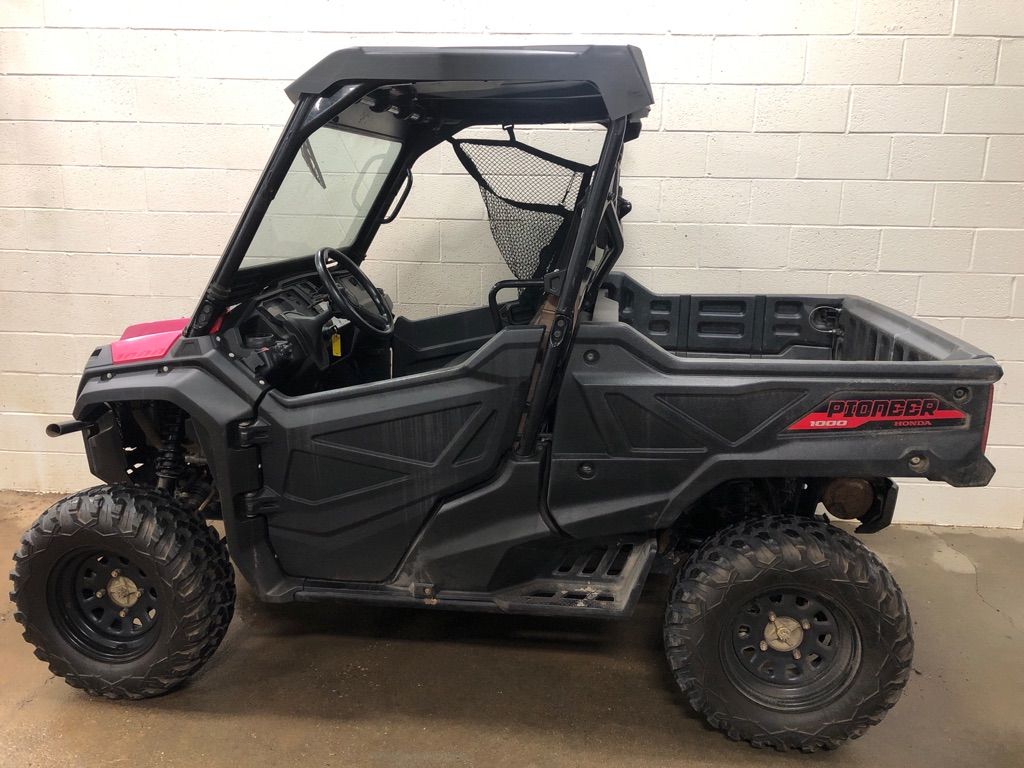

2018 Honda Pioneer 1000 4x4 SXS1000M3 Used Parts, Stock #3423

PirateMX dismantled this 2018 Honda Pioneer 1000 4x4 SXS1000M3 for used parts, producing 131 parts from one donor side by side. Body and drivetrain pieces are included. So are suspension, steering and brake components; browse below for the replacement your SxS needs.

Available Parts From This 2018 Honda Pioneer 1000 4x4

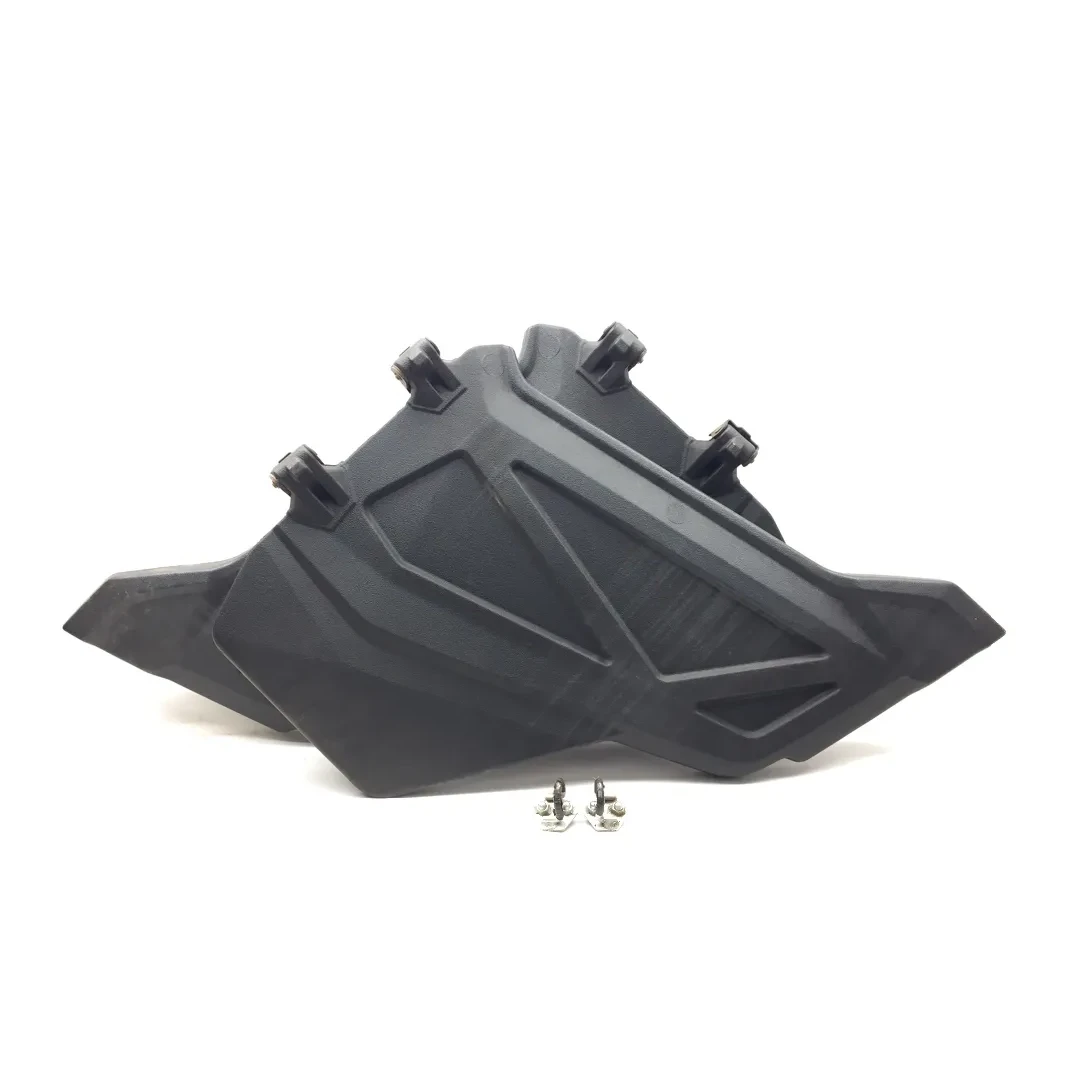

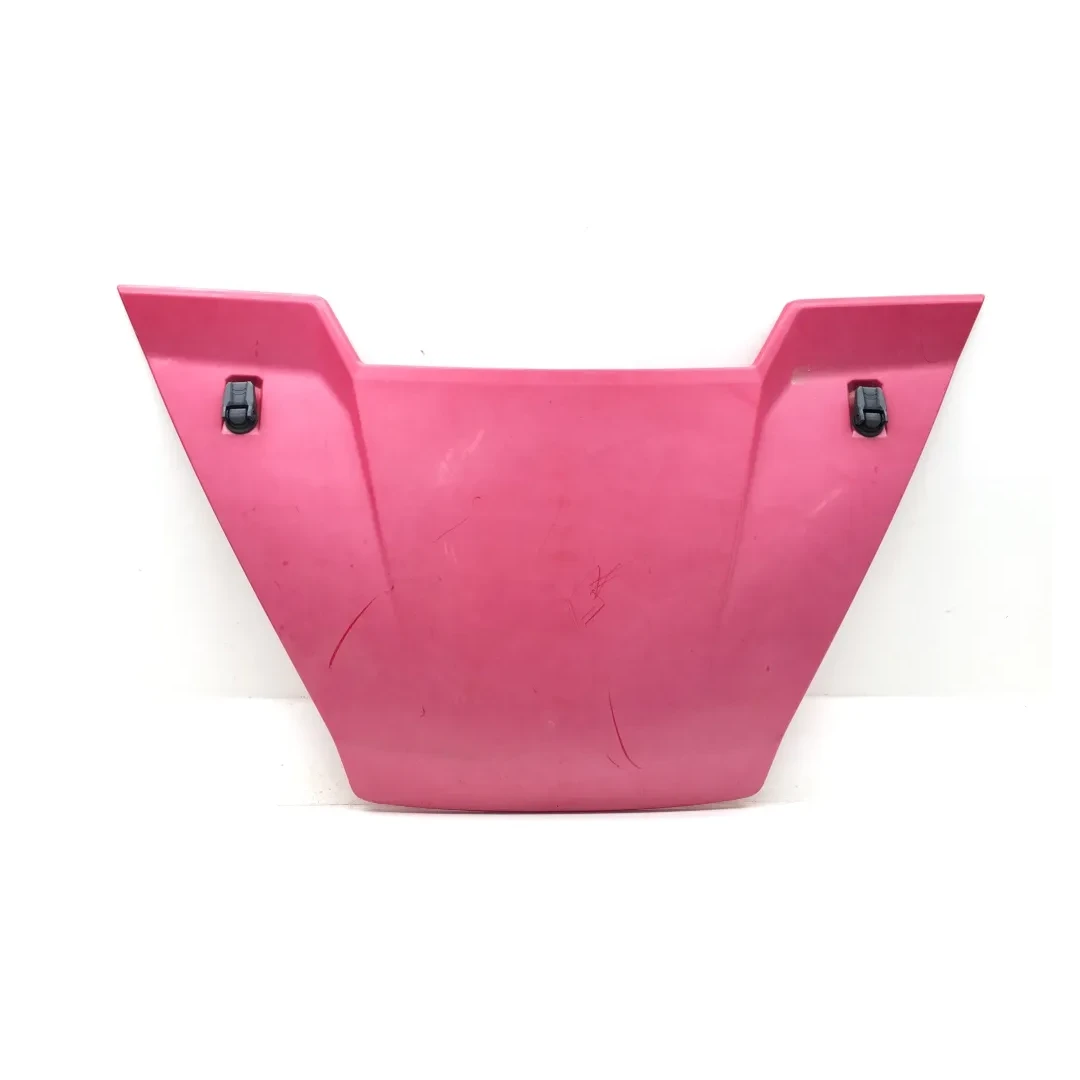

From this Honda Pioneer 1000, stock #3423, the left and right door set, fender flares, axle, complete bed assembly, hood and steering wheel are used parts removed from the exact machine that came in with 6,127 miles.

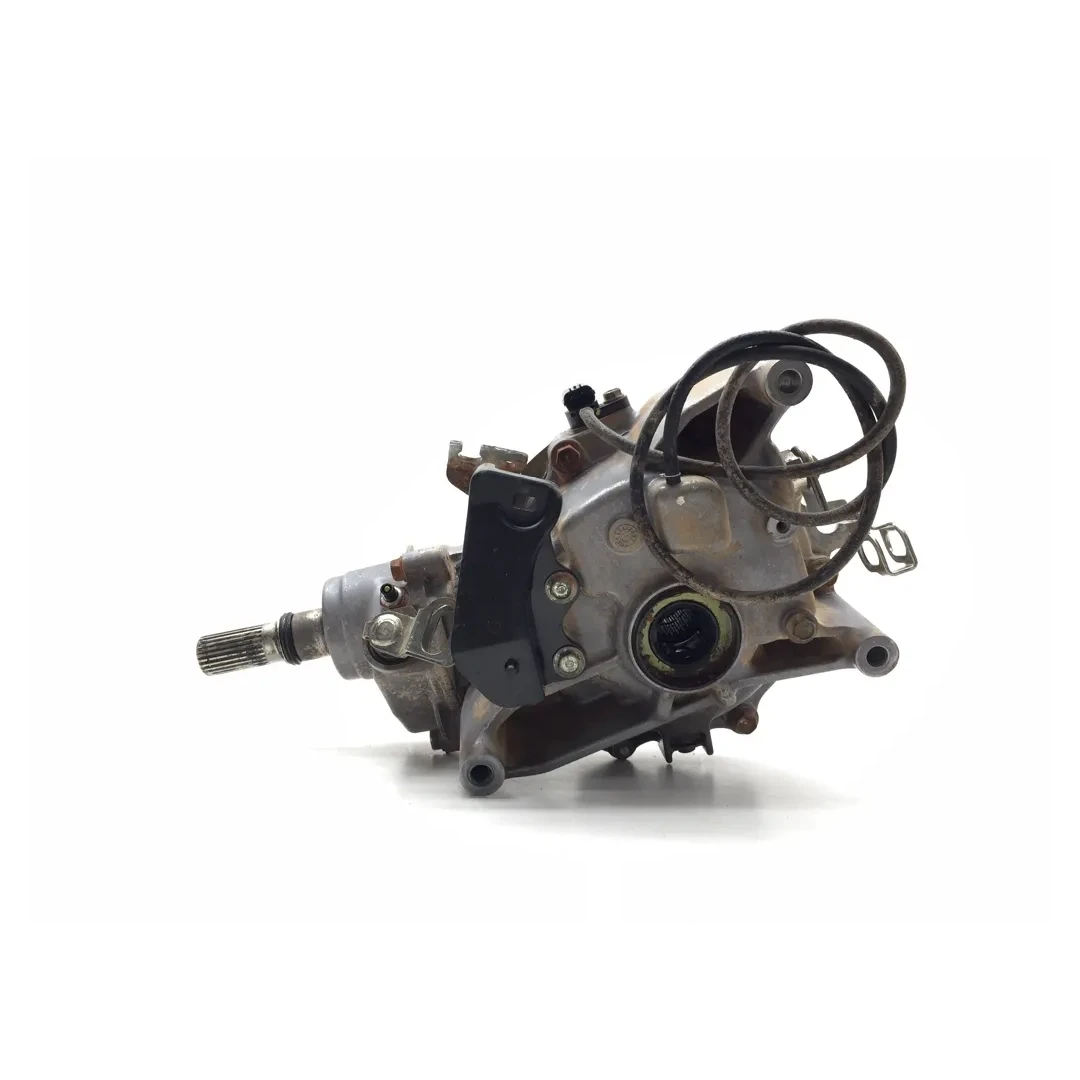

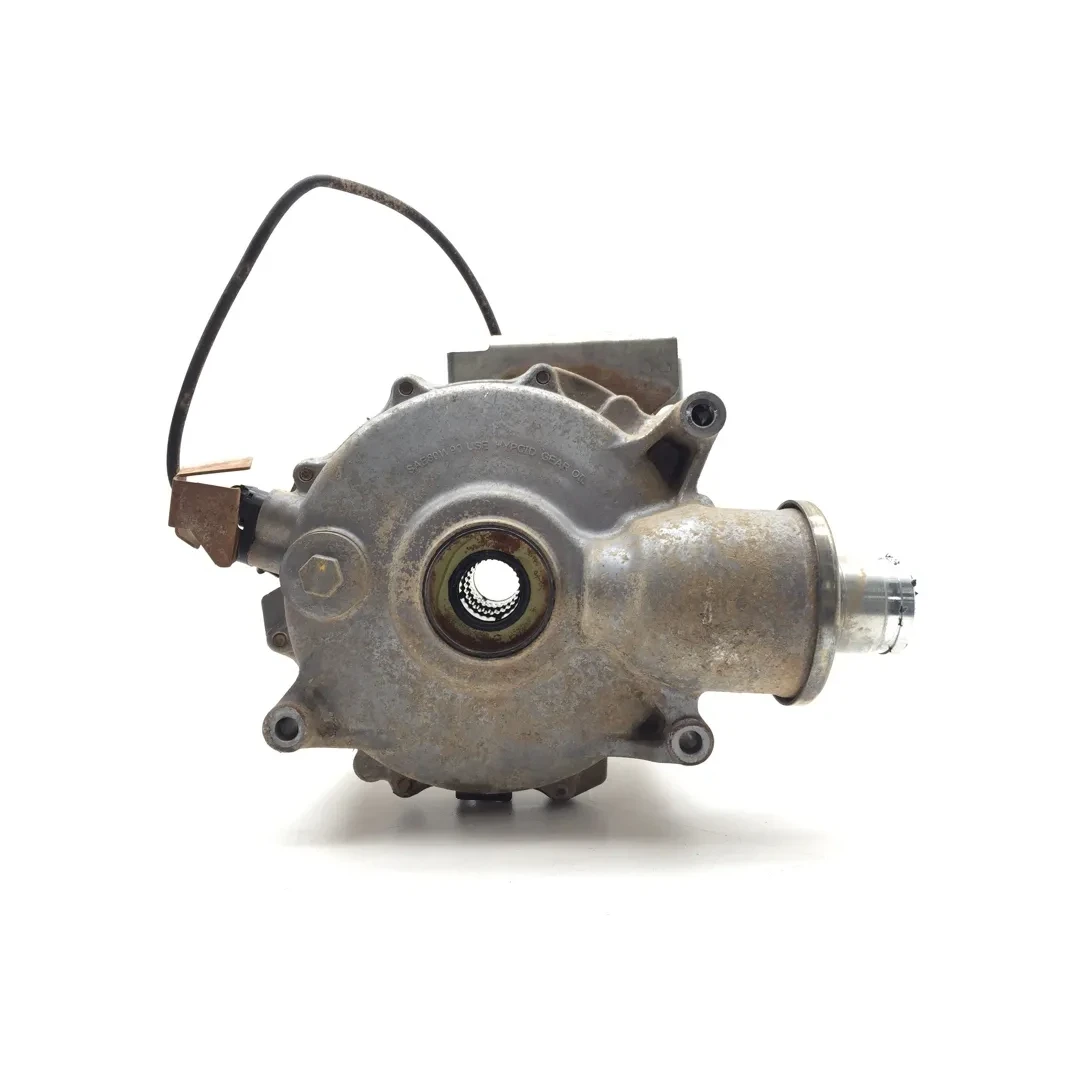

Major pieces include the frame chassis, complete transmission gear set, rear differential, front differential ring gear and pinion, and steering rack and pinion.

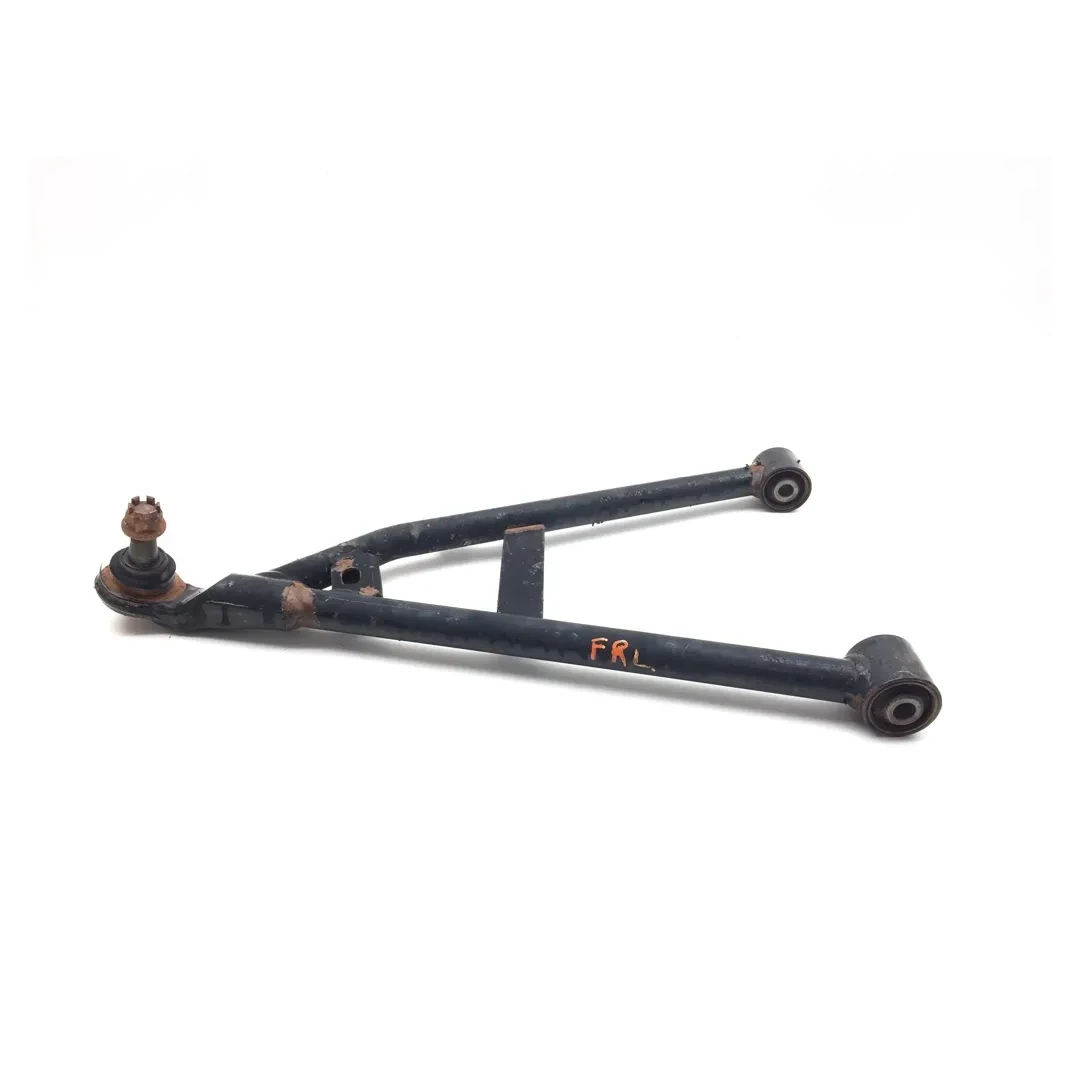

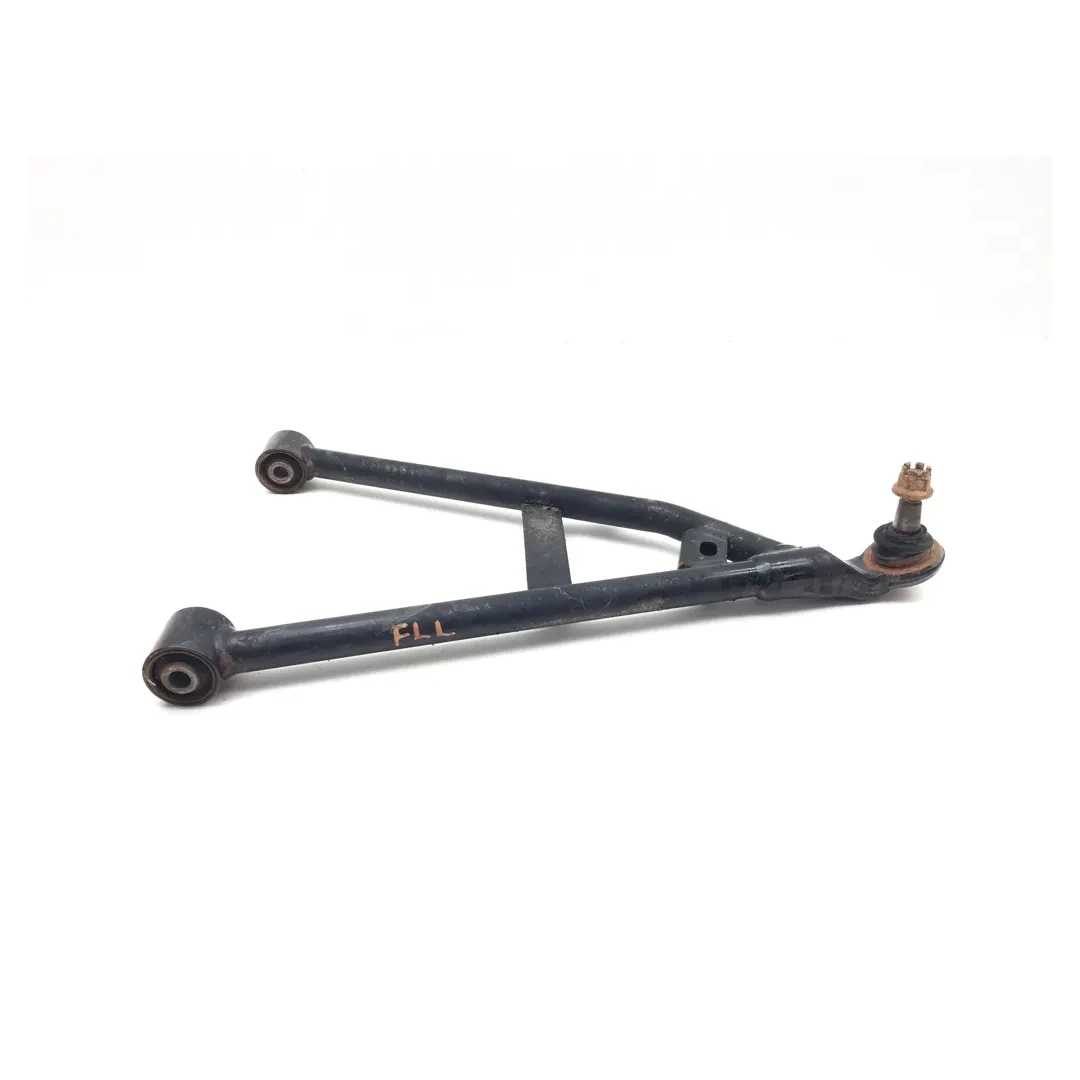

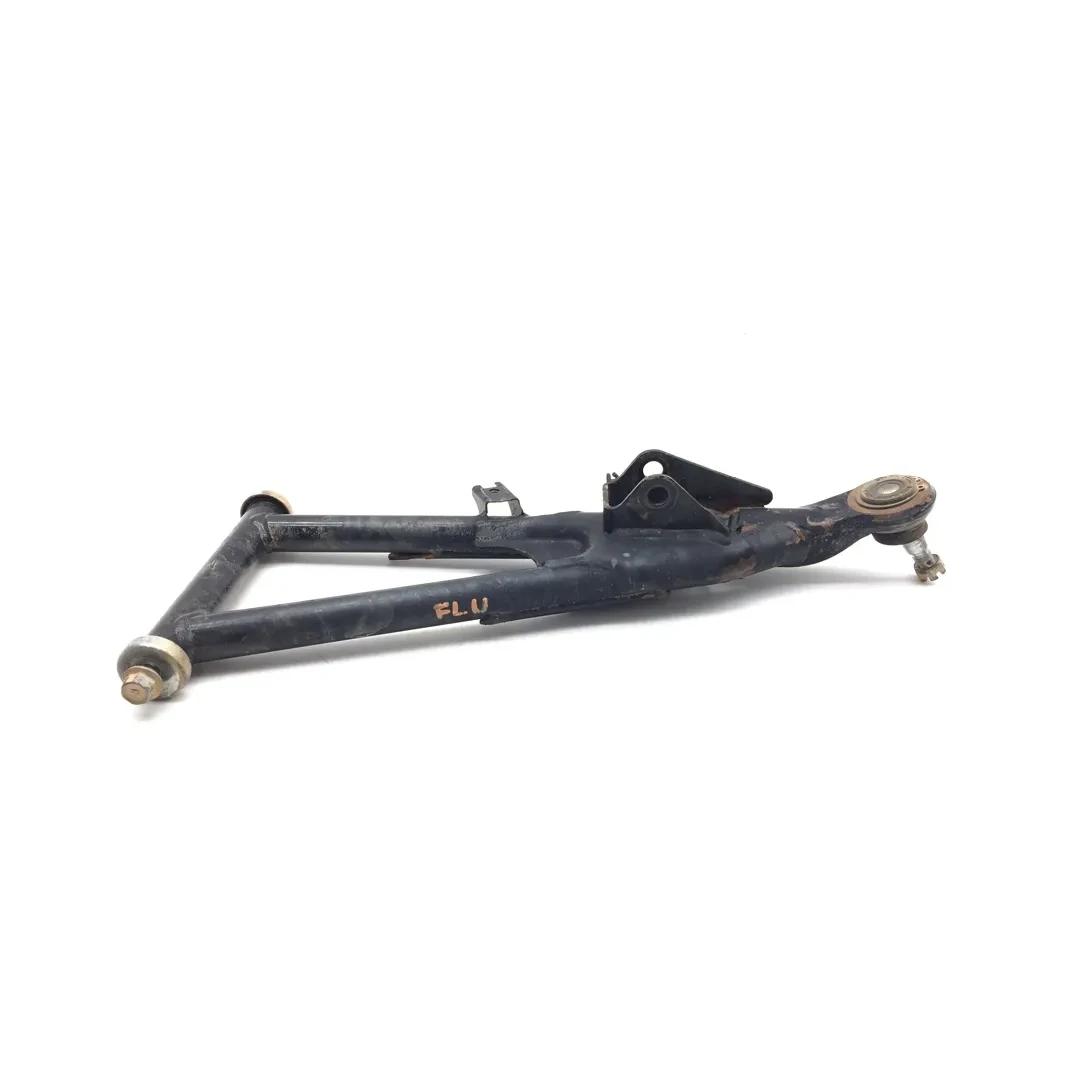

Other repair parts cover brake calipers and bolts, front and rear A-arms, shift motors and shafts, seat belt parts, and steering stems and columns.

Most-searched parts for the Honda Pioneer 1000

Part	Where to find it
Door	Shop door for the Honda Pioneer 1000

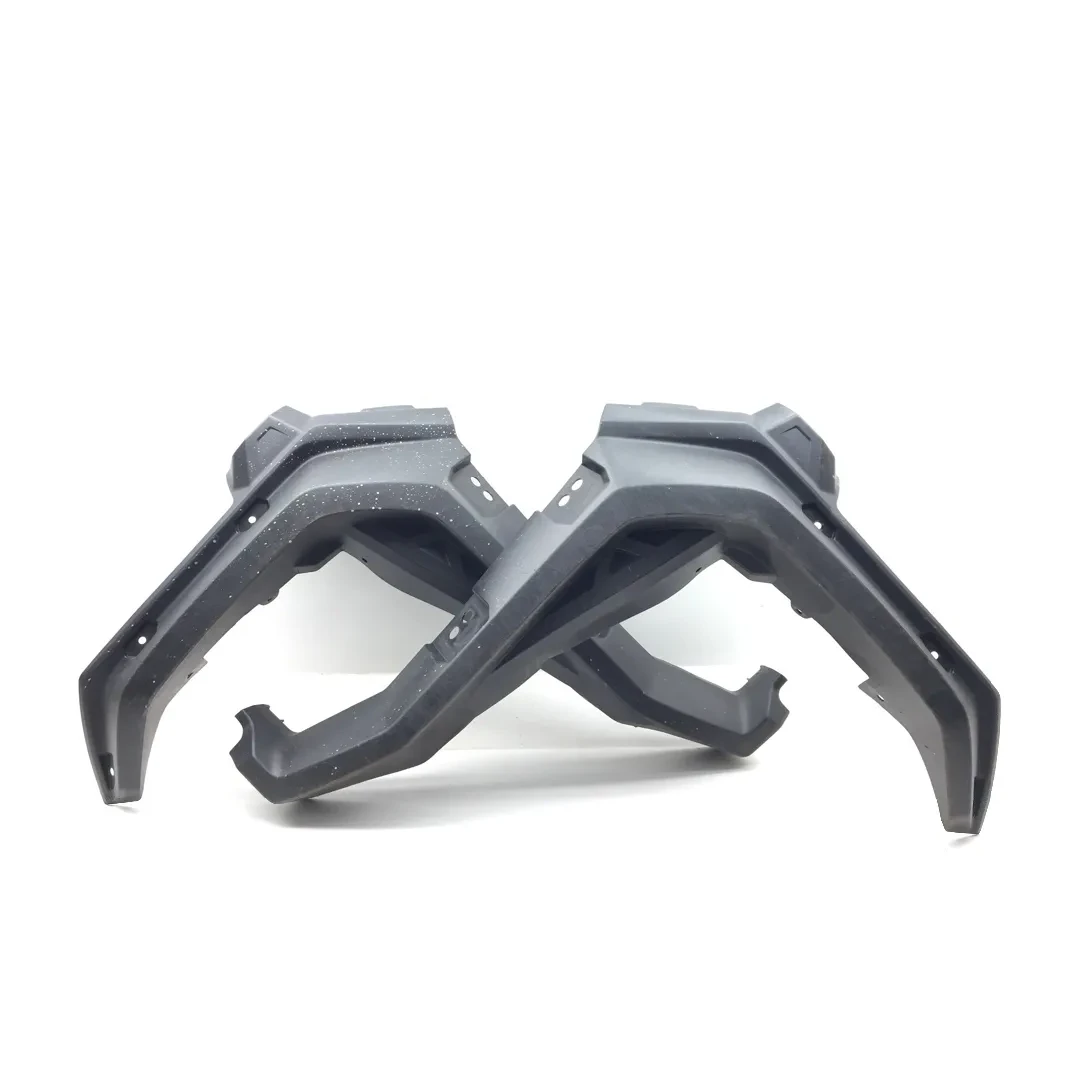

Fender Flares	Shop fender flares for the Honda Pioneer 1000
Axle	Shop axle for the Honda Pioneer 1000
Bed	Shop bed for the Honda Pioneer 1000
Hood	Shop hood for the Honda Pioneer 1000
Steering Wheel	Shop steering wheel for the Honda Pioneer 1000

Other Parts That Fit the Honda Pioneer 1000

If the part from stock #3423 is gone, check Honda Pioneer 1000 used parts from other side by sides PirateMX dismantled, including body, drivetrain, suspension, steering and brake components.

New parts made to fit offer another route.

OEM Numbers and Fitment for Pioneer 1000 4x4 Parts

The frame, transmission gear set and bed assembly from stock #3423 carry OEM references, so use the number on the part removed from your side by side to compare components. Then compare your machine details with the fitment on that part's page before ordering; cross-model fitment from this teardown is part-specific, not a blanket match for every component.

Part	OEM number	Availability
Front Wheel Hub Spindle Castle Nuts	90304-HM7-A10	In stock from this machine

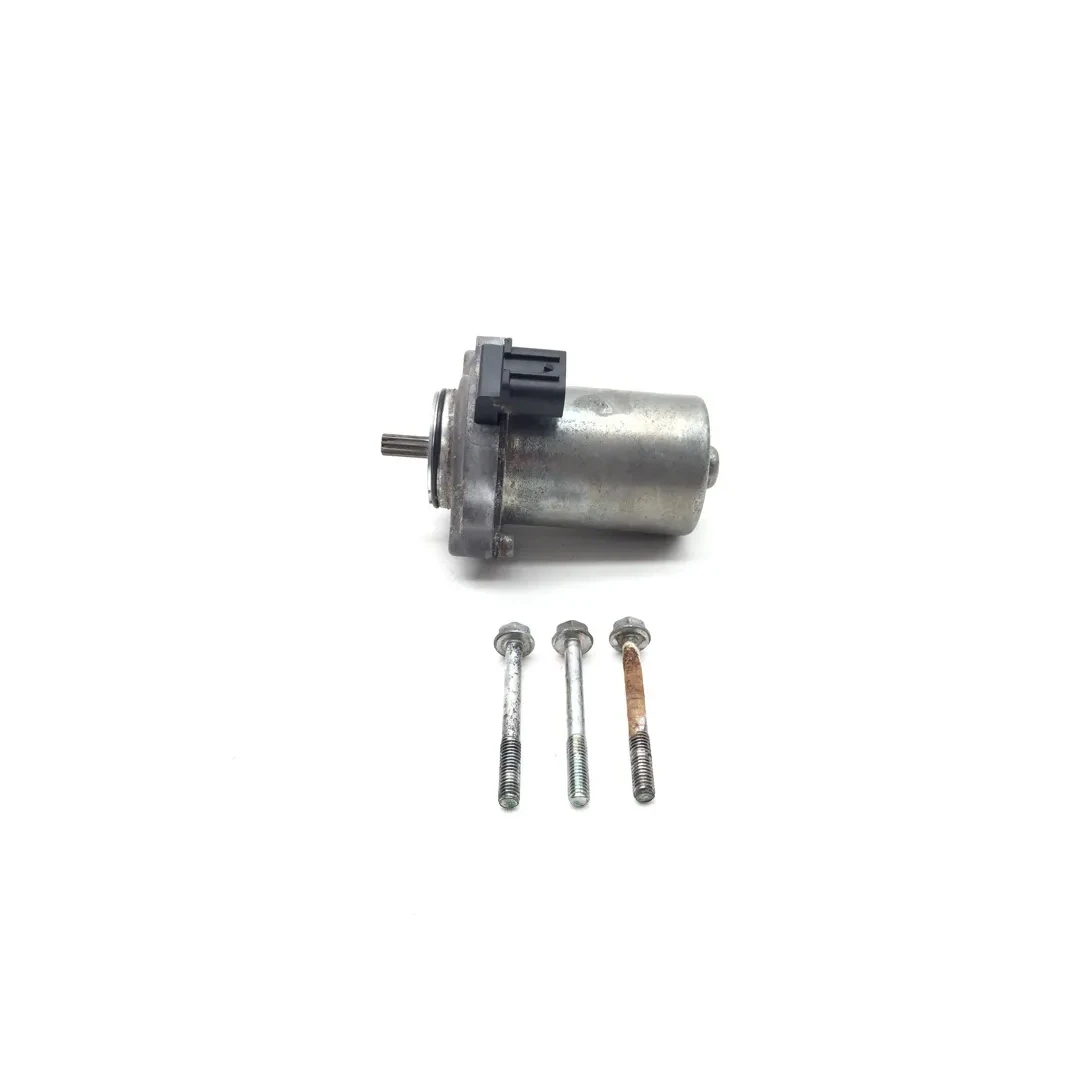

Shift Motors	31300-HP5-601	In stock from this machine

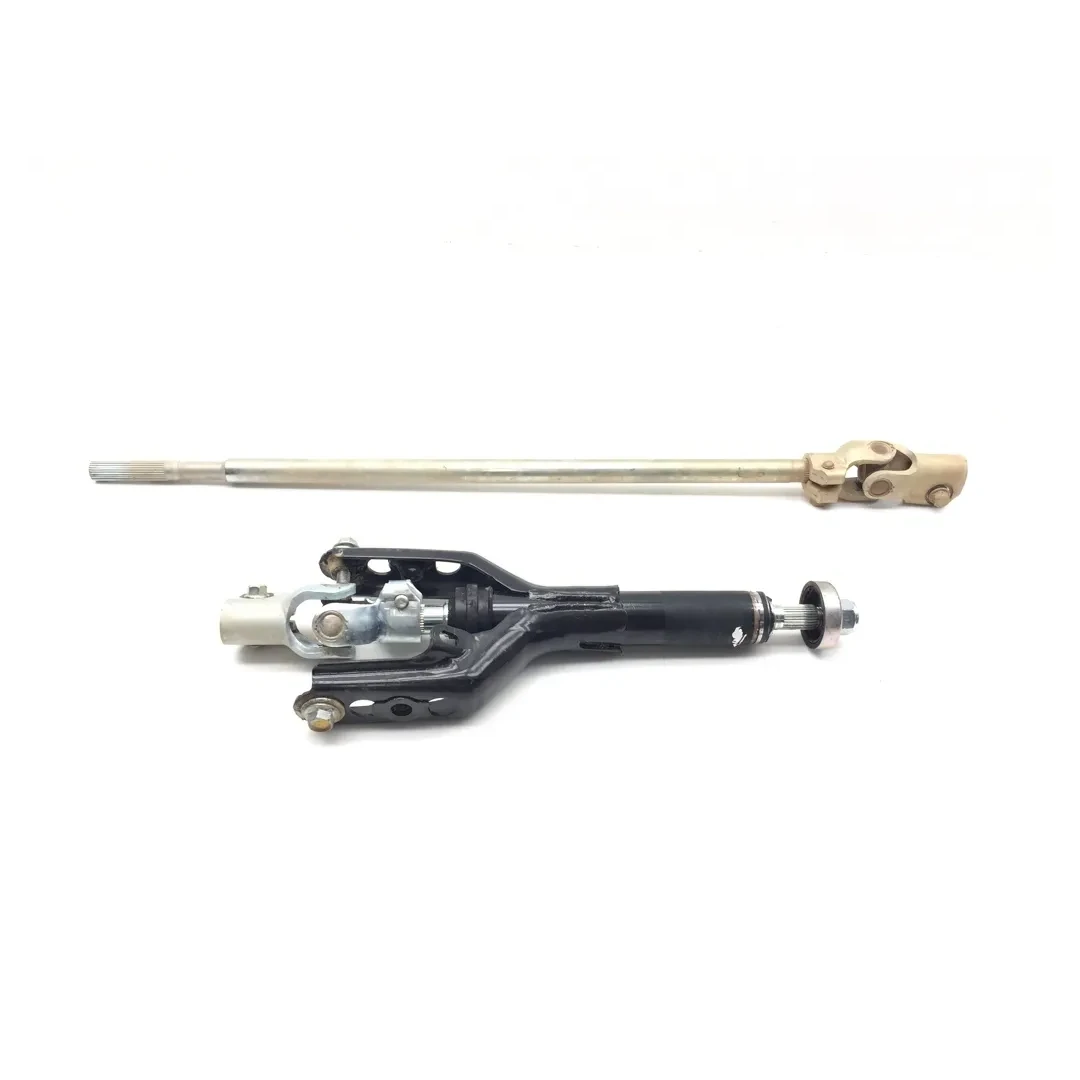

Steering Shaft Column	53323-SW5-003	In stock from this machine
Gas Fuel Tank Pump	16700-HL3-A02	In stock from this machine

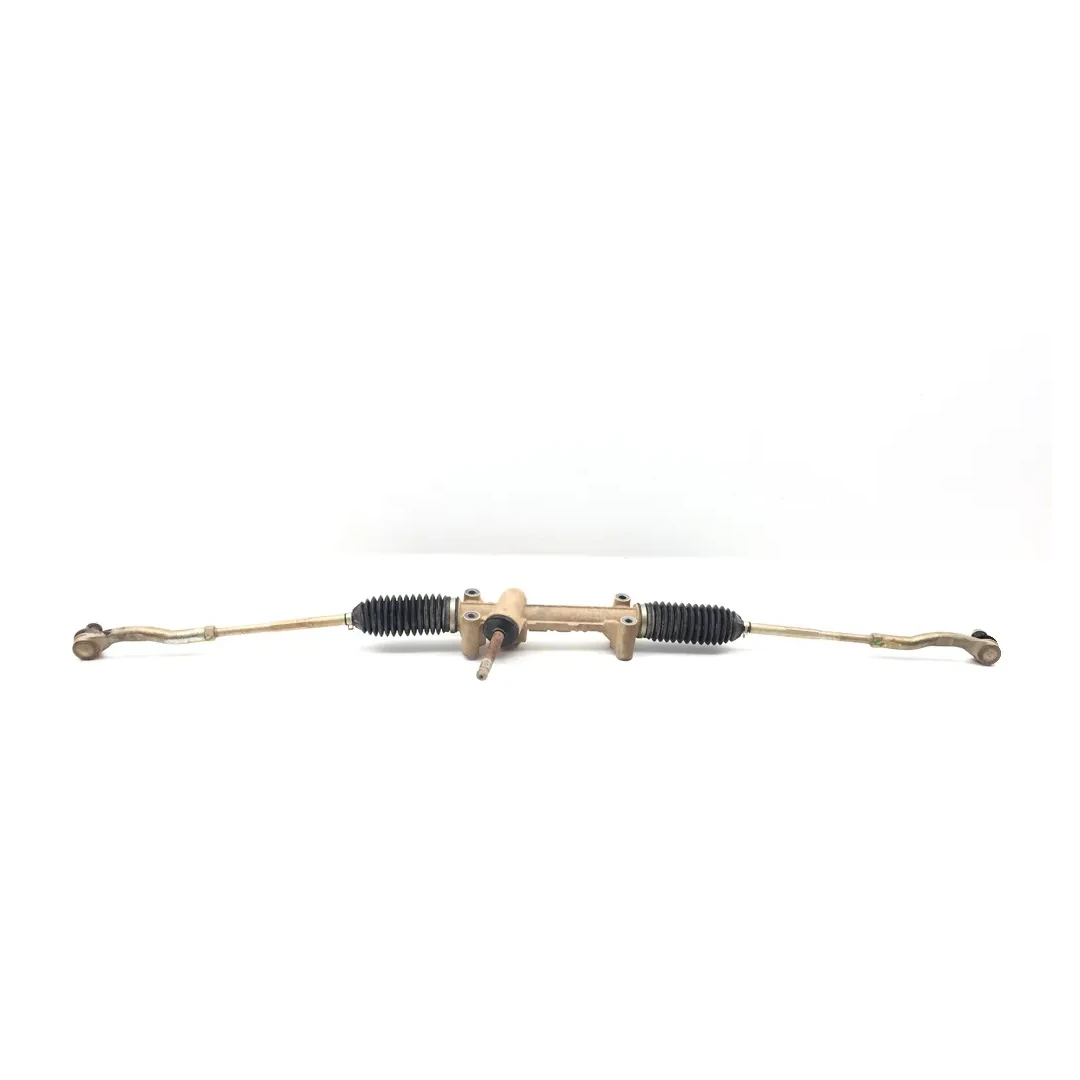

Steering Rack and Pinion	53010-HL4-A01	In stock from this machine

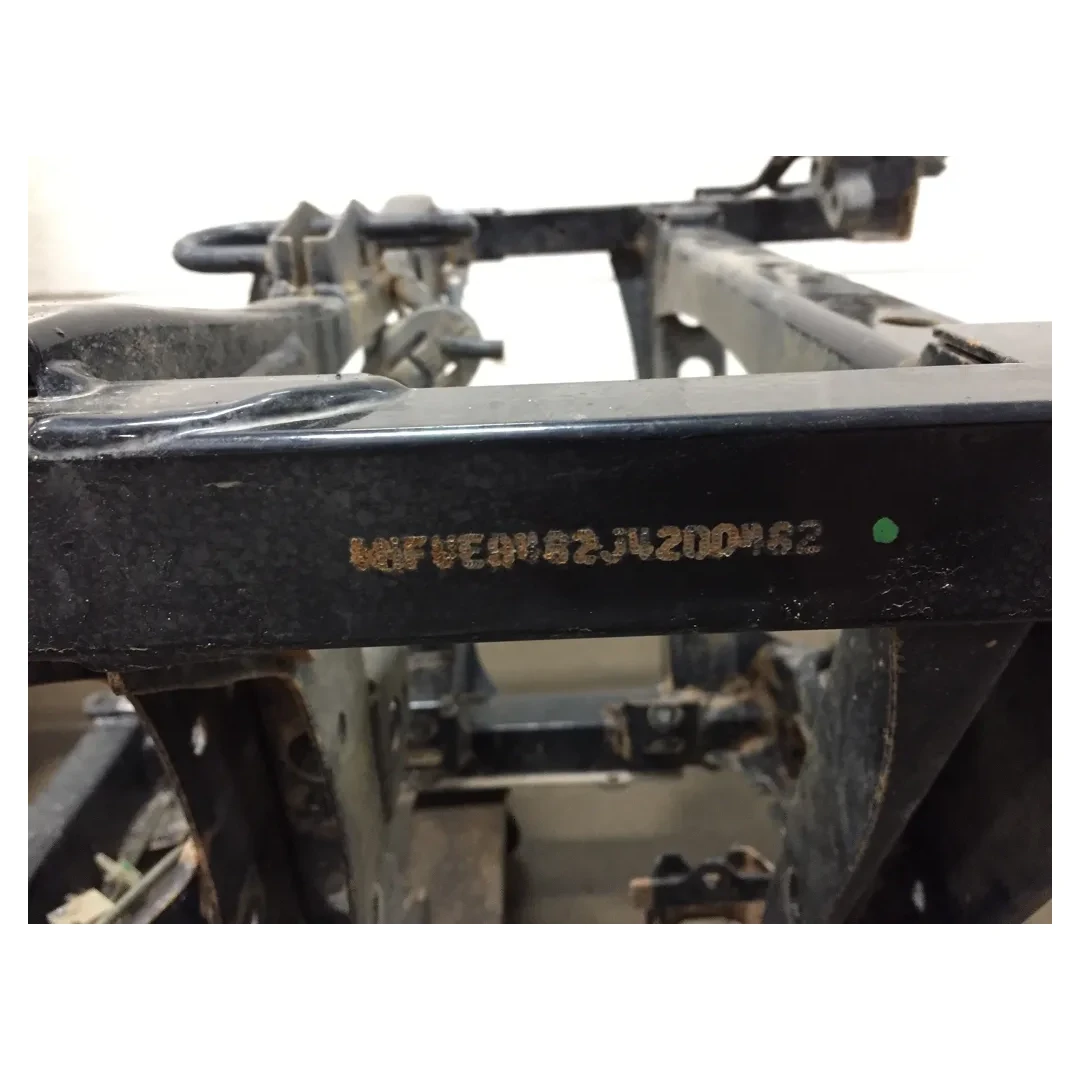

Frame Chassis	50370-HL4-A00	In stock from this machine

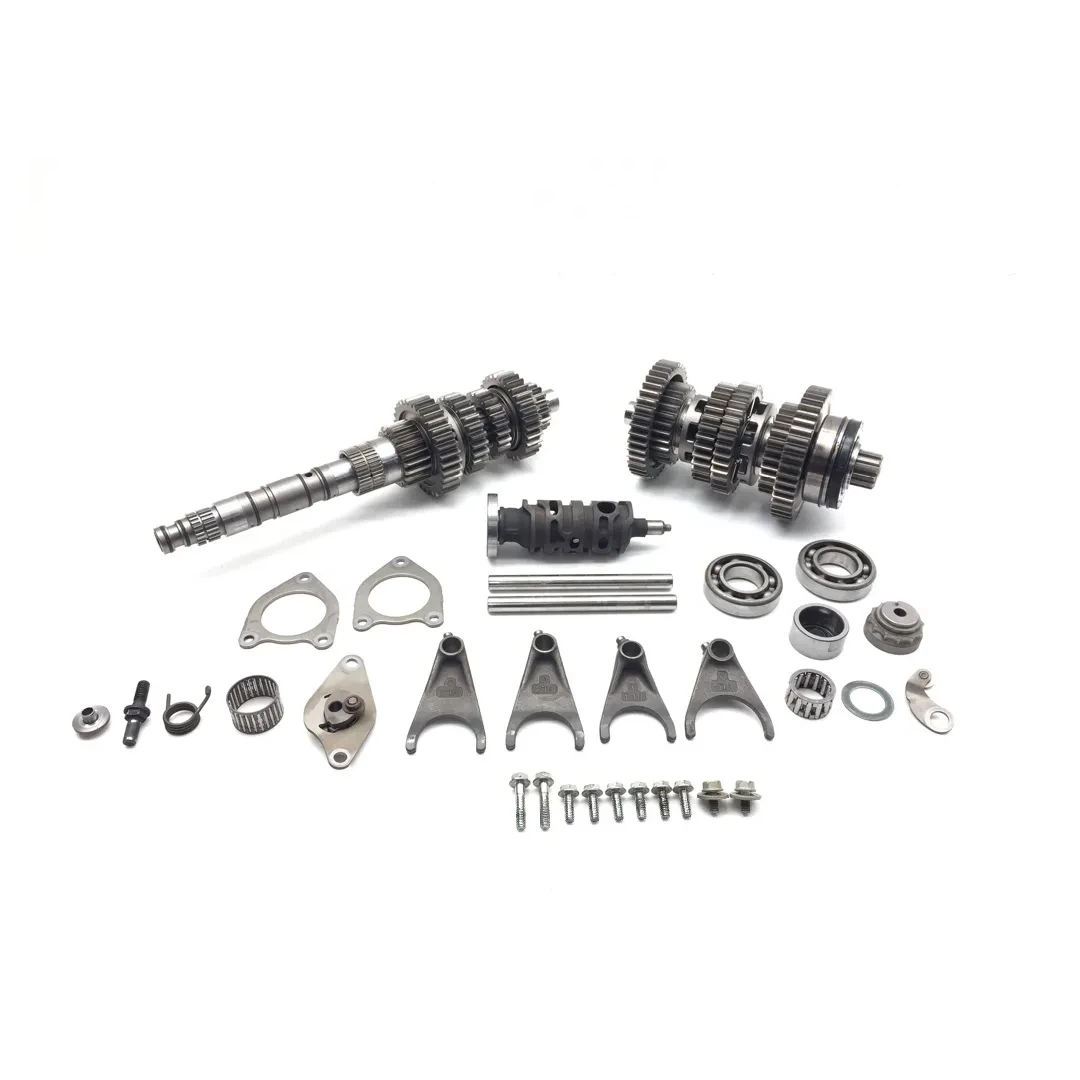

Transmission Gear Set Complete	23210-HL4-000	In stock from this machine

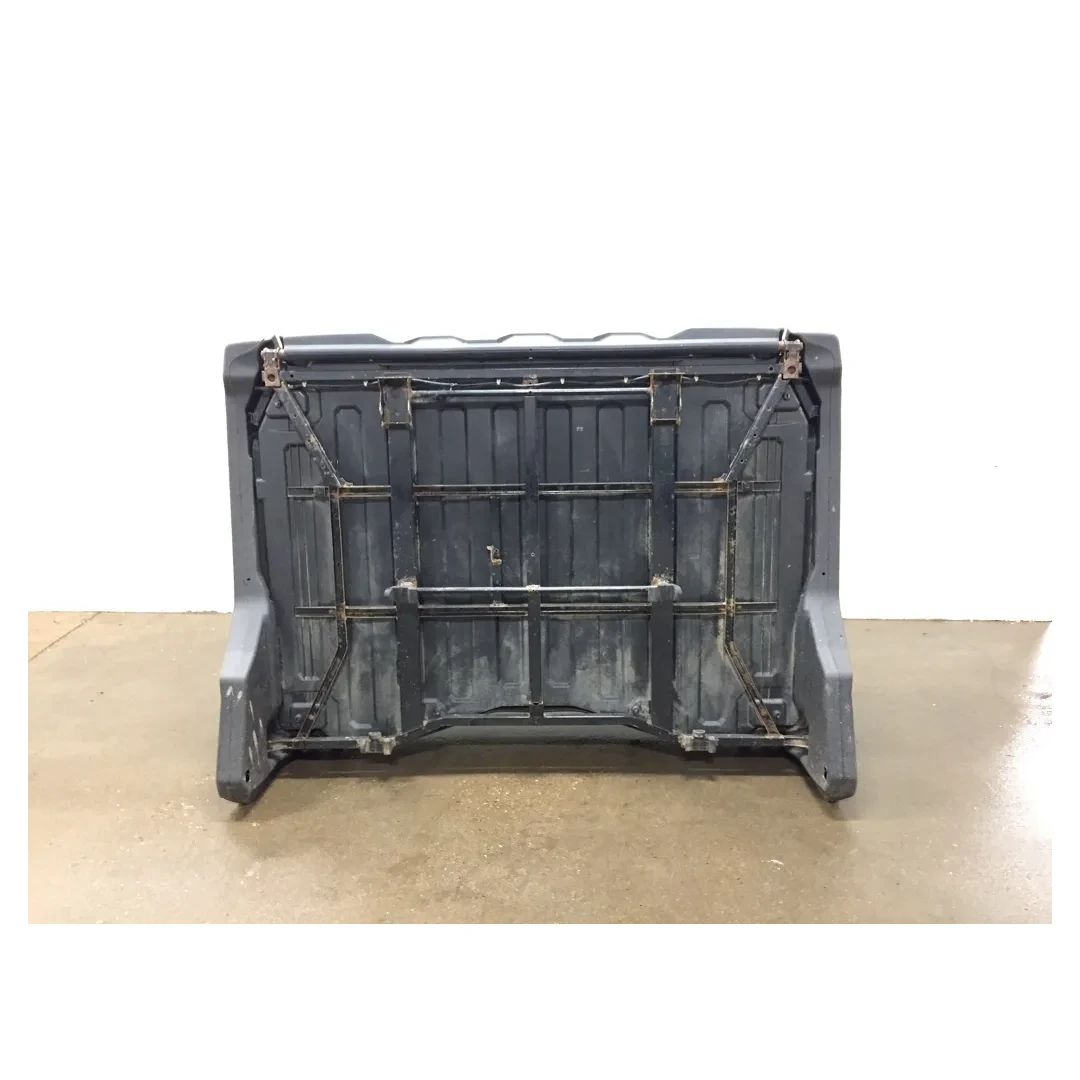

Complete Bed Assembly	81500-HL4-A50	In stock from this machine

Also listed to fit	Years
Honda Pioneer 1000 5	2016-2025
Honda Pioneer 1000 6	2024-2025
Honda Talon 1000X 4	2020-2025
Honda Talon 1000X	2019-2025
Honda Talon 1000R	2019-2025

Frequently asked questions

What major parts came off this 2018 Honda Pioneer 1000 4x4 SXS1000M3?

The major pieces include the frame chassis, complete transmission gear set, complete bed assembly, rear differential, front differential ring gear and pinion, and steering rack and pinion. These are used parts removed from the 2018 Honda Pioneer 1000 4x4 SXS1000M3 identified as stock #3423.

Which OEM numbers are listed for the frame, transmission gear set, and complete bed assembly?

The frame chassis carries OEM number 50370-HL4-A00. The complete transmission gear set carries 23210-HL4-000, 23220-HL4-000 and 23231-HL4-000, while the complete bed assembly carries 81500-HL4-A50, 81507-HL4-A50 and 81530-HL4-A50ZA. Compare every number on your original part before ordering.

Are parts from this 2018 Honda Pioneer 1000 4x4 also listed to fit Pioneer 1000-5, Pioneer 1000-6, or Talon models?

Yes, individual parts are also listed for the Pioneer 1000-5 from 2016-2025, Pioneer 1000-6 from 2024-2025, Talon 1000X-4 from 2020-2025, and Talon 1000X and 1000R from 2019-2025. That fitment is part-specific, not a match for everything from this SxS. Check fitment for your exact year, make and model before you order.

Didn't find what you need from Stock #3423?

Browse all Honda parts, or see every Honda Pioneer 1000 4x4 part from our other donor machines, and our new Honda Pioneer 1000 4x4 parts.

Check the year, make and model on each listing before you order.

Can't find it? Request a part and tell us exactly what you are looking for.
