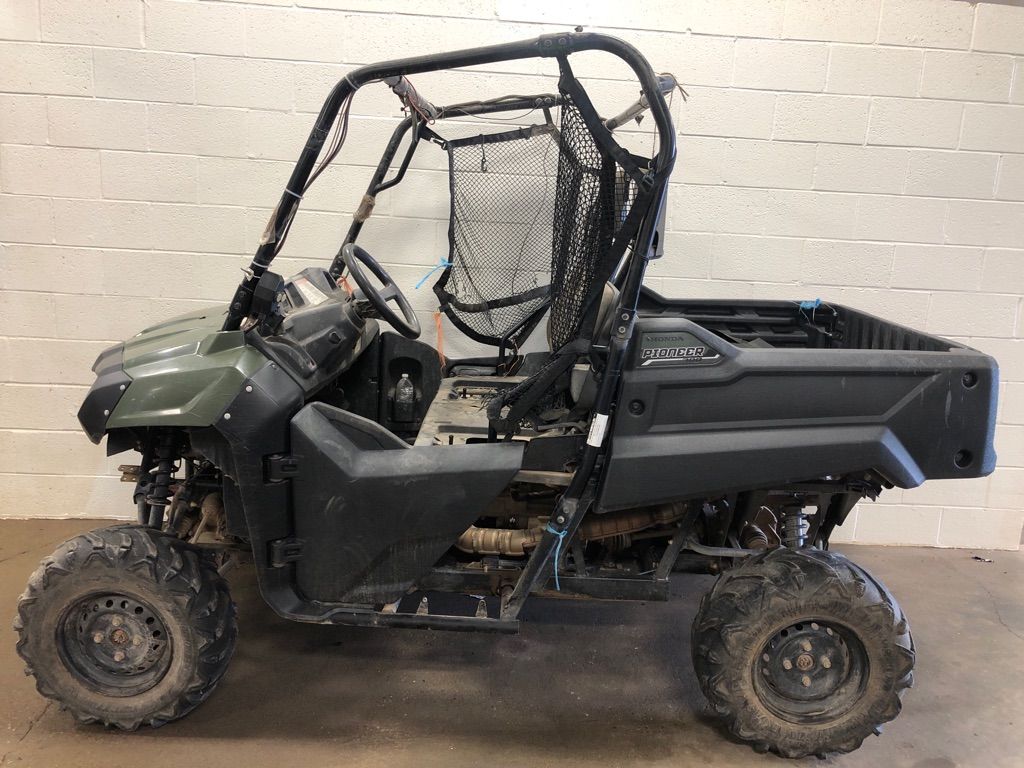

2015 Honda Pioneer 700 4x4 SXS700M2 Used Parts Teardown, Stock #3429

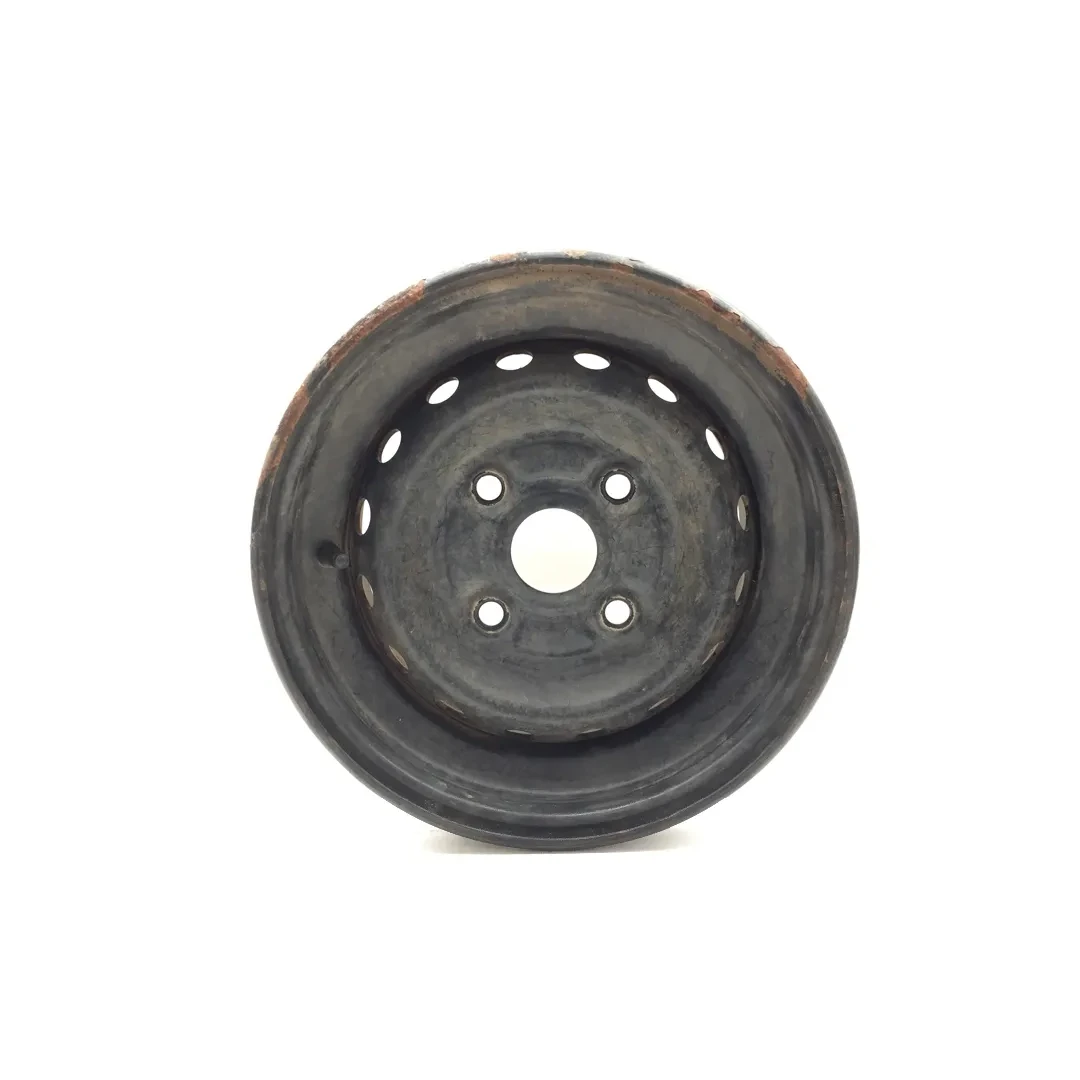

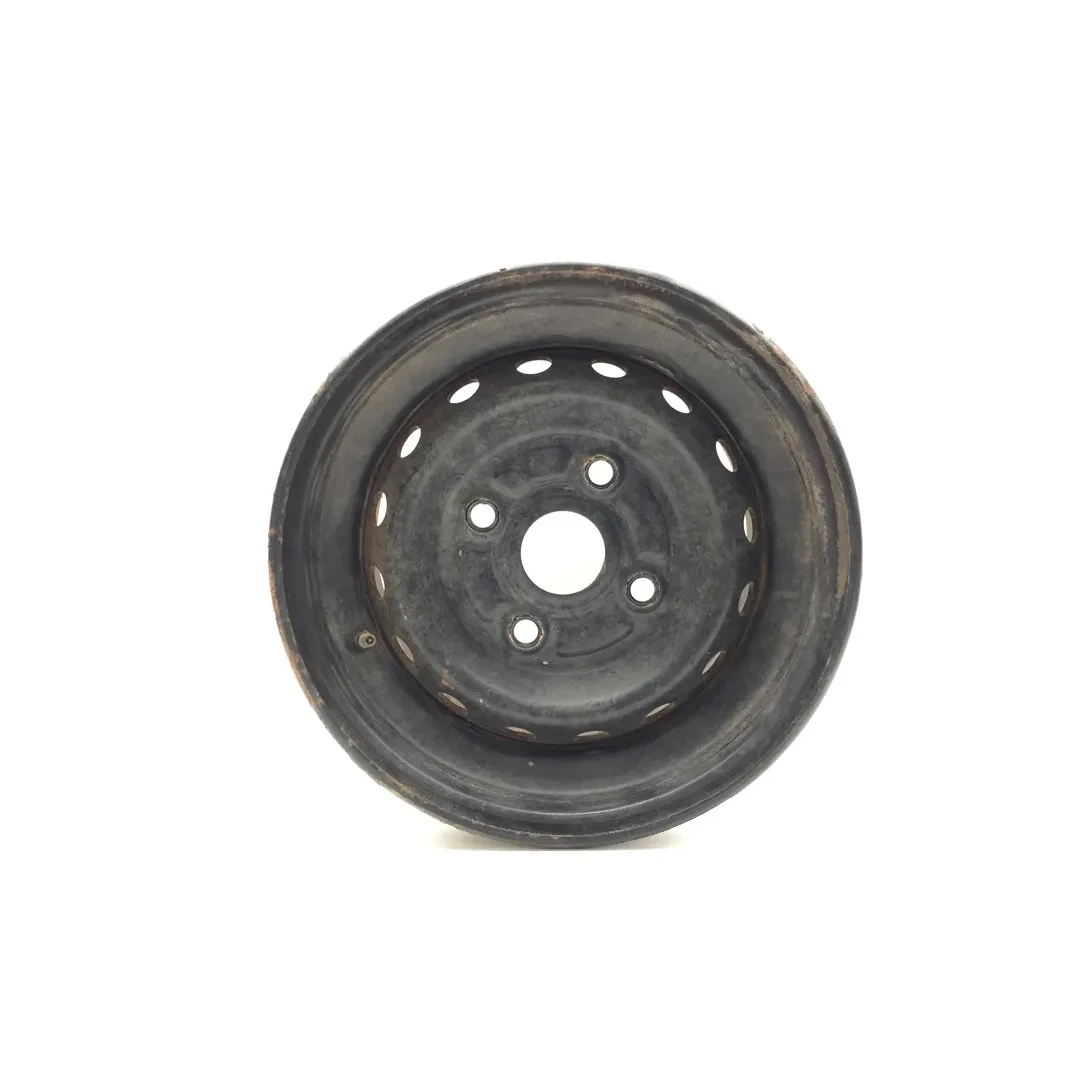

PirateMX dismantled this 2015 Honda Pioneer 700 4x4 SXS700M2 for used parts, producing 111 parts that include body, drivetrain, suspension, steering, brake and wheel pieces.

Browse the available parts below for major assemblies and smaller repair pieces from this side by side.

Available parts from this 2015 Honda Pioneer 700 4x4

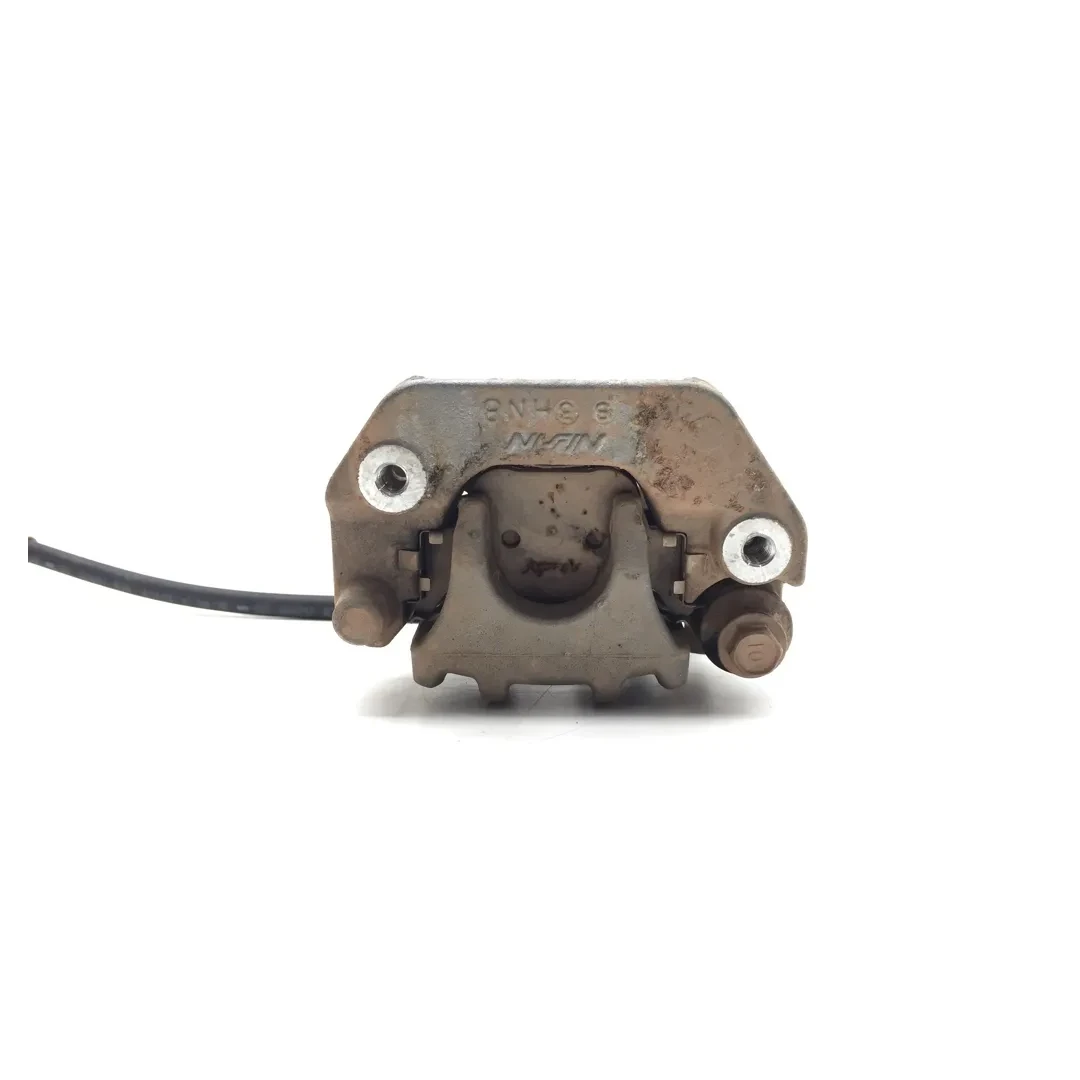

Fender flares, an axle, a brake caliper, the roll cage and the complete bed assembly are among the used pieces from this Honda side by side, stock #3429, which came in with 3,558 miles.

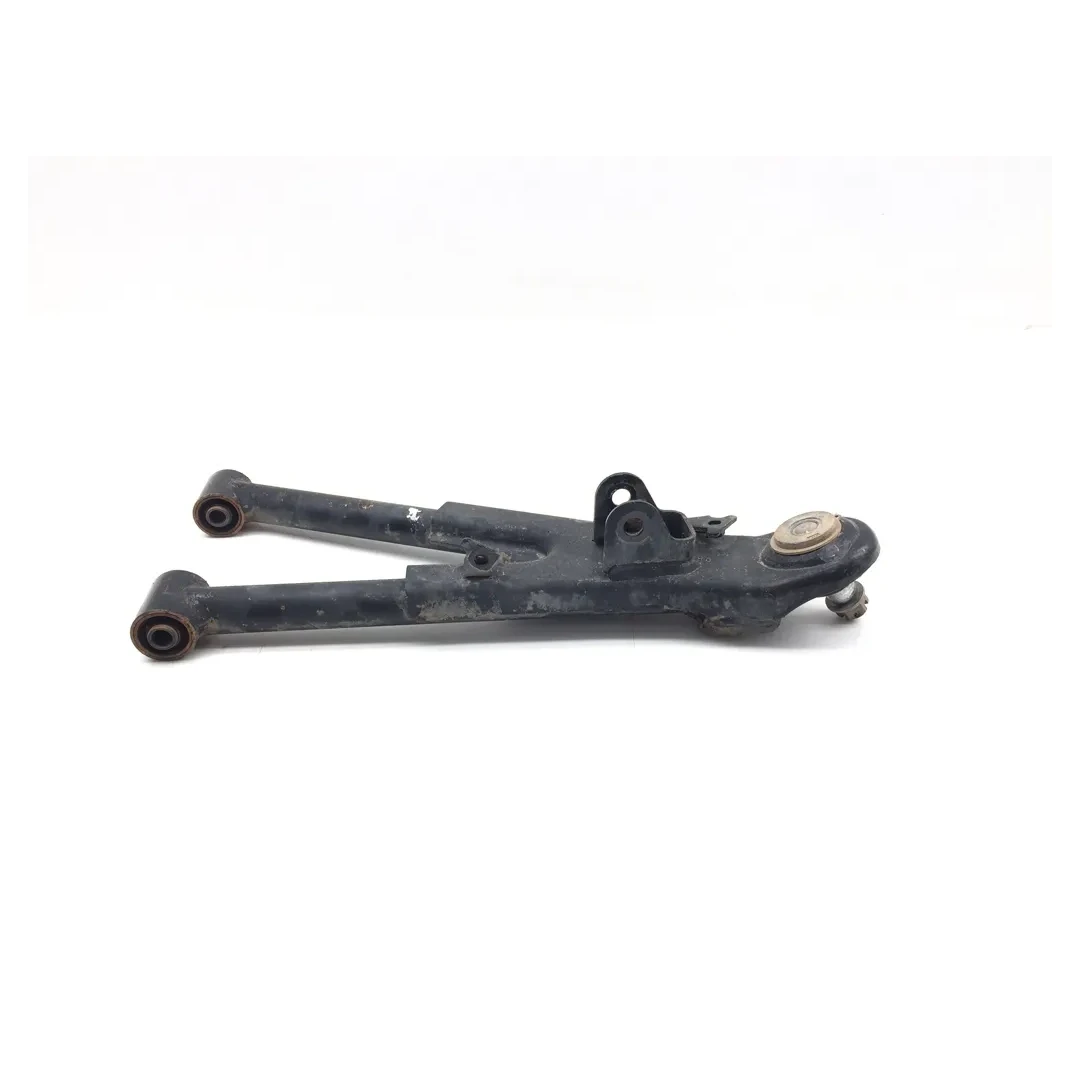

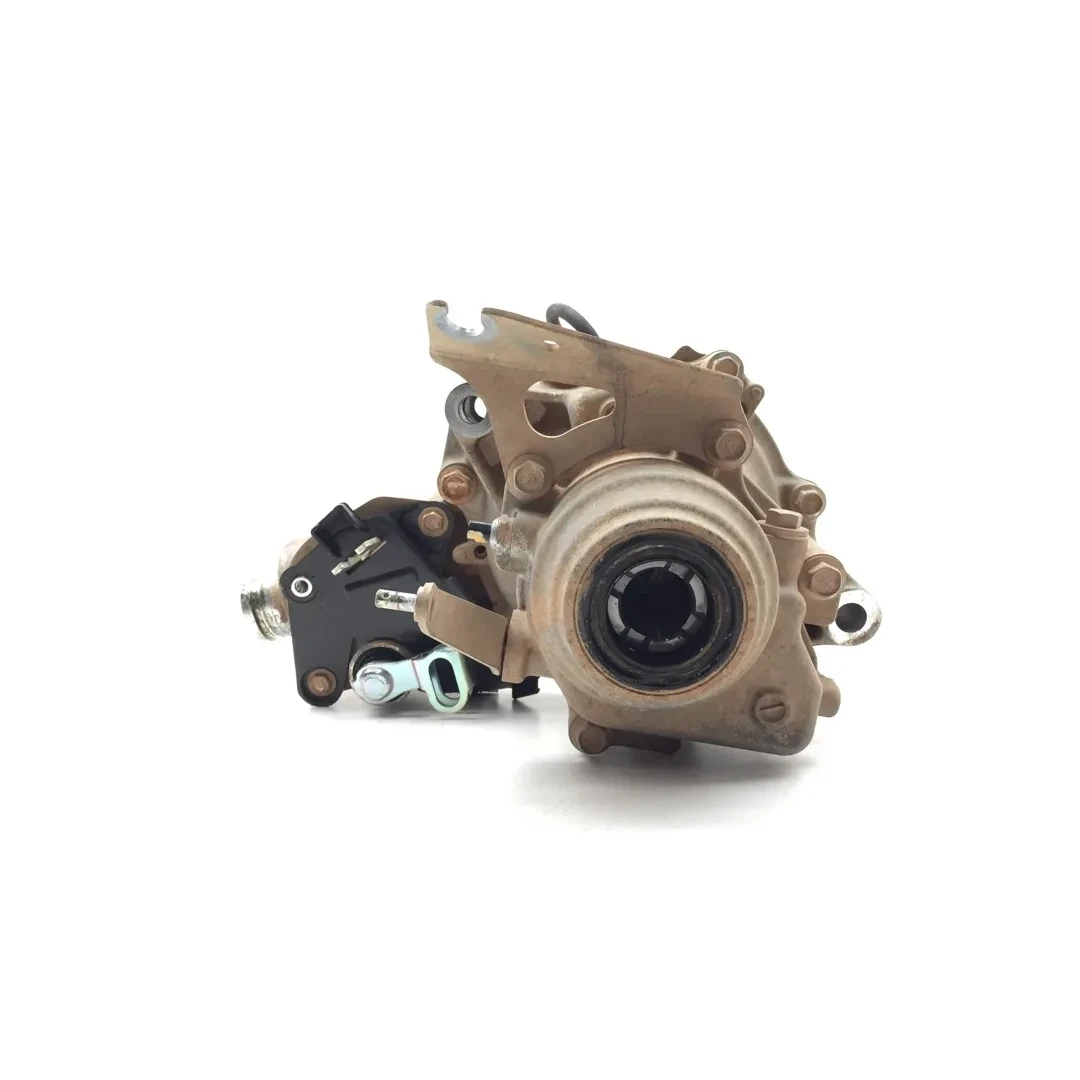

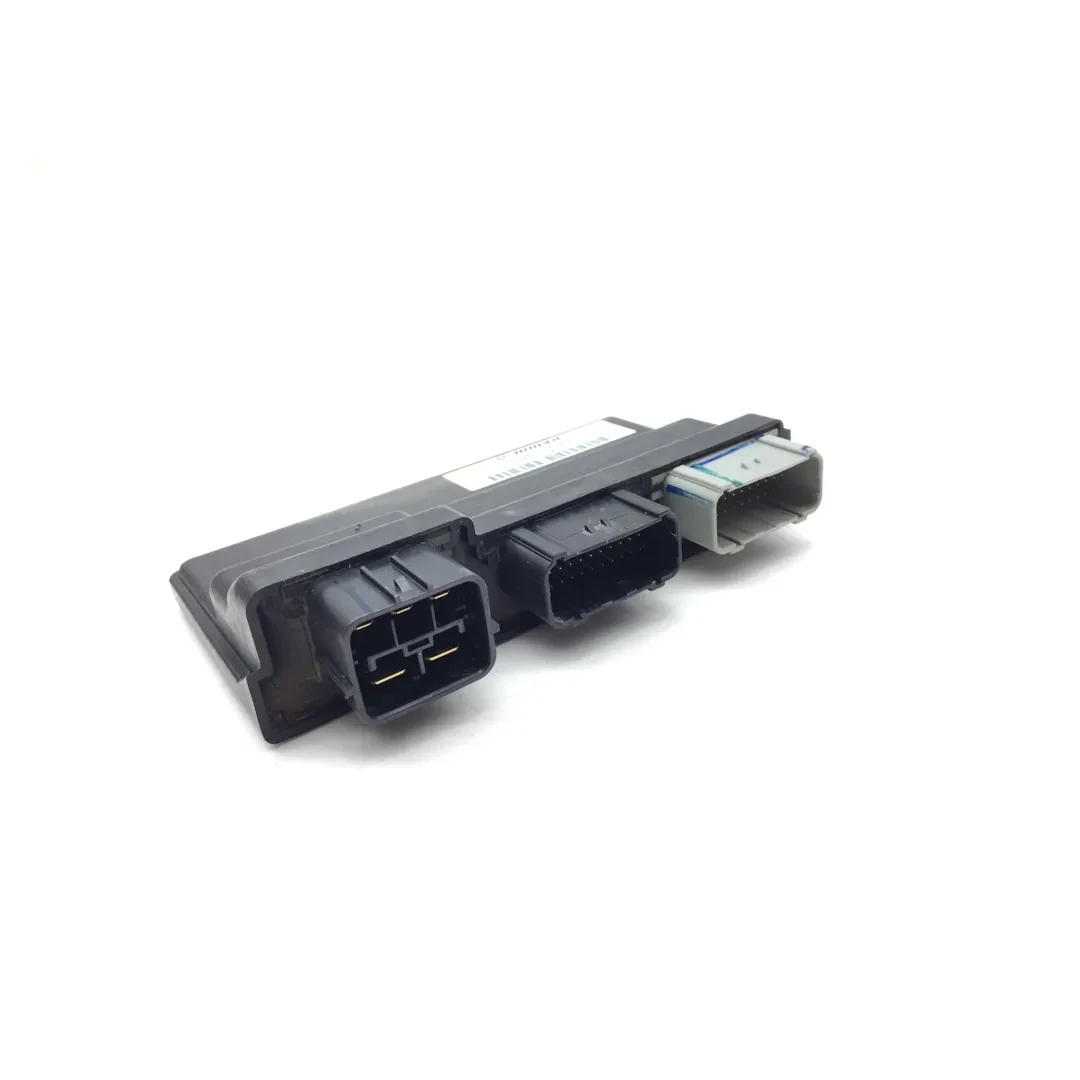

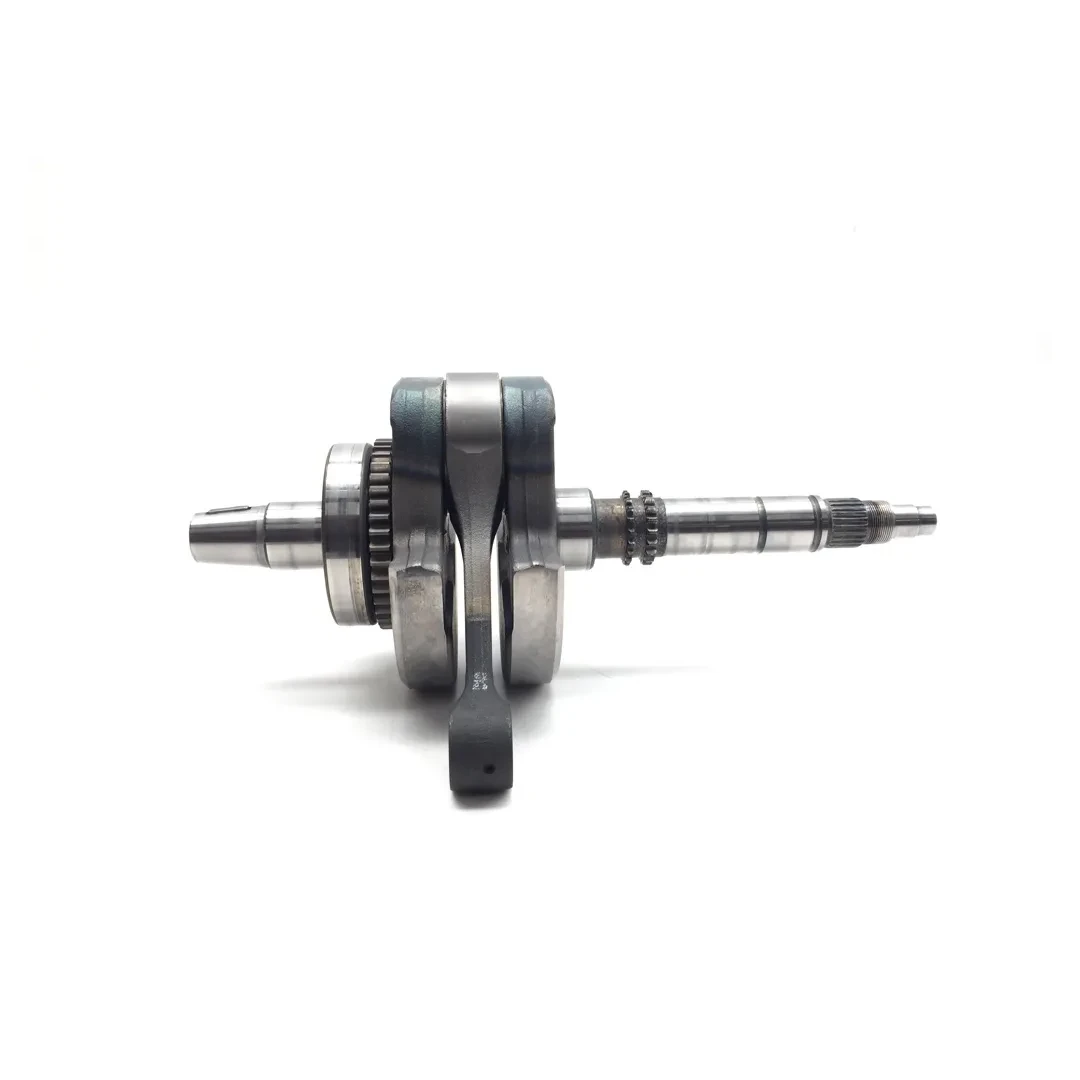

Other Pioneer 700 parts include the crankshaft, front differential ring gear and pinion, ignition ECU and front passenger upper A-arm.

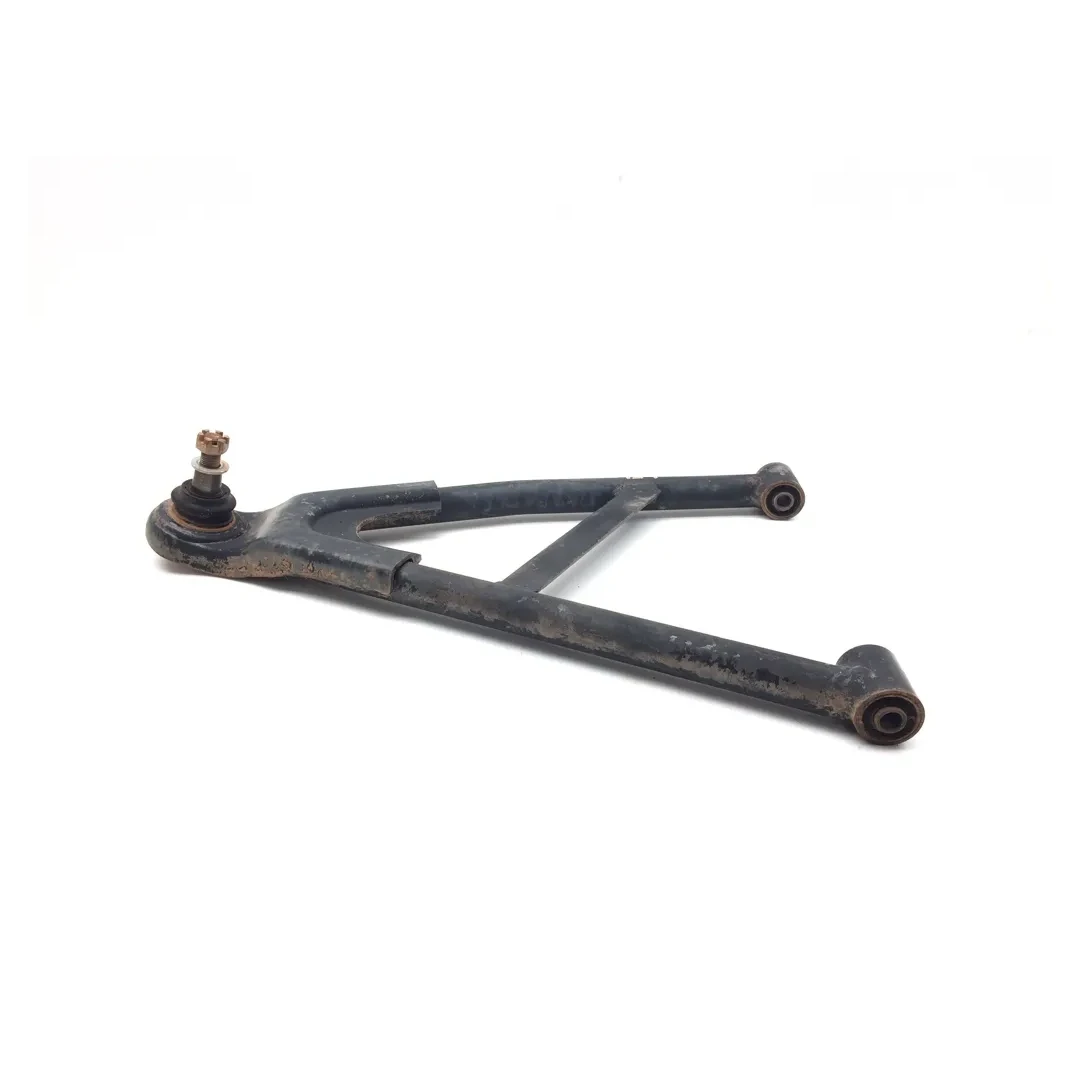

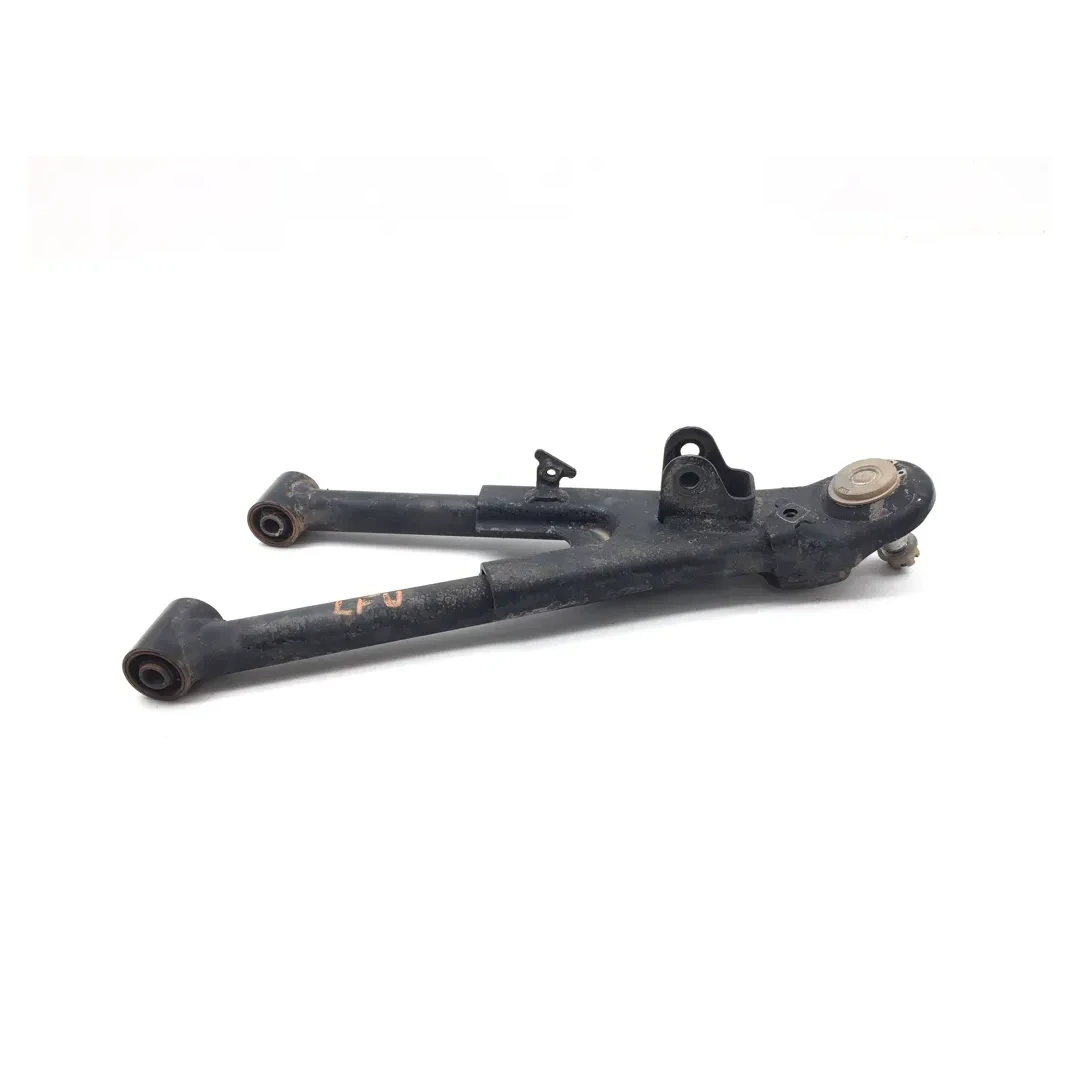

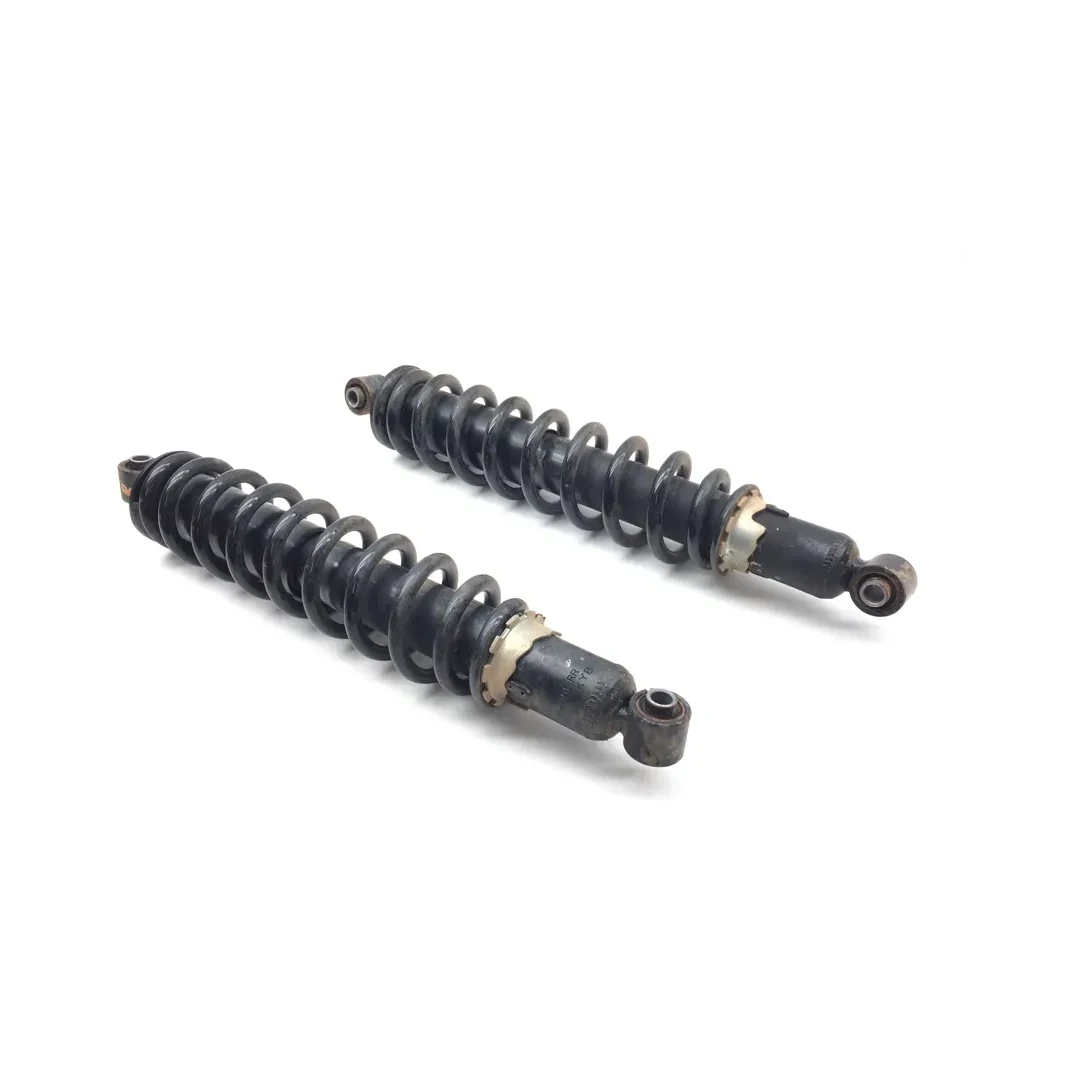

The machine also provided the front driver upper and lower A-arms, steering rack and pinion, and rear shocks.

Most-searched parts for the Honda Pioneer 700

Part	Where to find it

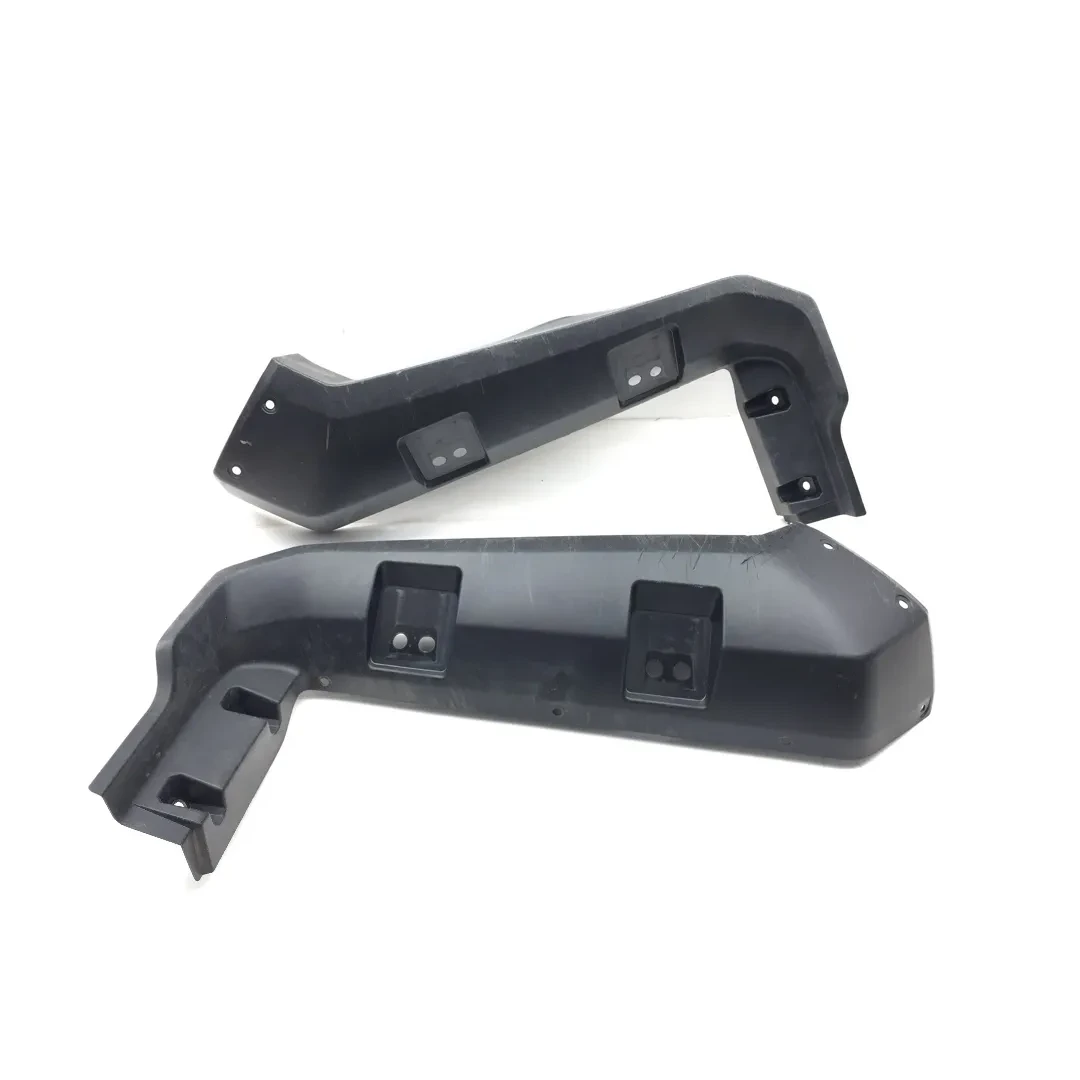

Fender Flares	Shop fender flares for the Honda Pioneer 700
Axle	Shop axle for the Honda Pioneer 700
Brake Caliper	Shop brake caliper for the Honda Pioneer 700

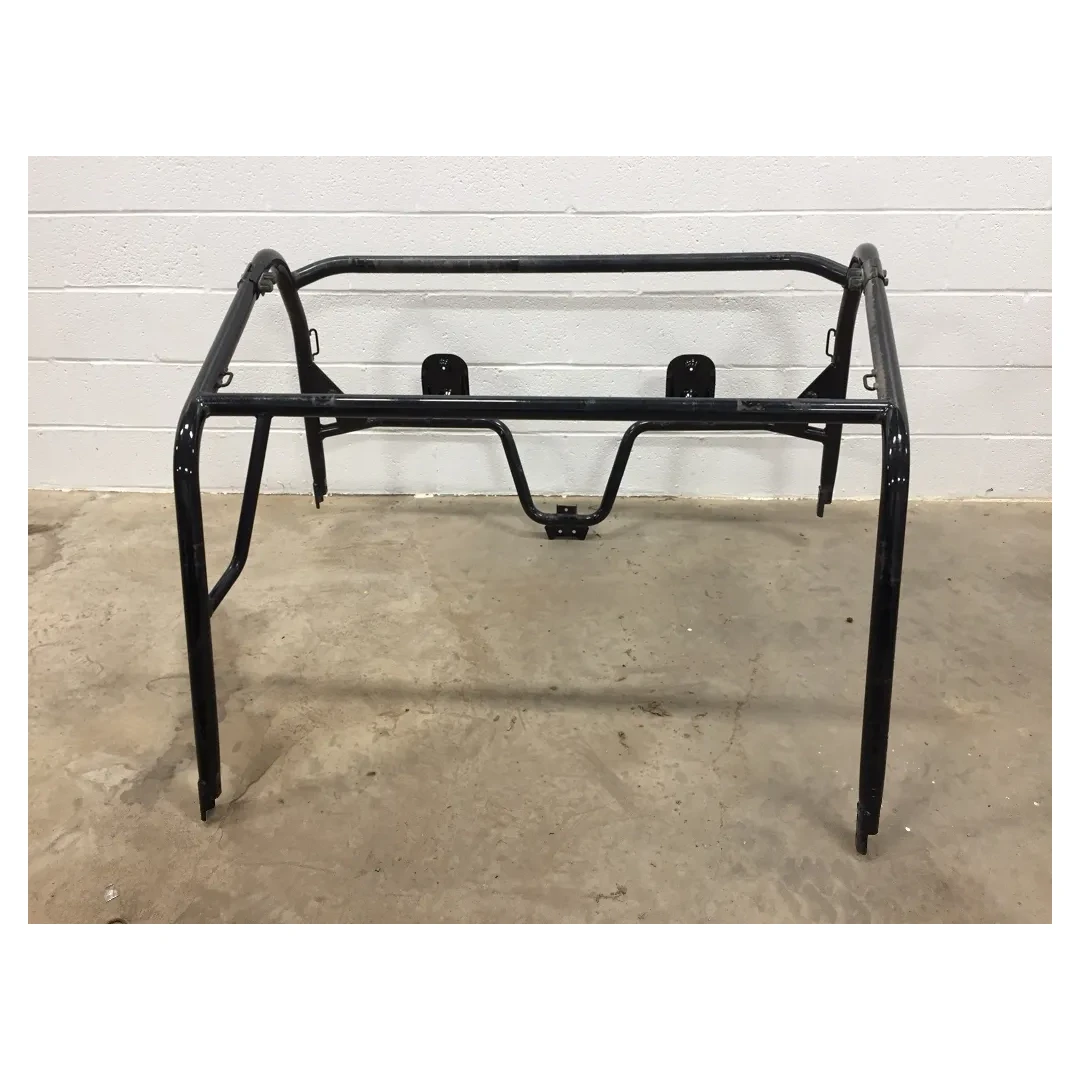

Roll Cage	Shop roll cage for the Honda Pioneer 700
Bed	Shop bed for the Honda Pioneer 700

Other parts that fit the Honda Pioneer 700

If stock #3429 no longer has the piece you need, check used Honda Pioneer 700 parts from other machines PirateMX took apart, along with new parts made to fit the model.

Common repair areas include front and rear A-arms, CV axles, shocks, brake calipers and wheels.

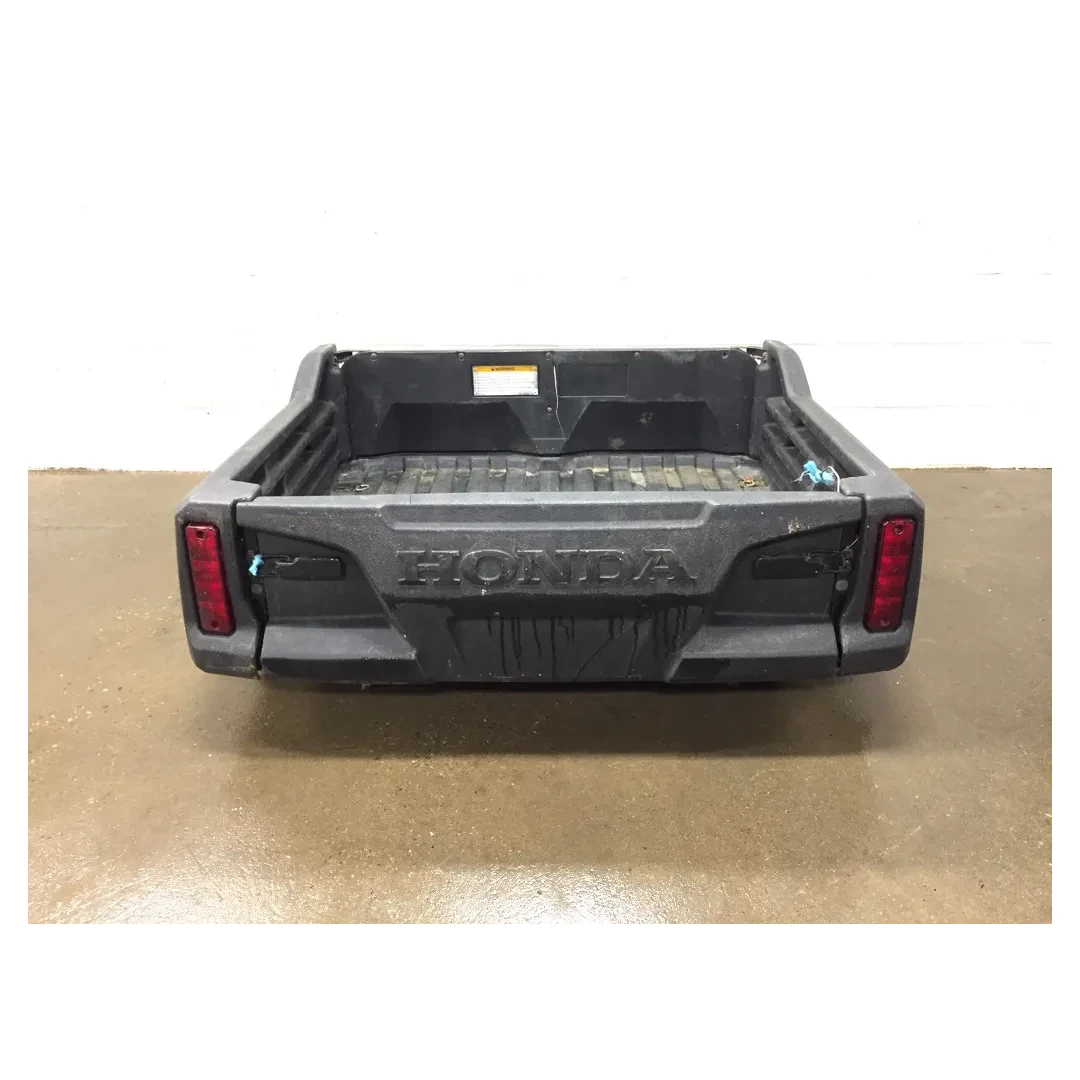

Condition note for this Honda Pioneer 700 4x4 bed

Complete bed assembly: it is cracked.

OEM numbers and fitment

Compare the OEM number on your old part with the number on the product page. Most parts from this machine include an OEM number.

Part	OEM number	Availability

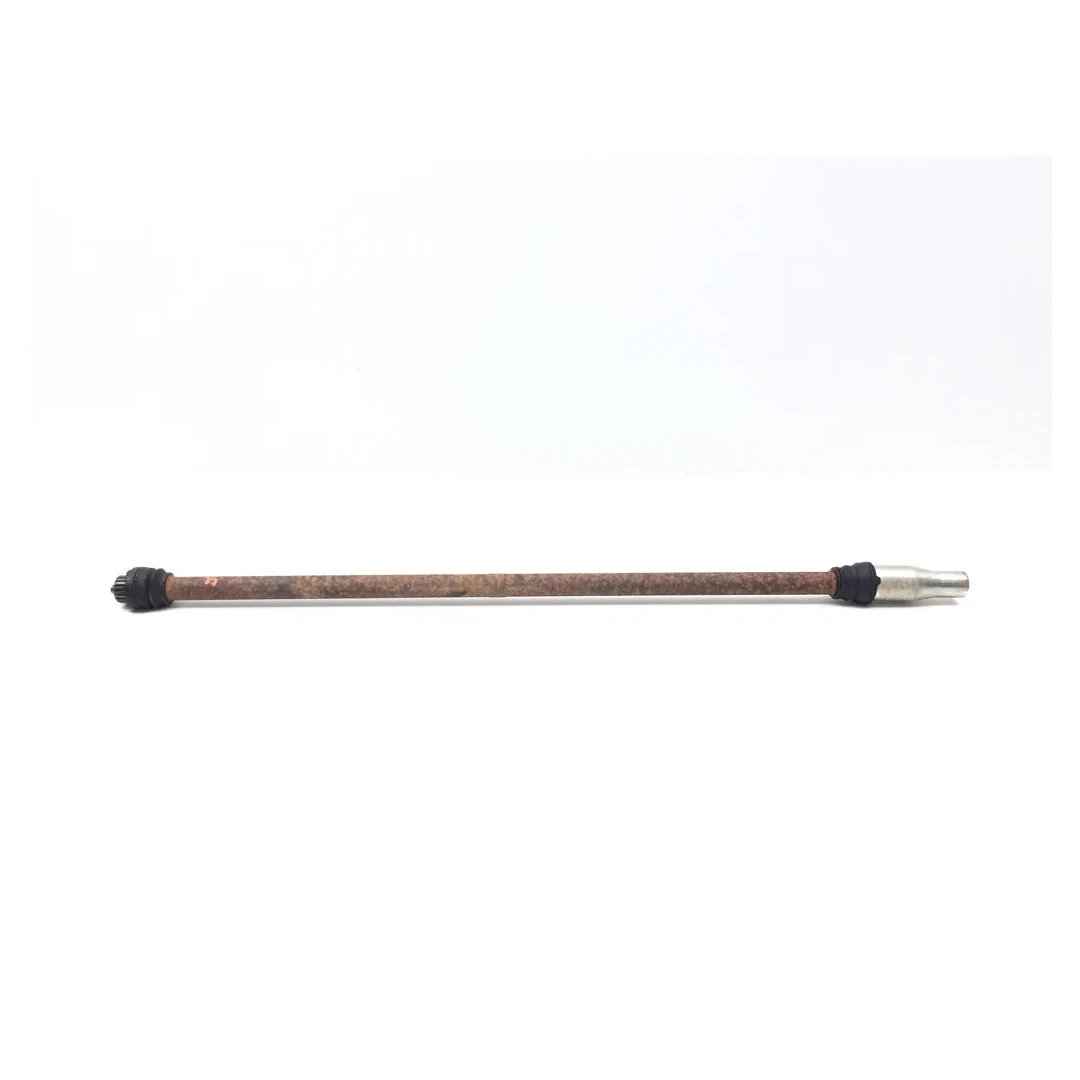

Front Drive Shaft	40300-HR3-A20	In stock from this machine
Gas Fuel Tank Pump	16700-HL3-A02	In stock from this machine

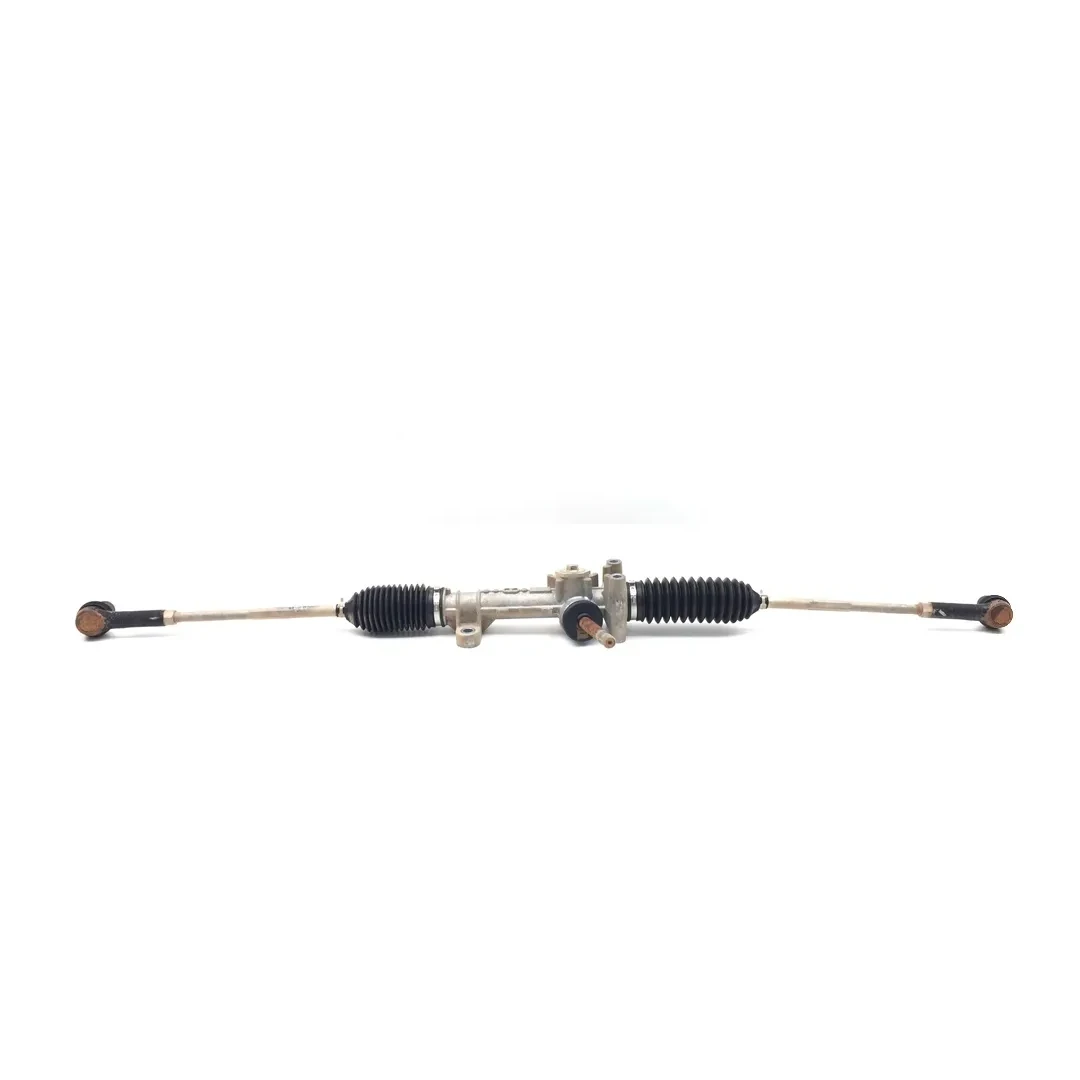

Steering Rack and Pinion	53540-S47-951	In stock from this machine

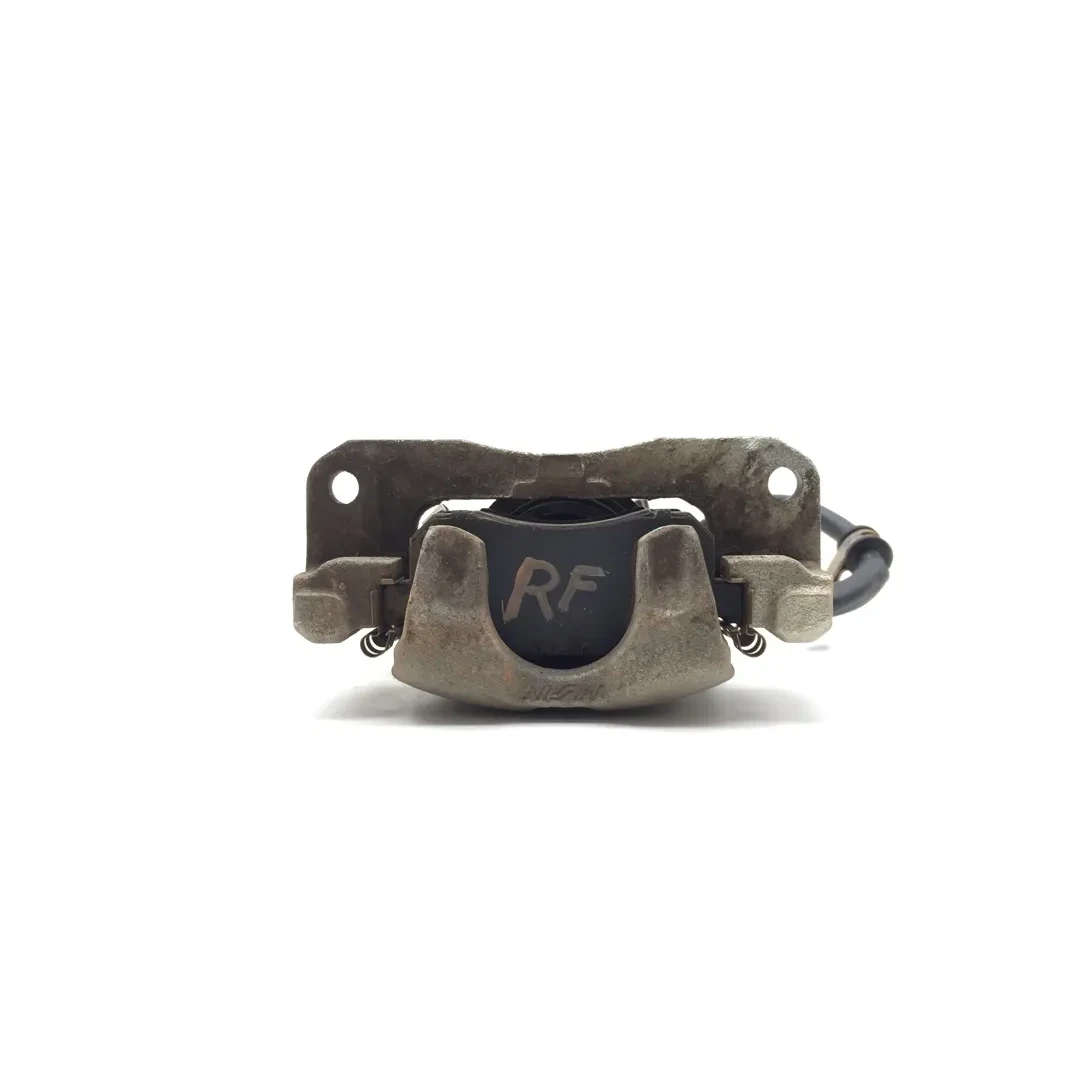

Right Passenger Front Brake Caliper	45018-S3A-013	In stock from this machine

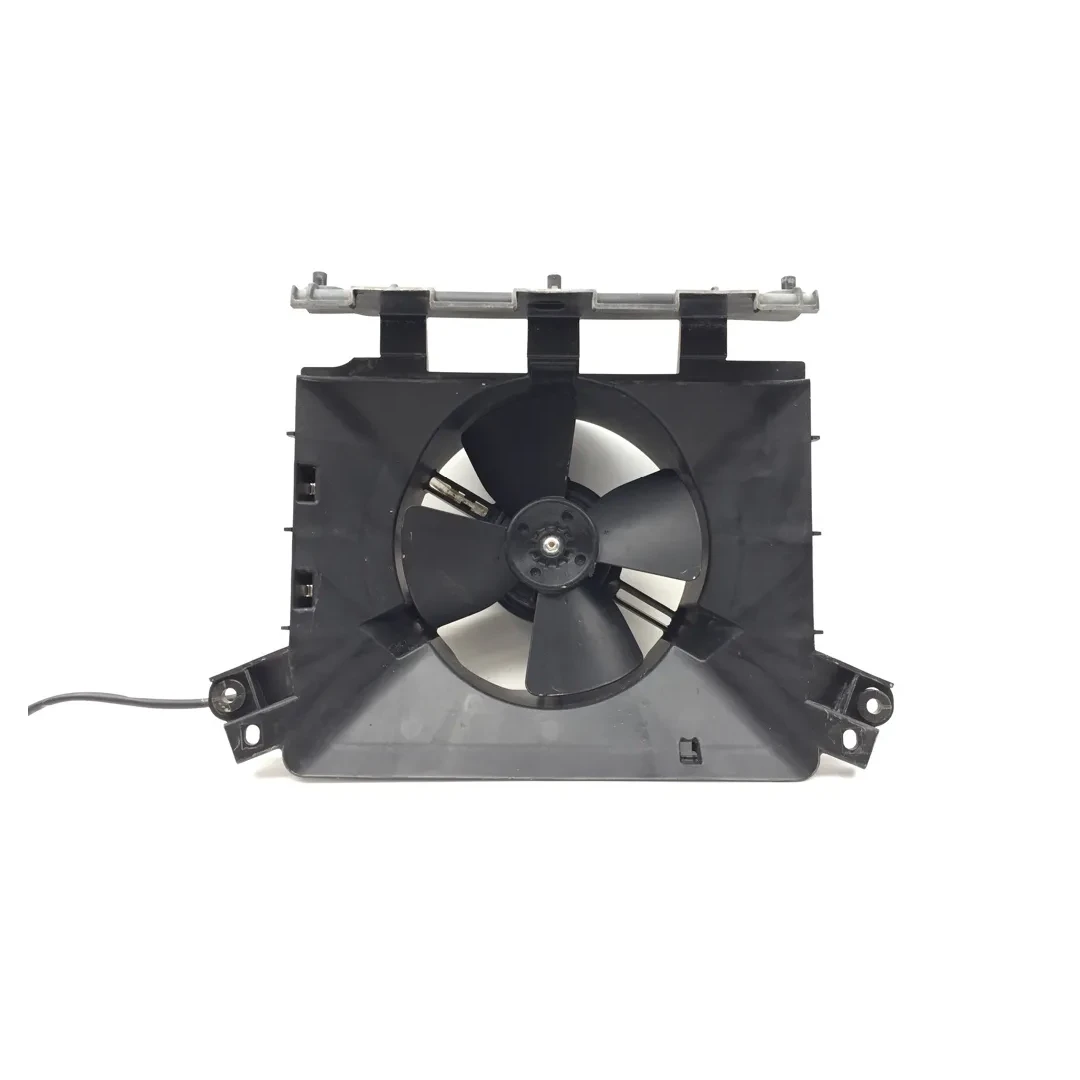

Engine Radiator Cooling Fan	19030-HL3-A01	In stock from this machine
Engine Timing Cam Chain Tensioner	14520-HN8-A61	In stock from this machine
Engine Radiator Overflow Tank	19101-RNA-A01	In stock from this machine
Engine Oil Drain Plug Bolt	95701-08016-00	In stock from this machine

Also listed to fit	Years
Honda Pioneer 700 4	2014-2025
Honda Pioneer 700 4x4	2026
Honda Pioneer 700 4 4x4	2026
Honda Pioneer 500	2015-2022
Honda Pioneer 520	2021-2025

Then confirm your exact year and model in that part's fitment chart, since an OEM number alone does not settle every fitment detail.

Frequently asked questions

What parts came off this 2015 Honda Pioneer 700 4x4 SXS700M2?

This 2015 Honda Pioneer 700 4x4 SXS700M2 teardown supplied used body, drivetrain, suspension, steering, brake and wheel parts, from larger assemblies down to smaller repair pieces. Read the note on each part's page before ordering; the complete bed assembly from this SxS is specifically noted as cracked. Check fitment for your exact year, make and model before you order.

How can I match an OEM number for a Honda Pioneer 700 part?

Compare the OEM number on your old Honda part with the OEM number in the table on this teardown page. A matching number is a useful check, but you still need to confirm your exact year, make and model in that part's fitment chart. If the page does not give the number or fitment detail you need, ask PirateMX before ordering.

What should I check if the part I need is not available from stock #3429?

Check used Honda Pioneer 700 parts from other PirateMX teardowns, then check new parts made for the model. Compare the OEM number where one is provided, read the used part's condition note and verify the fitment chart for your exact year, make and model. Do not assume another Pioneer 700 part fits just because it looks the same.

Didn't find what you need from Stock #3429?

Browse all Honda parts, or see every Honda Pioneer 700 4x4 part from our other donor machines, and our new Honda Pioneer 700 4x4 parts.

Check the year, make and model on each listing before you order.

Can't find it? Request a part and tell us exactly what you are looking for.
