2016 Honda Pioneer 1000 4x4 SXS1000M3 Used Parts, Stock #3166

PirateMX dismantled this 2016 Honda Pioneer 1000 4x4 SXS1000M3, stock #3166, for 136 used parts, including chassis, engine, drivetrain, steering, suspension and body pieces. Browse the available parts below.

Available parts from this 2016 Honda Pioneer 1000 4x4

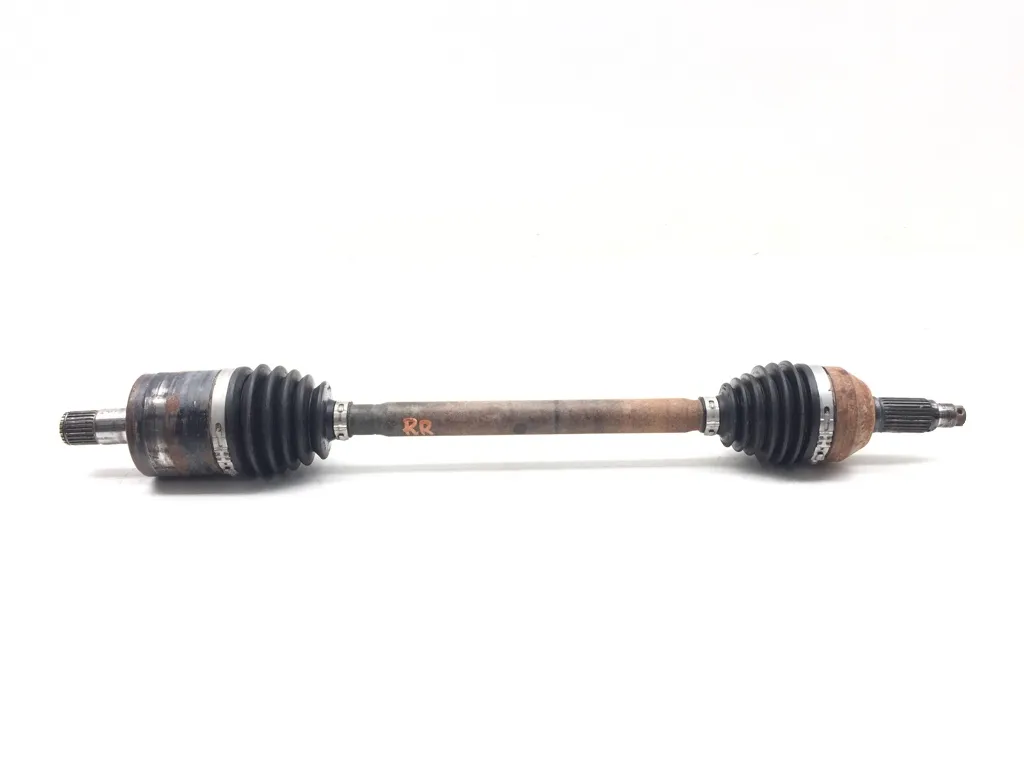

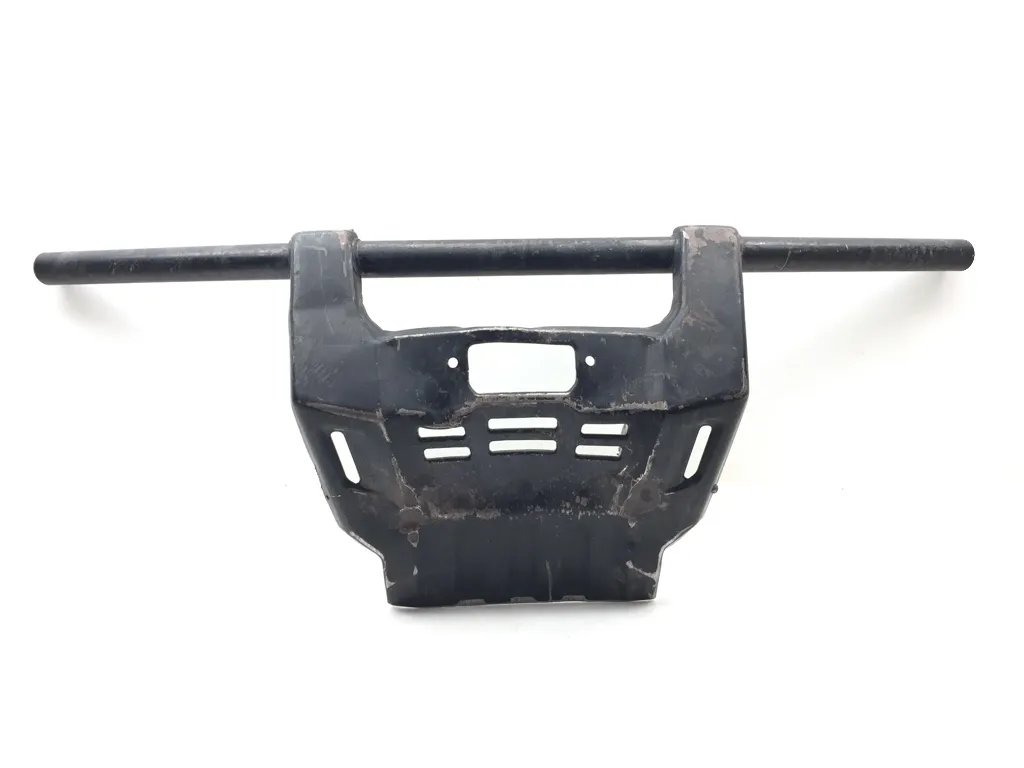

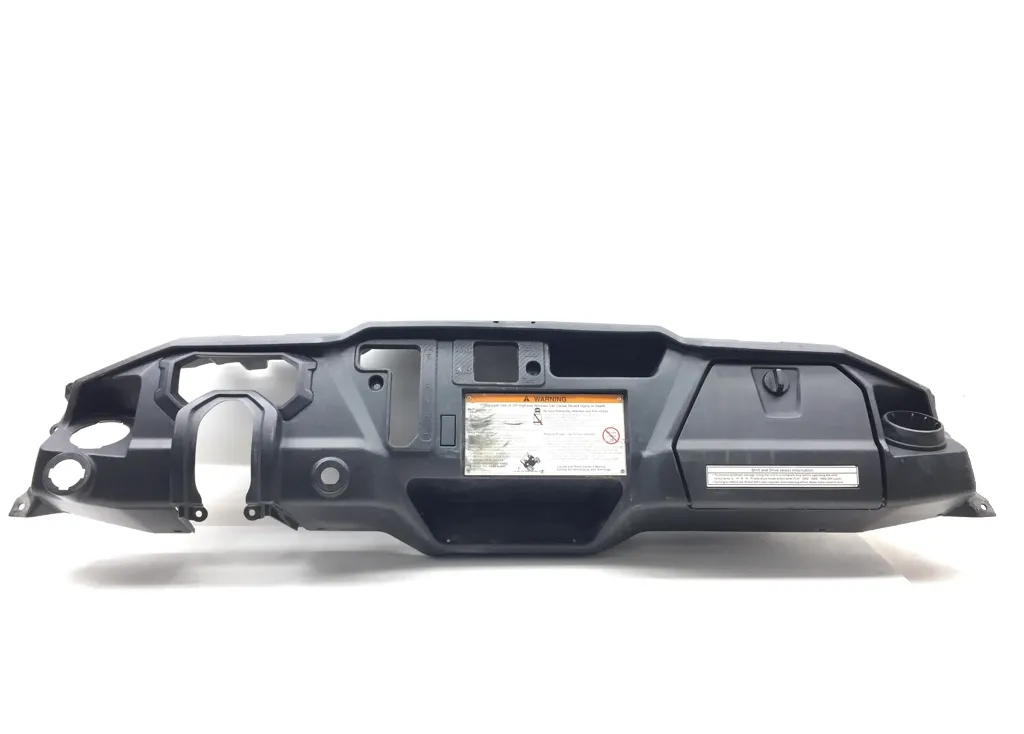

Bumper, axle, complete bed assembly and dash parts came from this Honda Pioneer 1000 donor. The larger repair pieces from stock #3166 include the frame chassis, complete cylinder head with valves, front differential ring gear and pinion, complete transmission gear set, and steering rack and pinion.

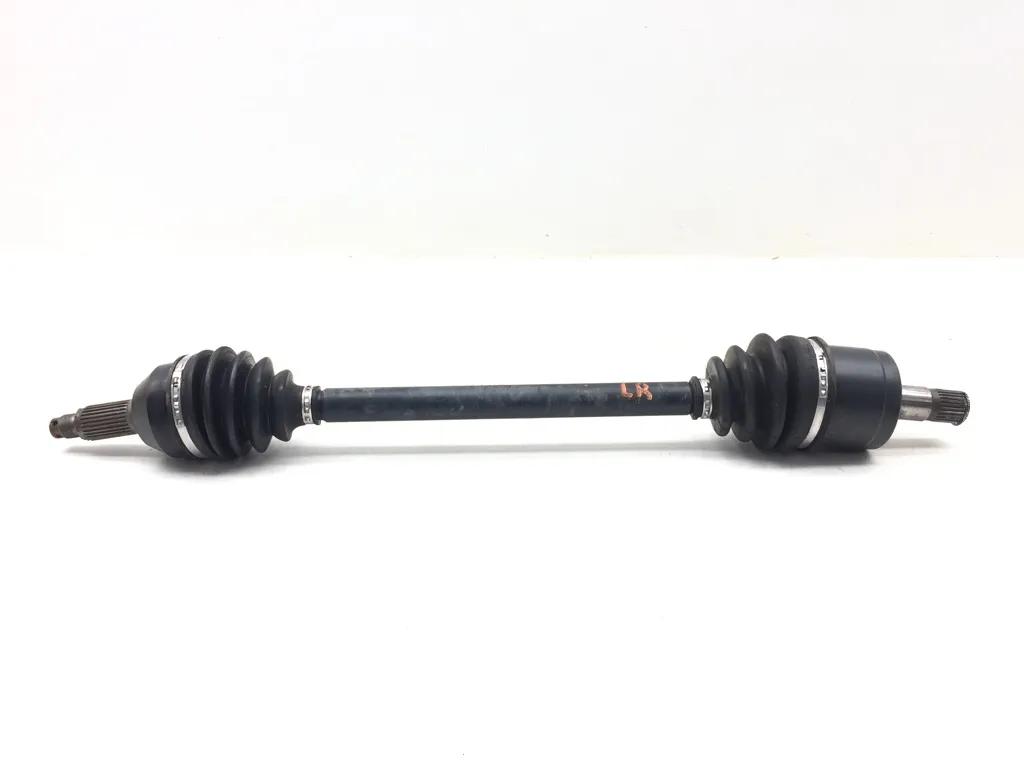

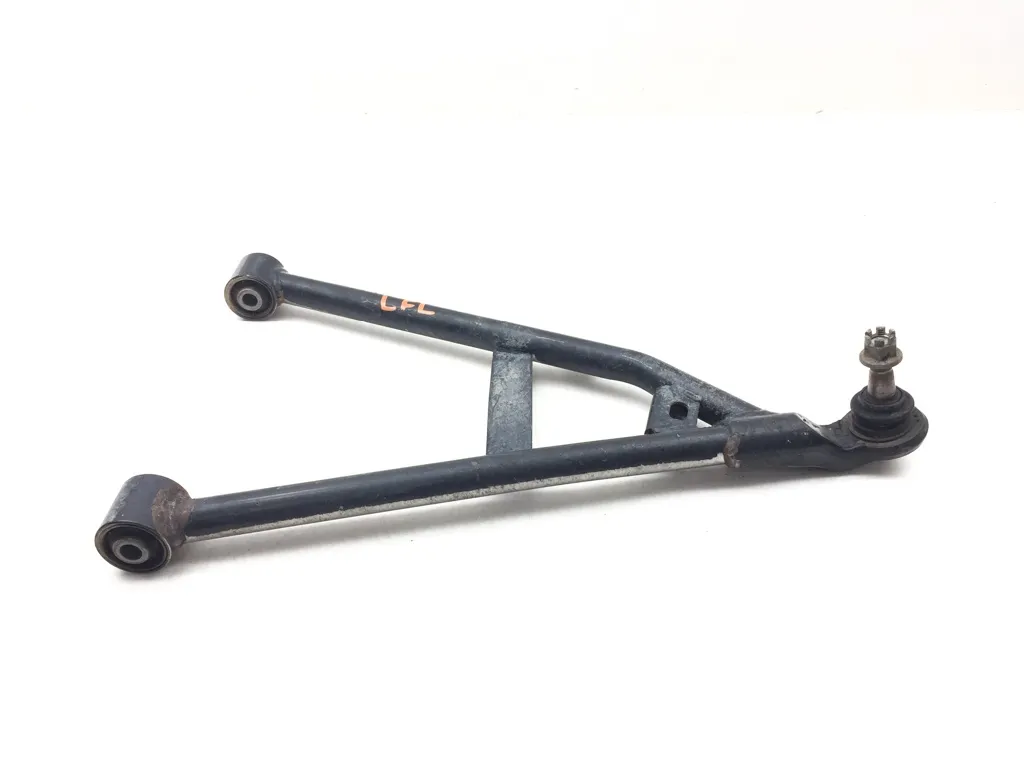

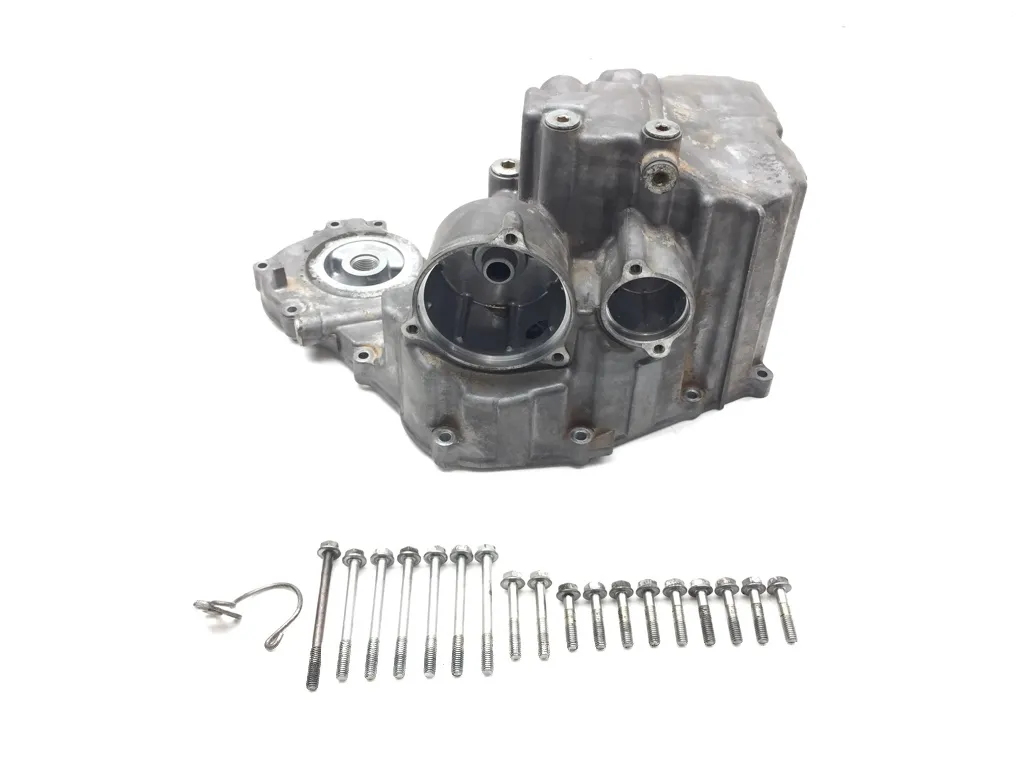

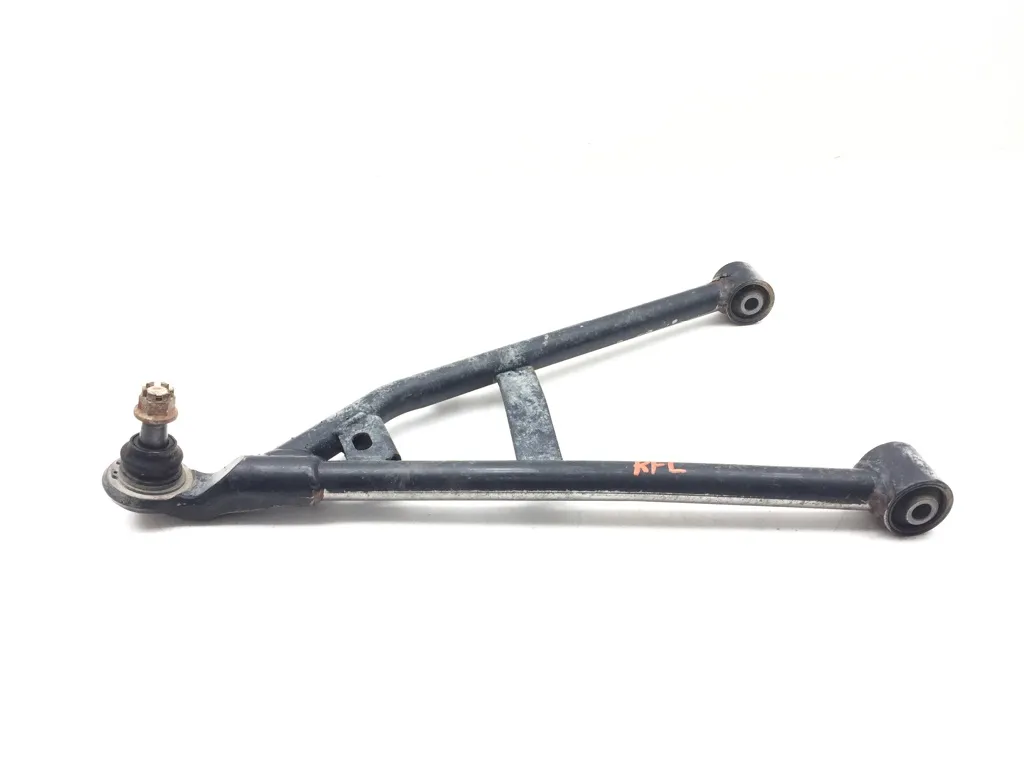

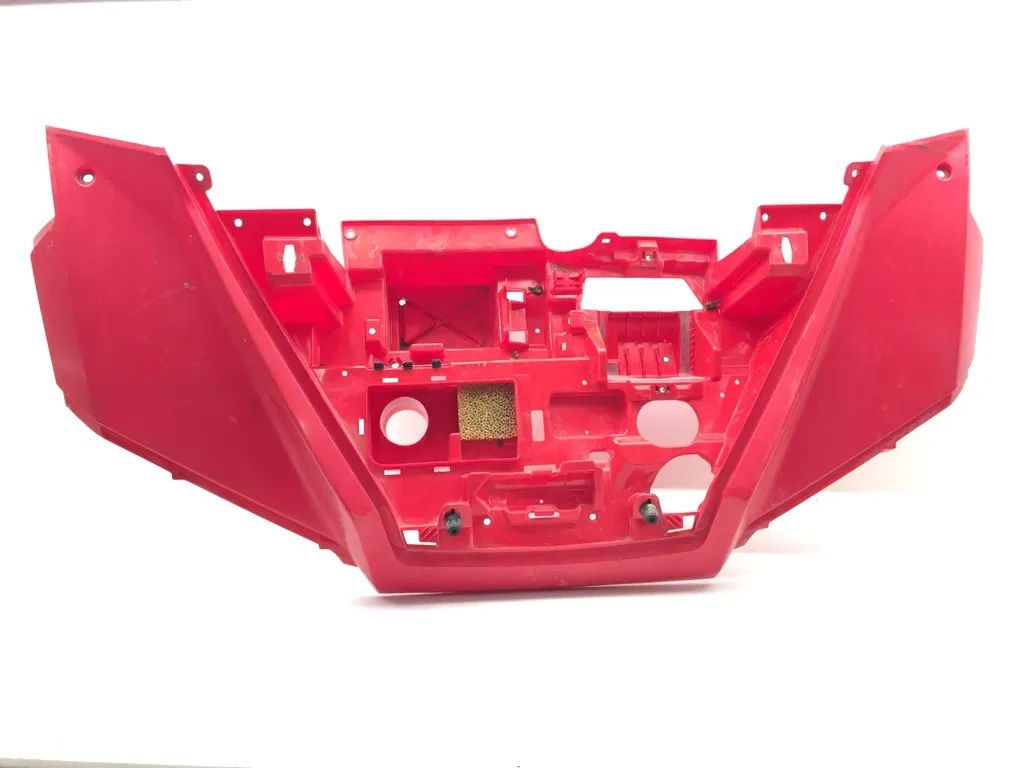

Other takeoffs include front lower A-arms, front fender plastics, the engine oil tank, steering columns and CV axles.

Most-searched parts for the Honda Pioneer 1000

Part	Where to find it
Bumper	Shop bumper for the Honda Pioneer 1000
Axle	Shop axle for the Honda Pioneer 1000
Bed	Shop bed for the Honda Pioneer 1000
Dash	Shop dash for the Honda Pioneer 1000

Other parts that fit the Honda Pioneer 1000 4x4

If the stock #3166 part you need is gone, check Honda Pioneer 1000 used parts from other machines PirateMX took apart, plus new parts made to fit the same UTV. Look there for engine, drivetrain and steering parts.

Keep the SXS1000M3 identification and OEM number from your old component handy, then use the cross-model fitment below to separate a shared Honda side by side part from one that only looks the same.

Honda Pioneer 1000 OEM numbers and fitment

Start with the OEM number on the part you are replacing or in your Honda Pioneer 1000 parts diagram, then compare it with the number for that specific component below. Confirm the exact year and model on the part's own page rather than relying on the Pioneer or Talon family name, since similar-looking chassis, engine and differential parts may not interchange.

Part	OEM number	Availability
Front Wheel Hub Spindle Castle Nuts	90304-HM7-A10	In stock from this machine

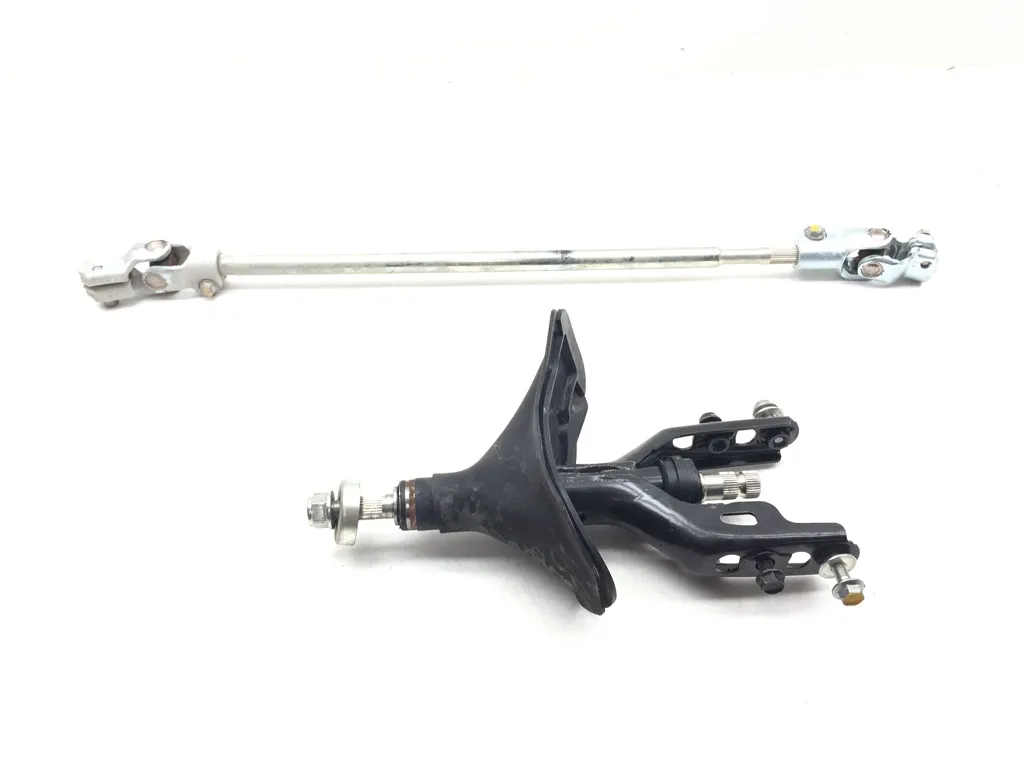

Steering Shaft Column	53323-SW5-003	In stock from this machine

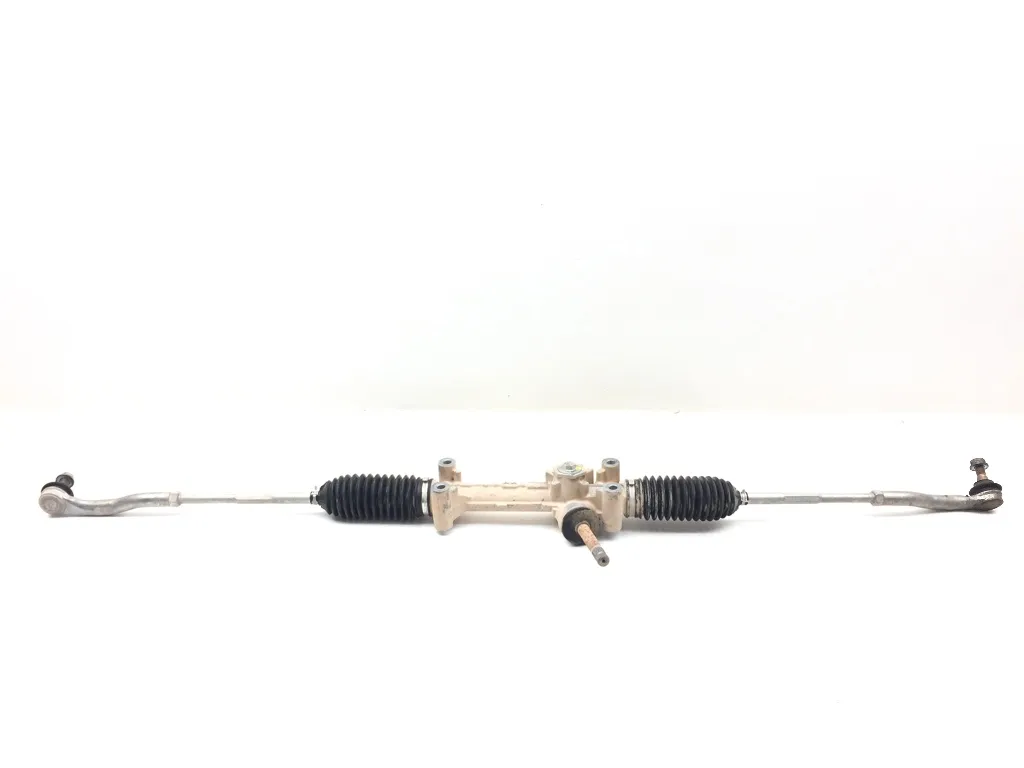

Steering Rack and Pinion	53010-HL4-A01	In stock from this machine

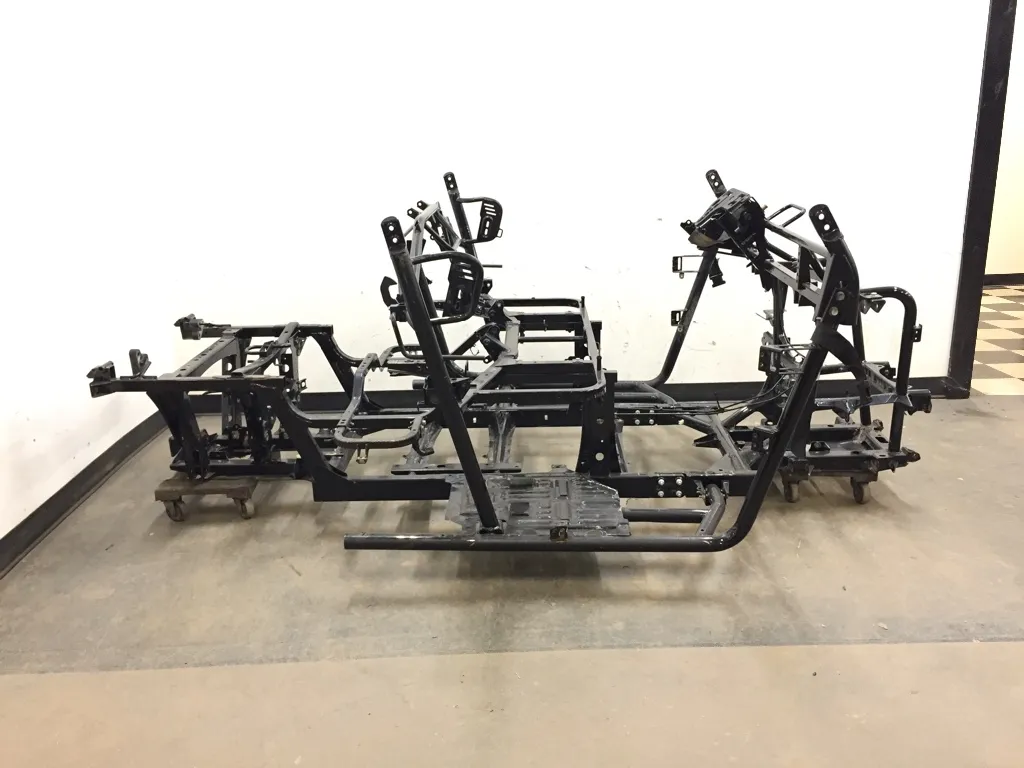

Frame Chassis	50000-HL4-A00	In stock from this machine

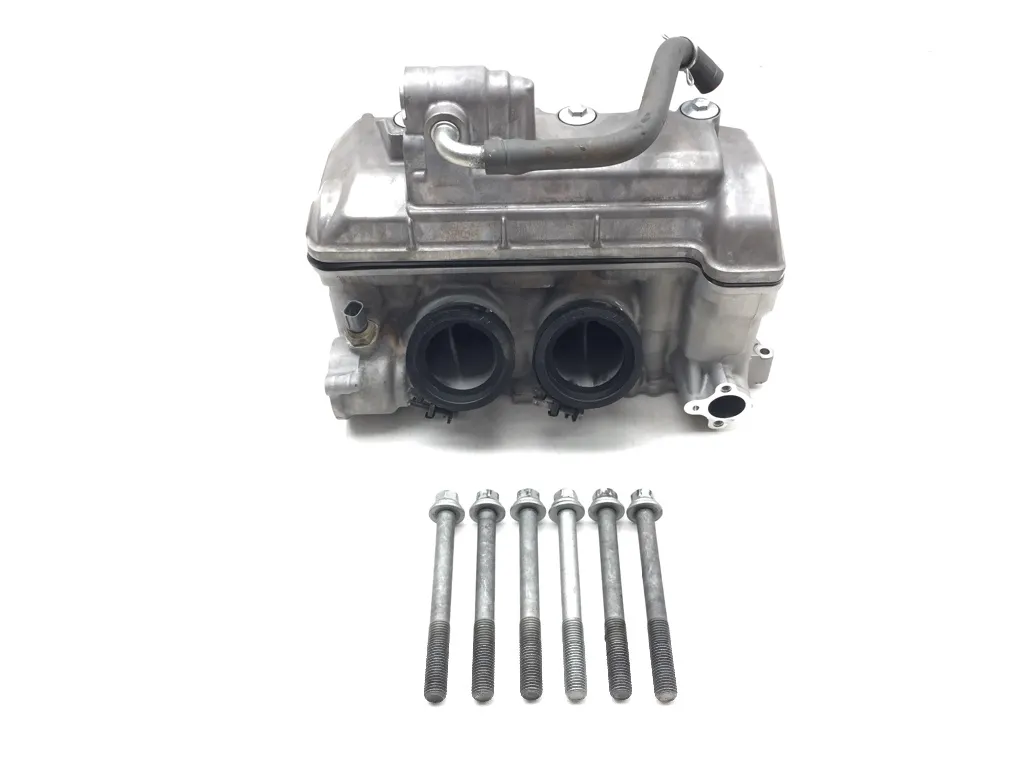

Engine Cylinder Head Complete W Valves	12010-HL4-000	In stock from this machine

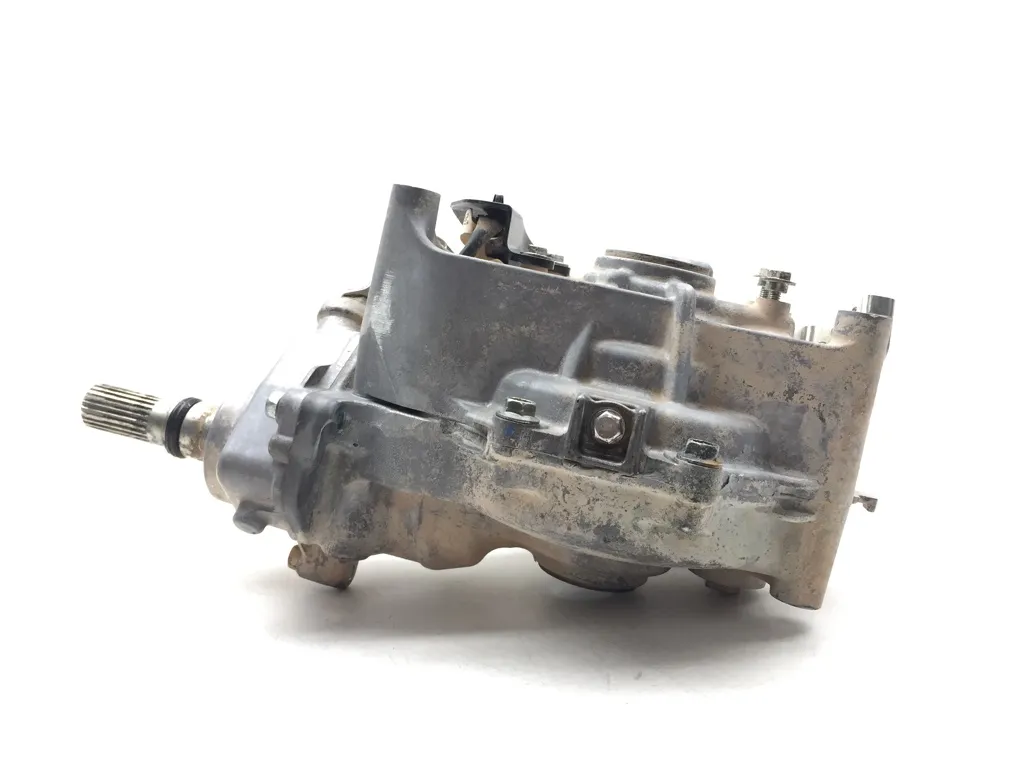

Front Diff Differential Ring Gear Pinion	41400-HL4-A00	In stock from this machine

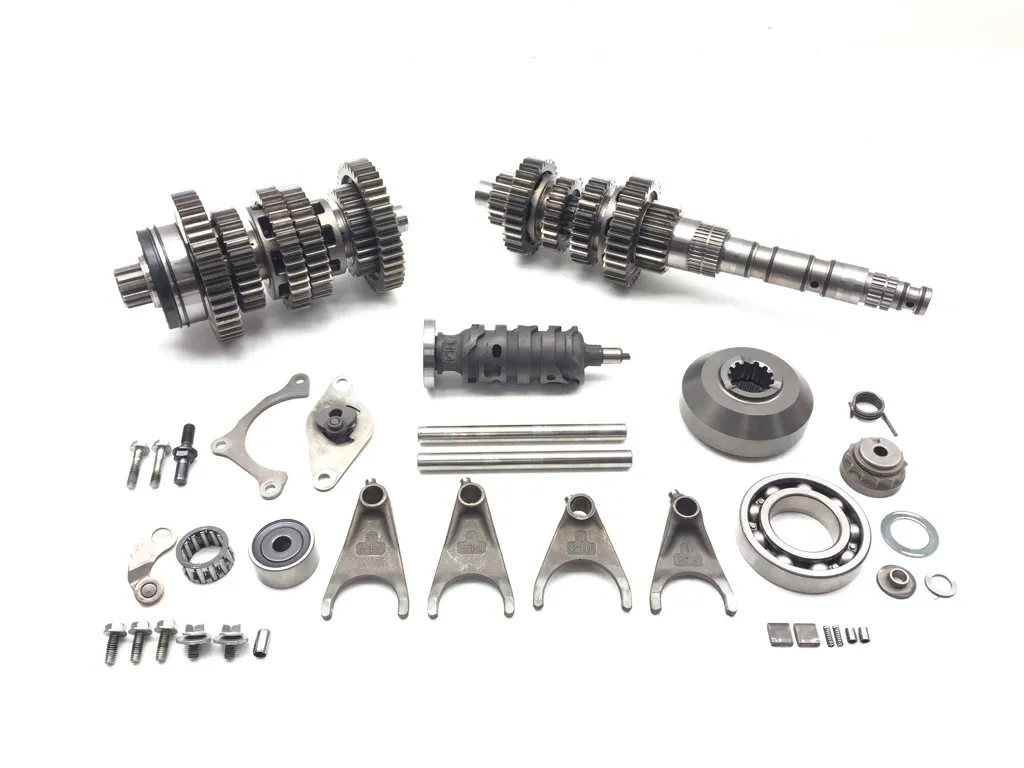

Transmission Gear Set Complete	23210-HL4-000	In stock from this machine

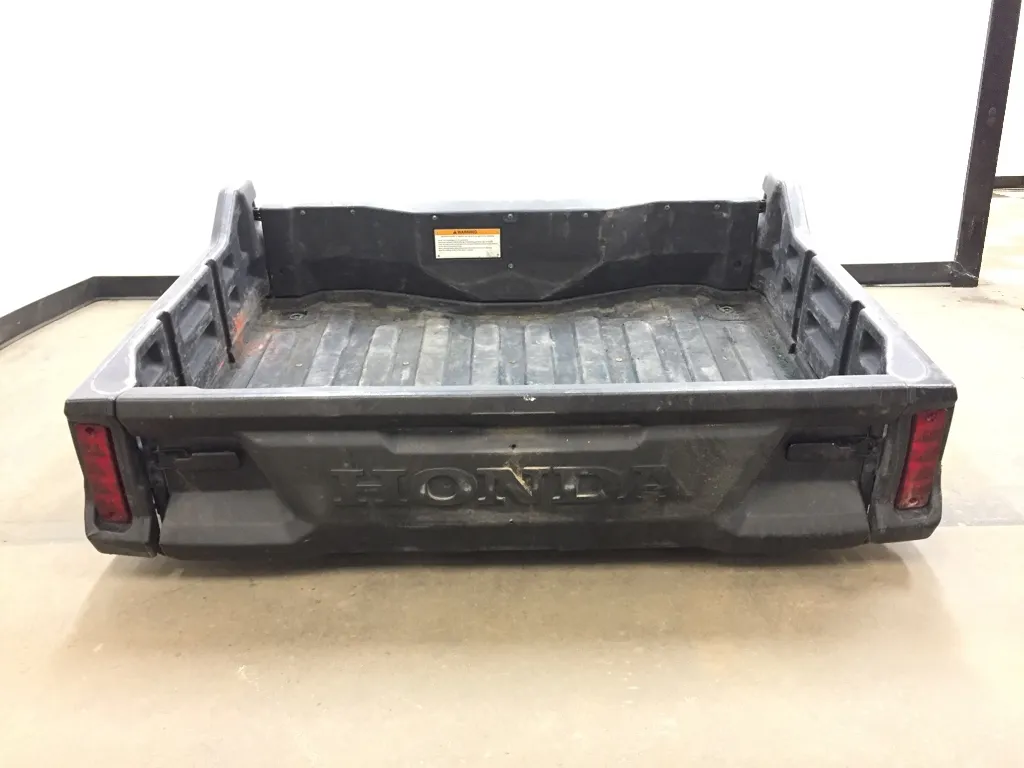

Complete Bed Assembly	81500-HL4-A50	In stock from this machine

Also listed to fit	Years
Honda Pioneer 1000 5	2016-2025
Honda Pioneer 1000 6	2024-2025
Honda Talon 1000X 4	2020-2025
Honda Talon 1000X	2019-2025
Honda Talon 1000R	2019-2025

Frequently asked questions

What parts came off the 2016 Honda Pioneer 1000 4x4 SXS1000M3, stock #3166?

Parts removed from stock #3166 include the frame chassis, complete cylinder head with valves, front differential ring gear and pinion, complete transmission gear set, bed assembly, and steering rack and pinion. Other takeoffs include the bumper, dash parts, front lower A-arms, front fender plastics, engine oil tank, steering columns, and CV axles.

How do I match an OEM number for a Honda Pioneer 1000 chassis, cylinder head, or front differential part?

Compare the number on your old part or Honda parts diagram with the OEM number on the part page. The frame chassis carries 50000-HL4-A00, 50370-HL4-A00, and 50380-HL4-A00, the complete cylinder head with valves carries 12010-HL4-000, and the front differential ring gear and pinion carries 41400-HL4-A00. Check fitment for your exact year, make and model before you order.

What should I do if the Honda Pioneer 1000 part I need is not available from this machine?

Check Honda Pioneer 1000 used parts from other teardowns, then check new parts made for the same UTV. Match the OEM number and read the fitment chart and part note on the product page, since some parts are also listed for certain Pioneer 1000-5, Pioneer 1000-6, and Talon models. Check fitment for your exact year, make and model, and ask PirateMX before ordering if the page does not say.
