2017 Yamaha Wolverine 700 R Spec 4x4 Used Parts

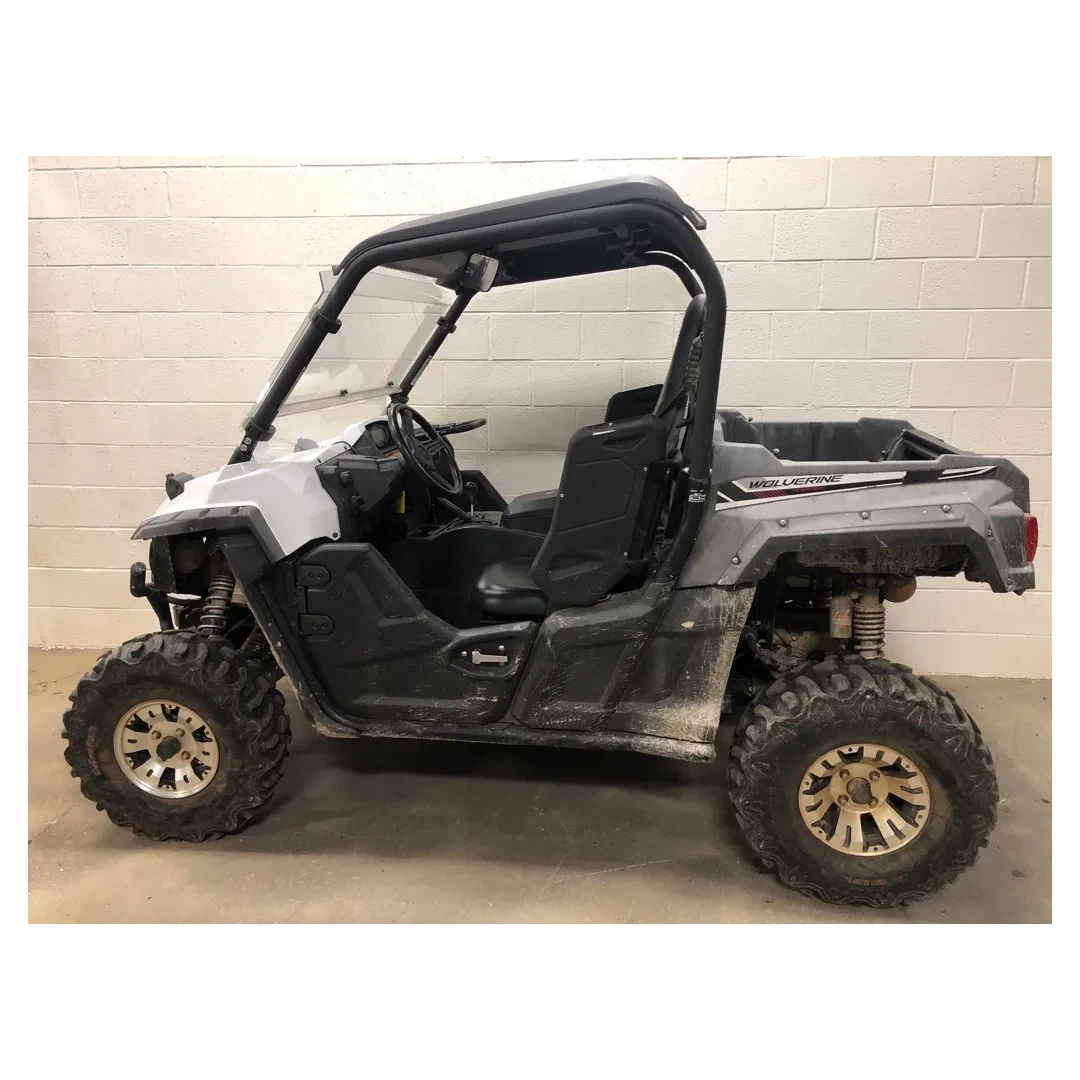

PirateMX dismantled a 2017 Yamaha Wolverine 700 R Spec 4x4 YXE70 4x4 FI EPS, stock #3422, with 4,855 miles, producing 155 parts.

The teardown includes frame, roll cage, drivetrain, engine, electrical, suspension, body and brake components. Browse the available used parts from this exact side by side below.

Available parts from this 2017 Yamaha Wolverine 700 R Spec 4x4

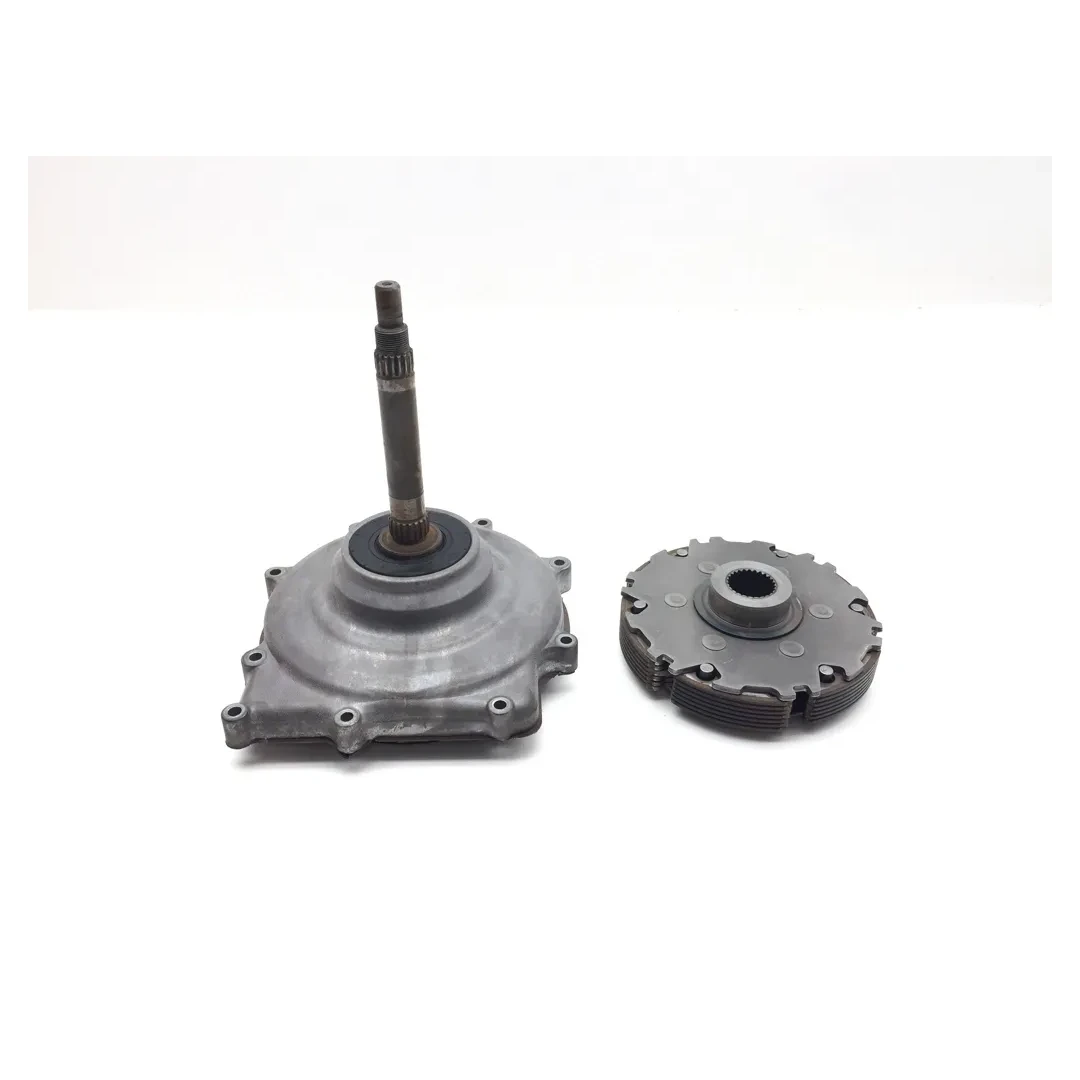

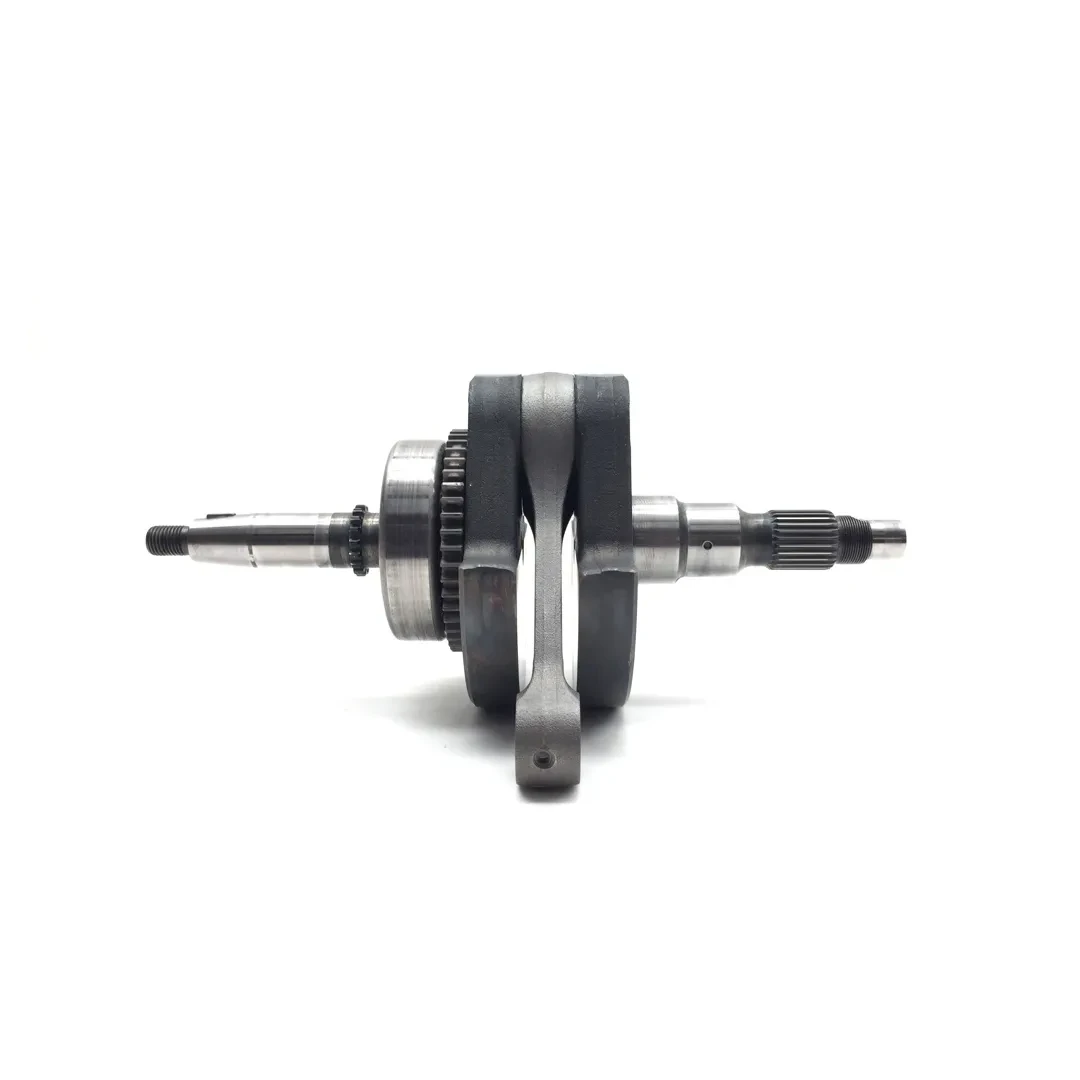

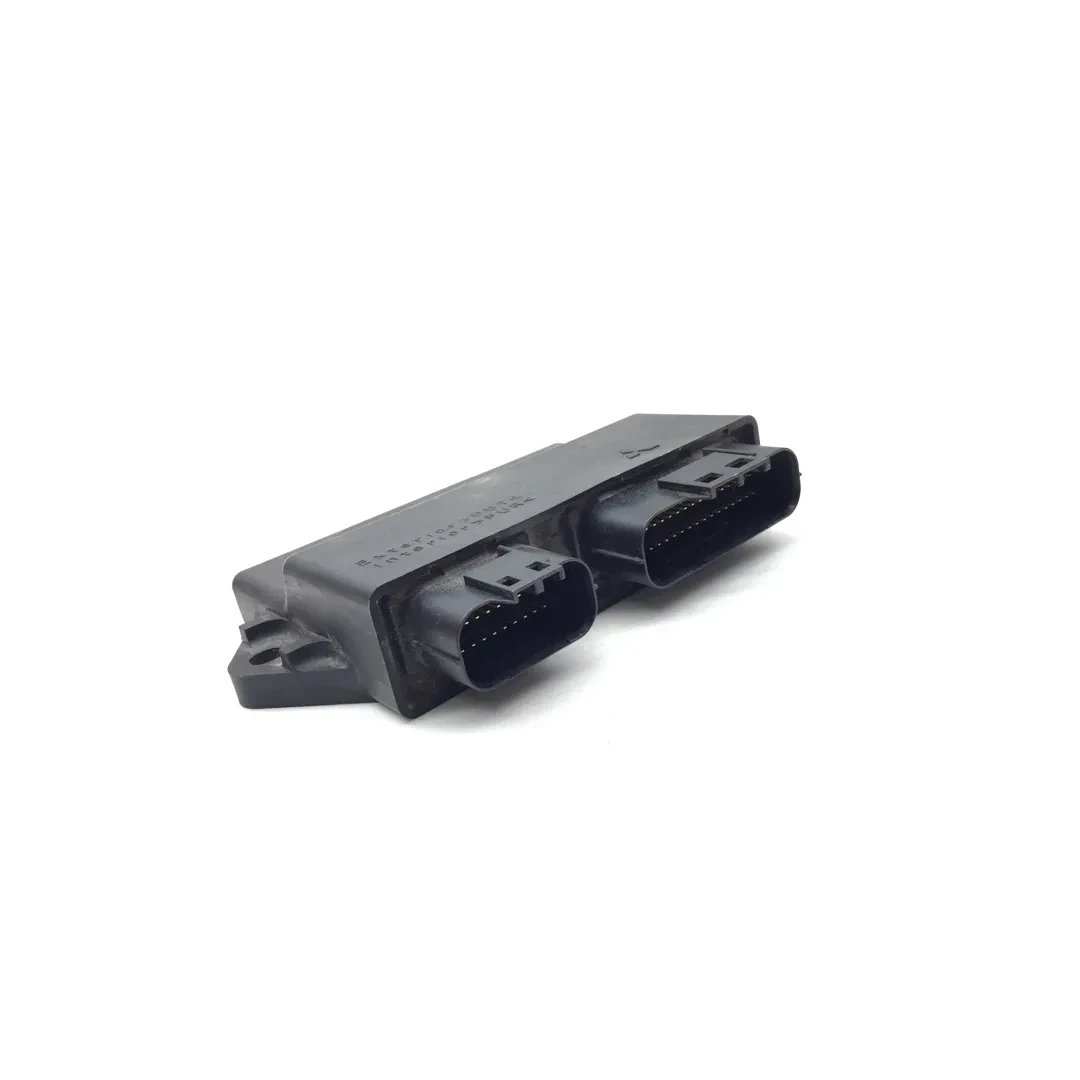

Major parts still listed from stock #3422 include the Frame Chassis, Roll Cage, Front Diff Differential Ring Gear Pinion, Crankshaft, Ignition CDI Box ECU and Engine Centrifugal Clutch Assembly.

Every teardown item here is a single used part. After it sells, stock #3422 has no second copy.

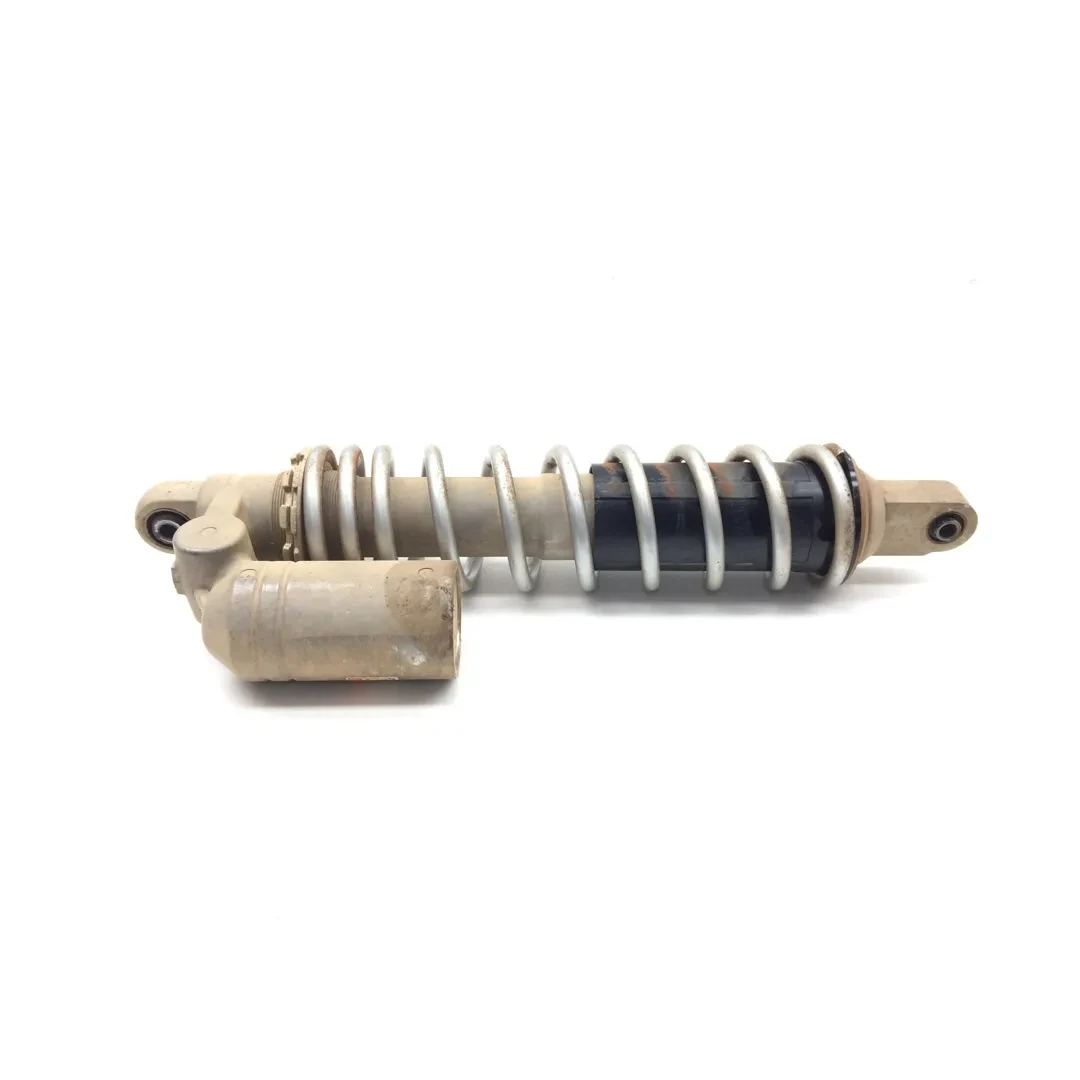

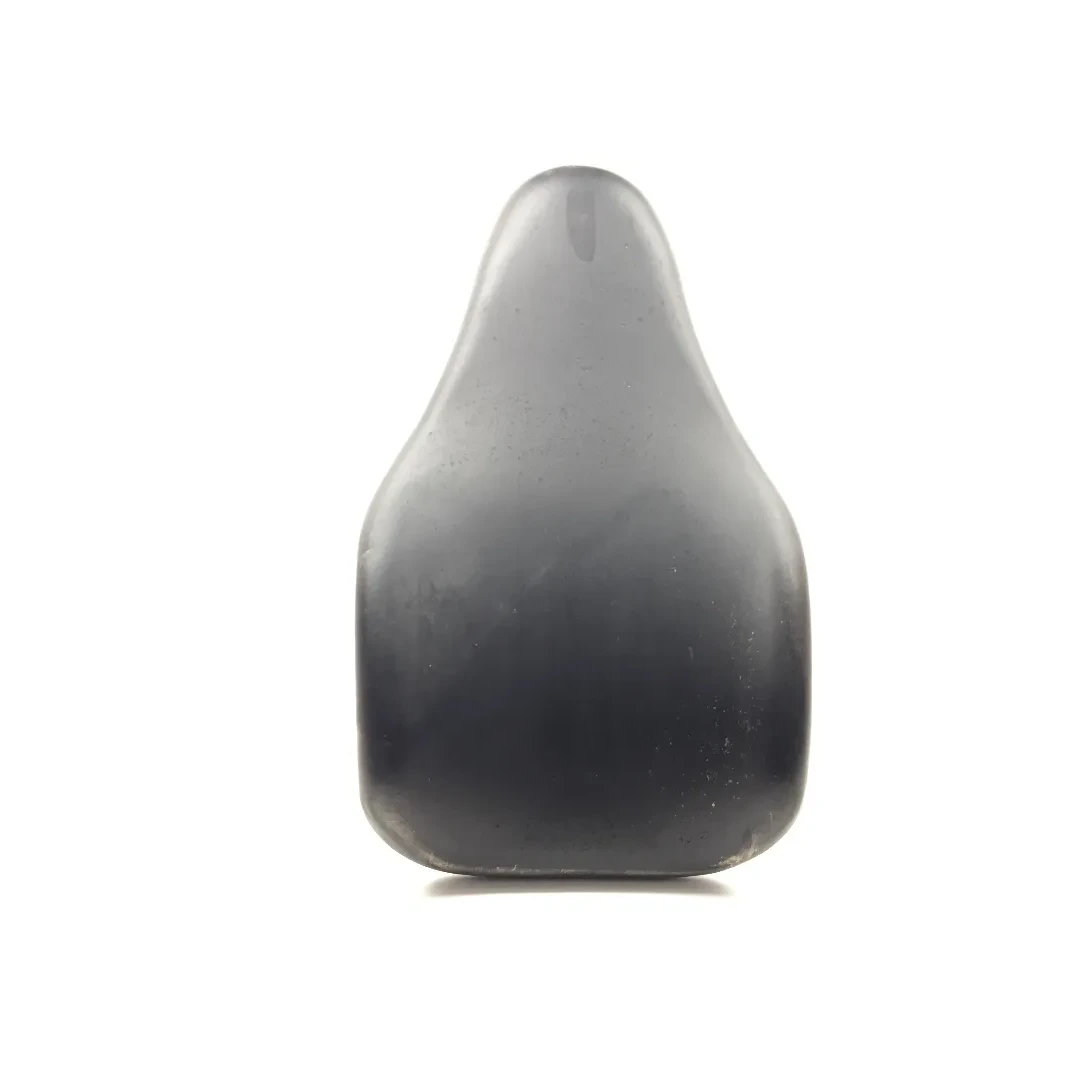

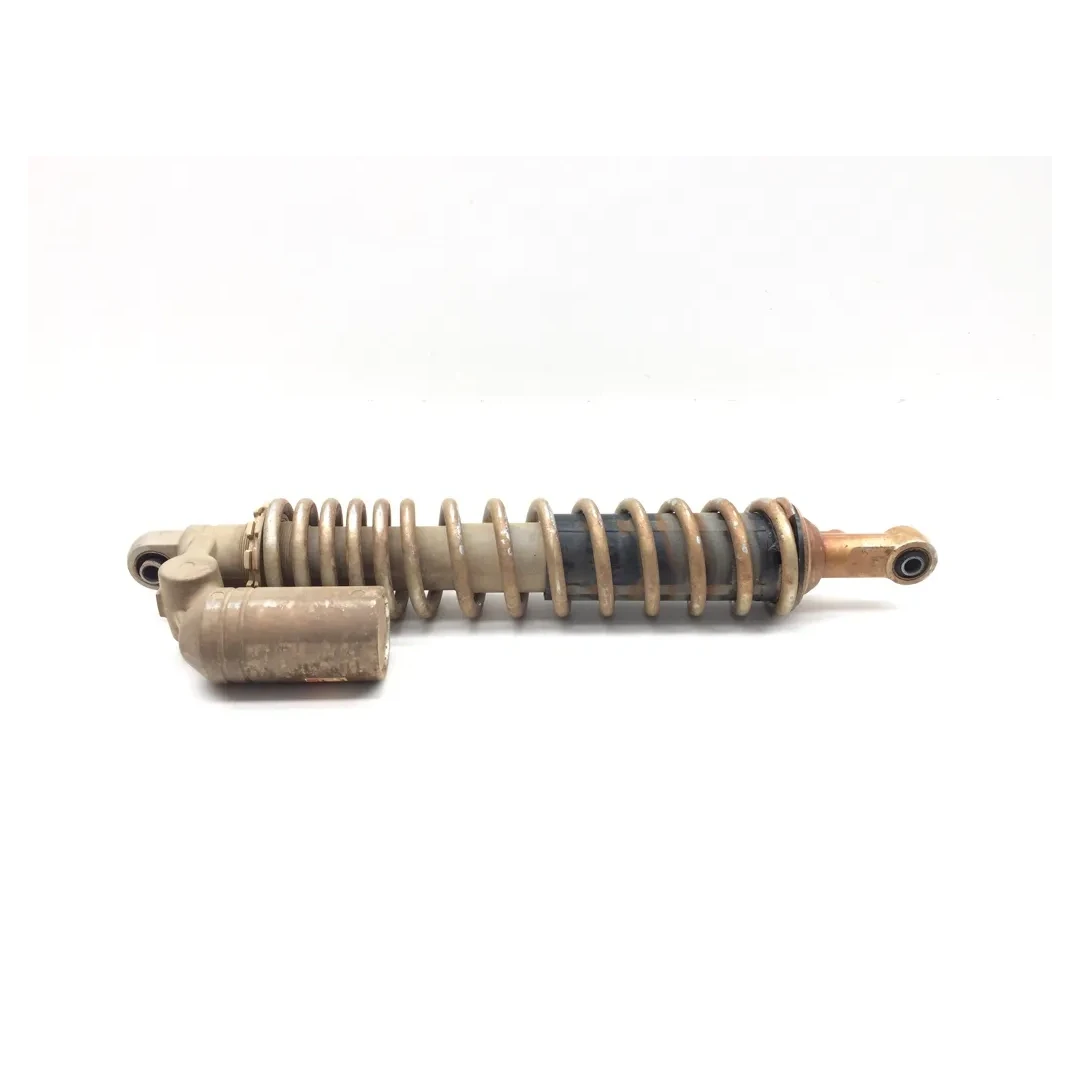

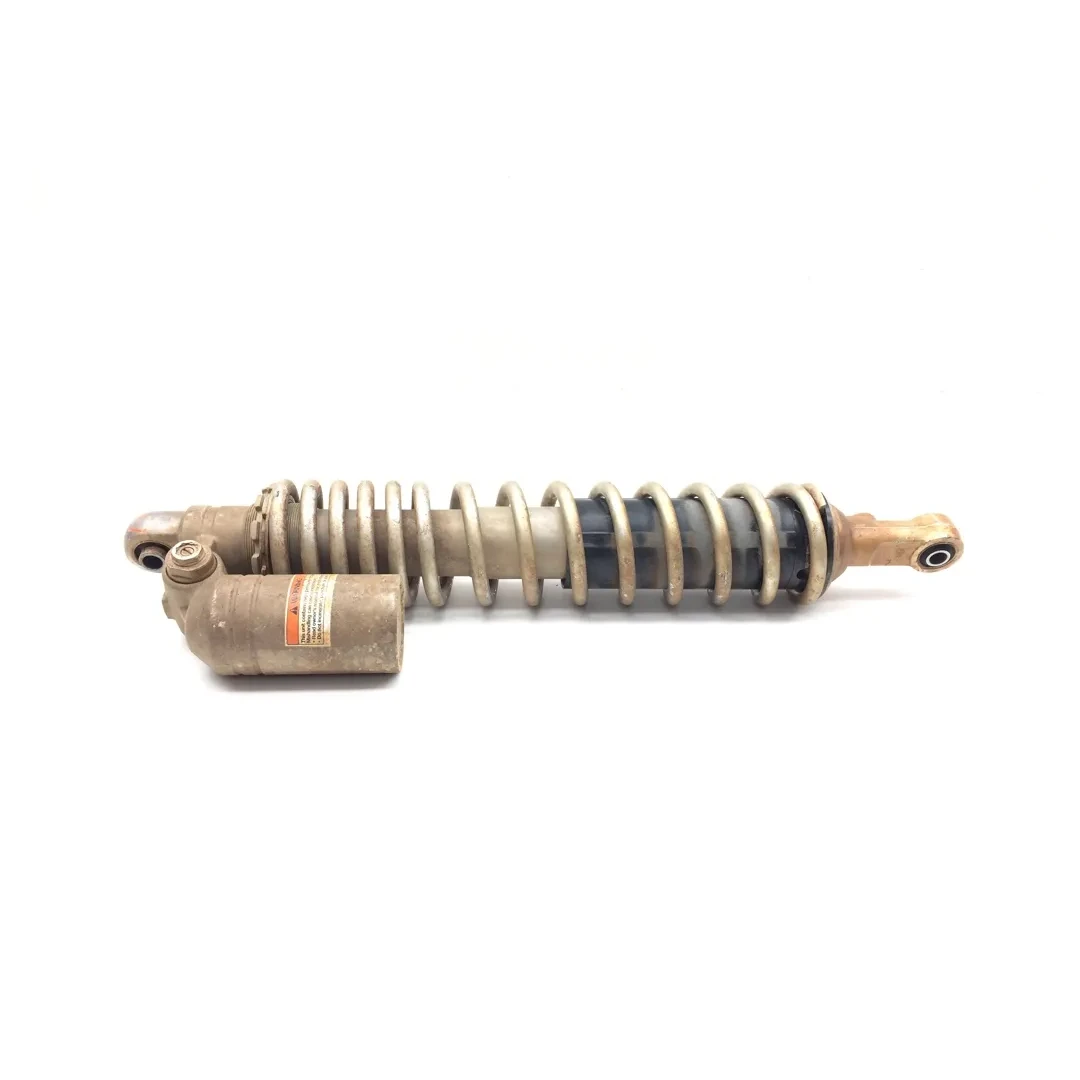

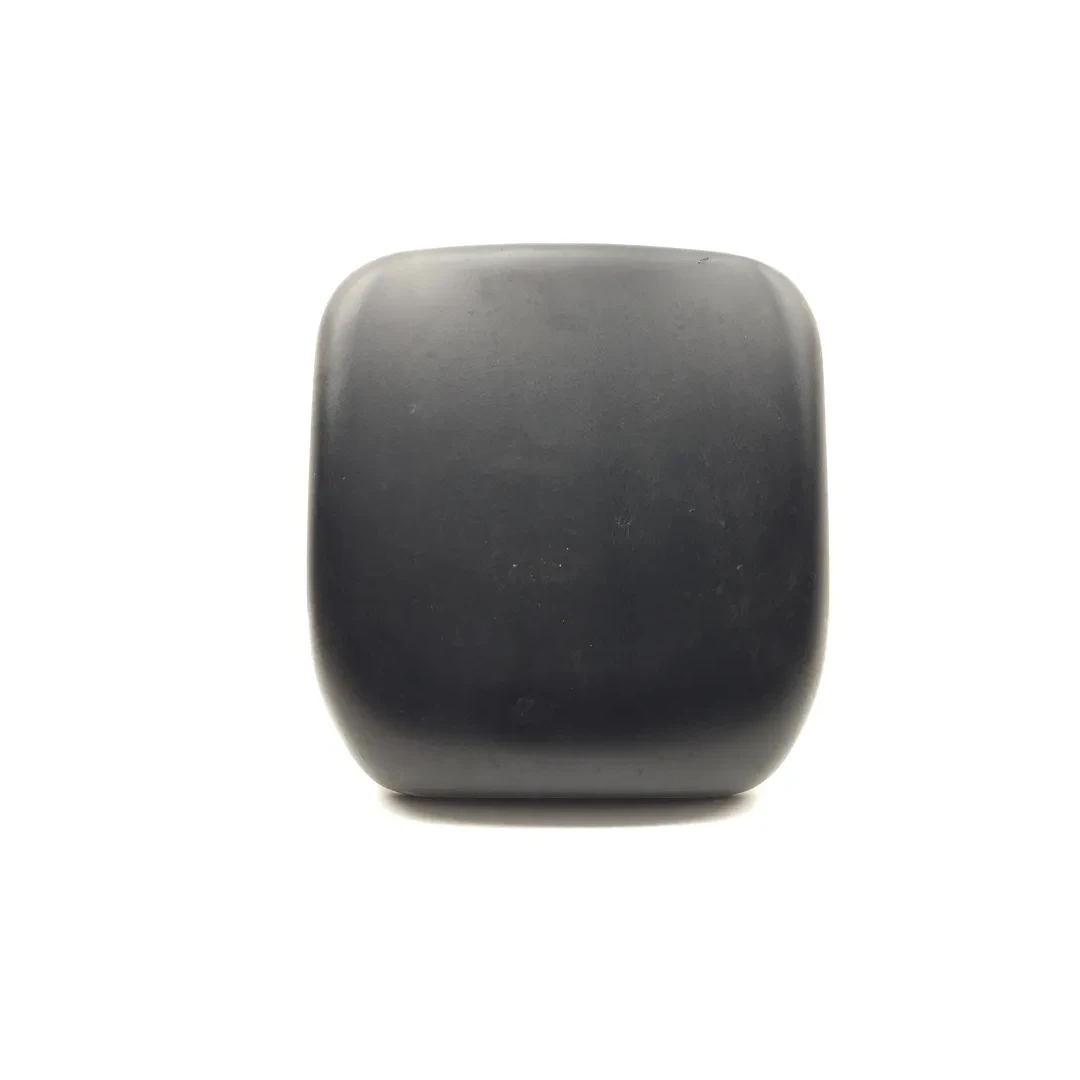

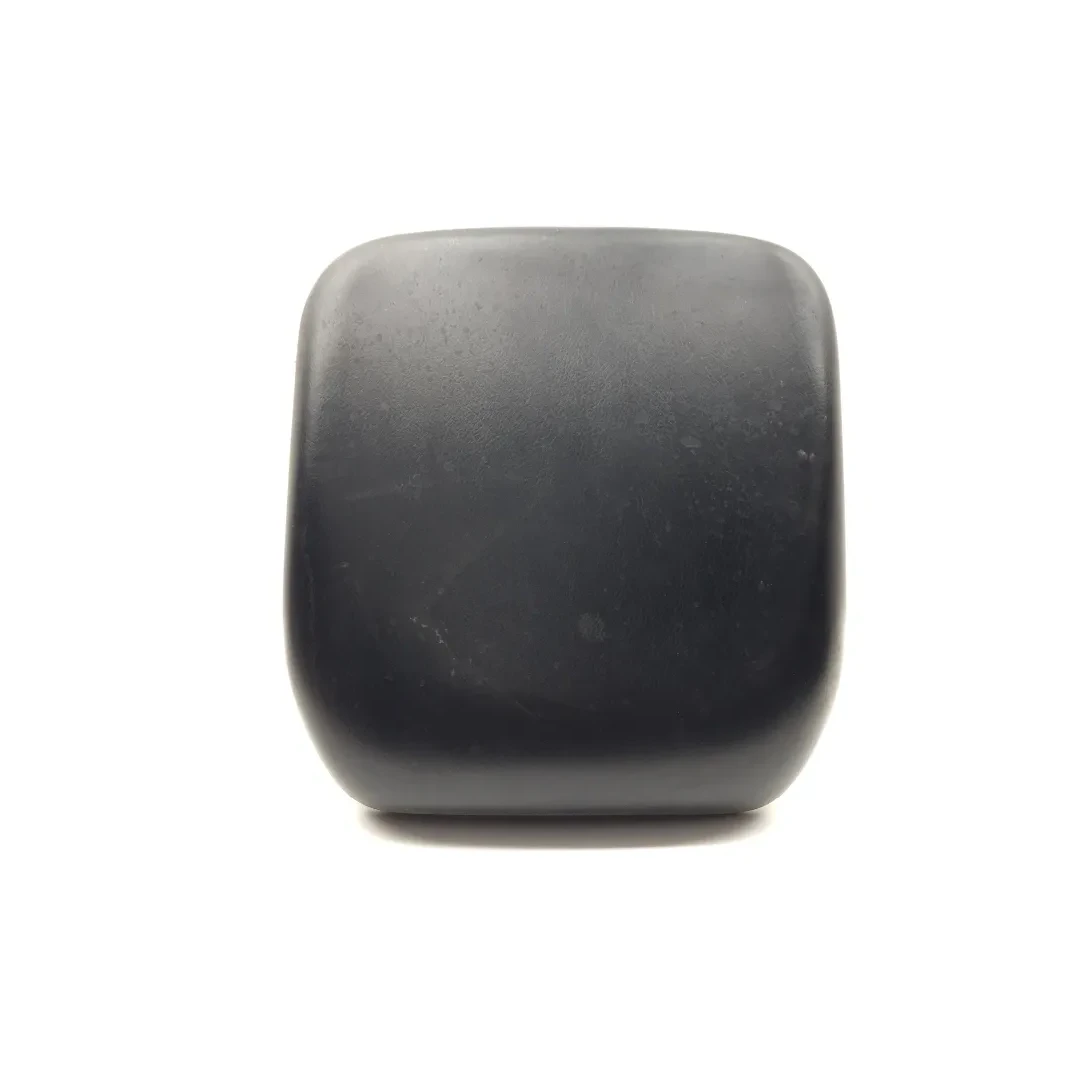

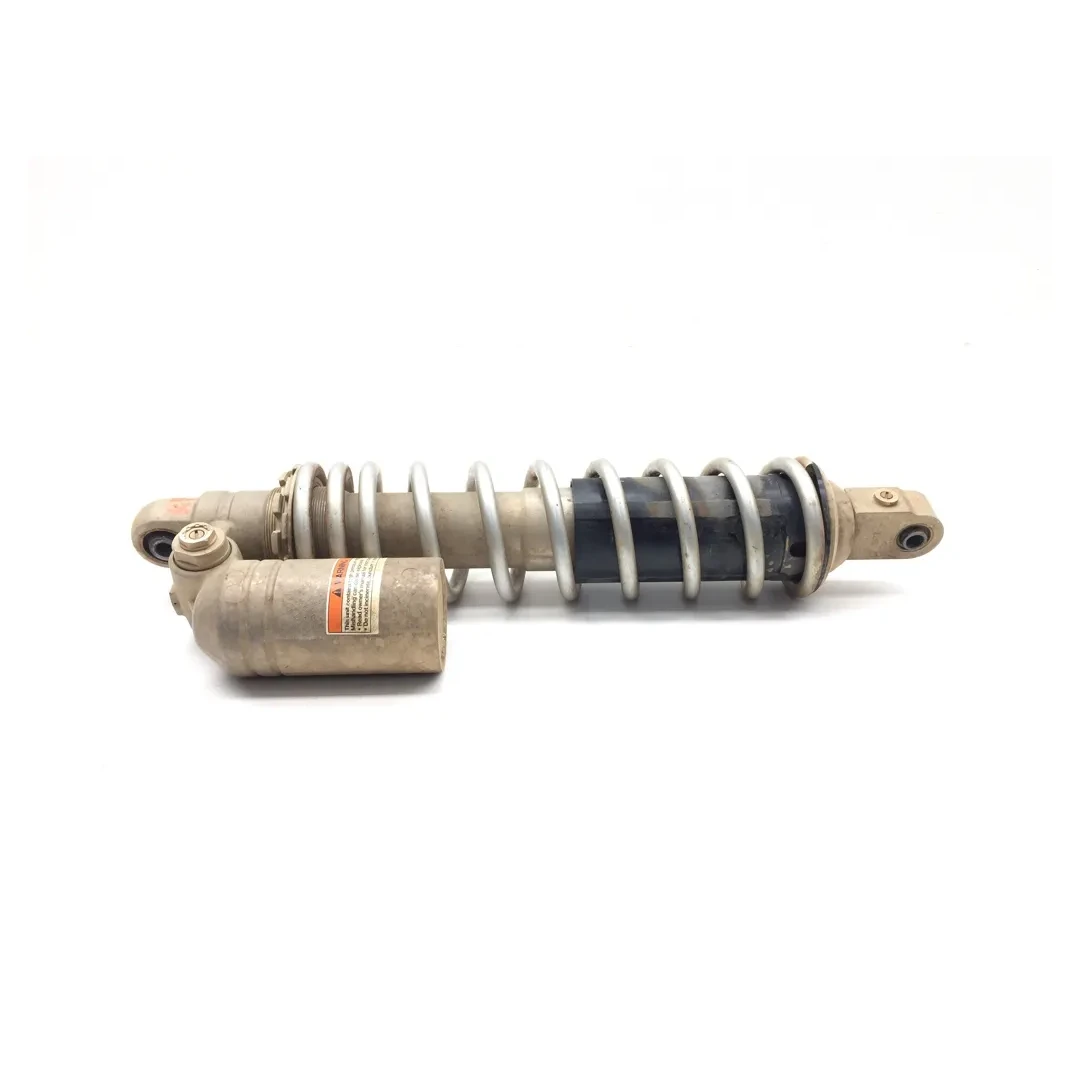

The category grid includes Yamaha Wolverine 700 R Spec 4x4 Suspension & Steering with 4 Shocks & Struts, 4 Rear A-Arms and 3 Front A-Arms; Yamaha Wolverine 700 R Spec 4x4 Seat Assembly with 4 parts; 3 Brake Calipers & Bolts; and 3 Wheel & Axle Hubs.

Other parts for the Yamaha Wolverine 700 R Spec 4x4

If the stock #3422 part has sold, the shelf below shows used parts from other donor machines plus new parts for the same model. These items did not come from this teardown.

Use the full Yamaha Wolverine 700 R Spec 4x4 used parts collection to see the parts available for this SxS.

OEM numbers and fitment for this Yamaha Wolverine 700 R Spec 4x4

Compare the number on your original part with the OEM table below. Of the 105 listed parts from this machine, 89 carry OEM part numbers.

Part	OEM numbers	Availability

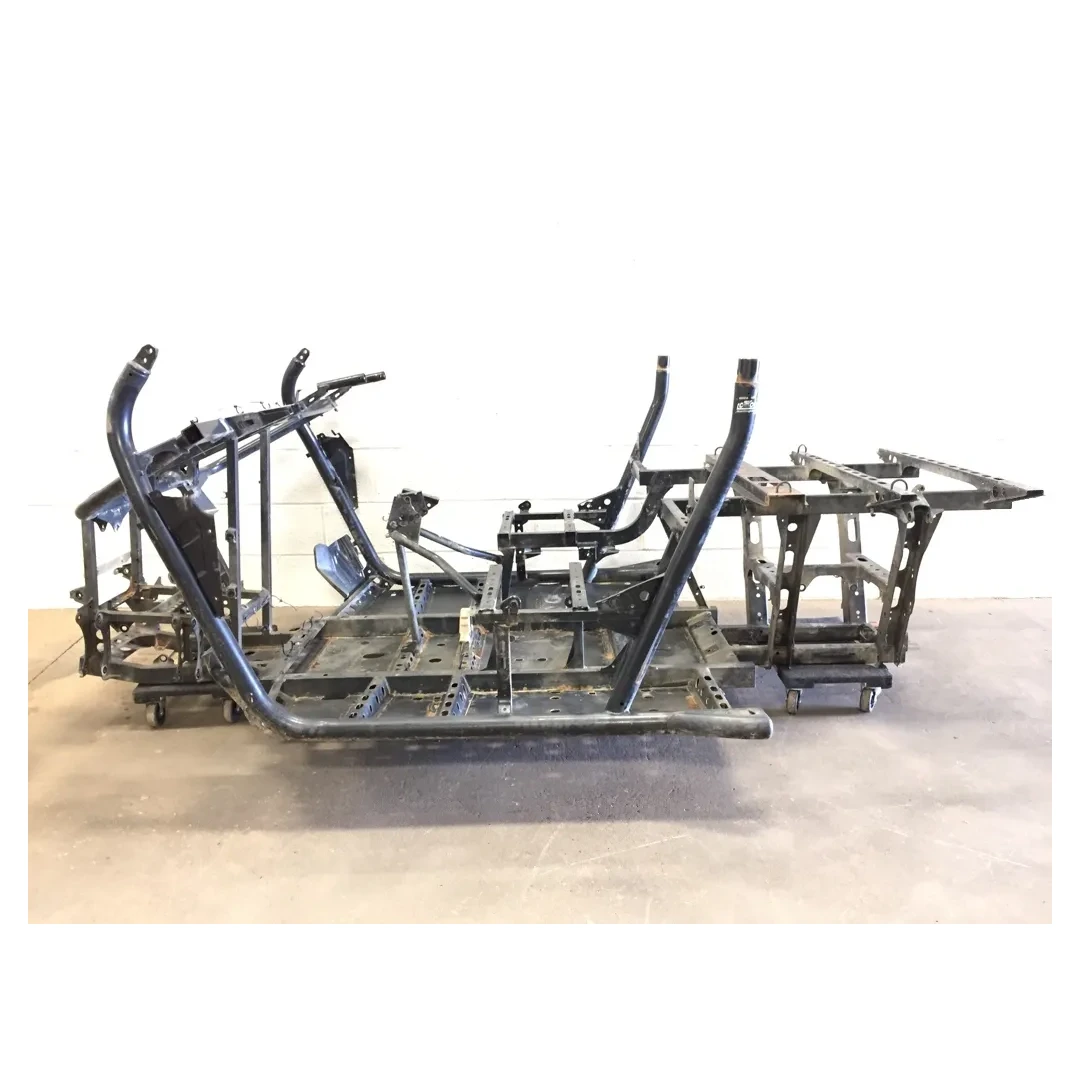

Frame Chassis	2MB-F1110-00-00	In stock from this machine

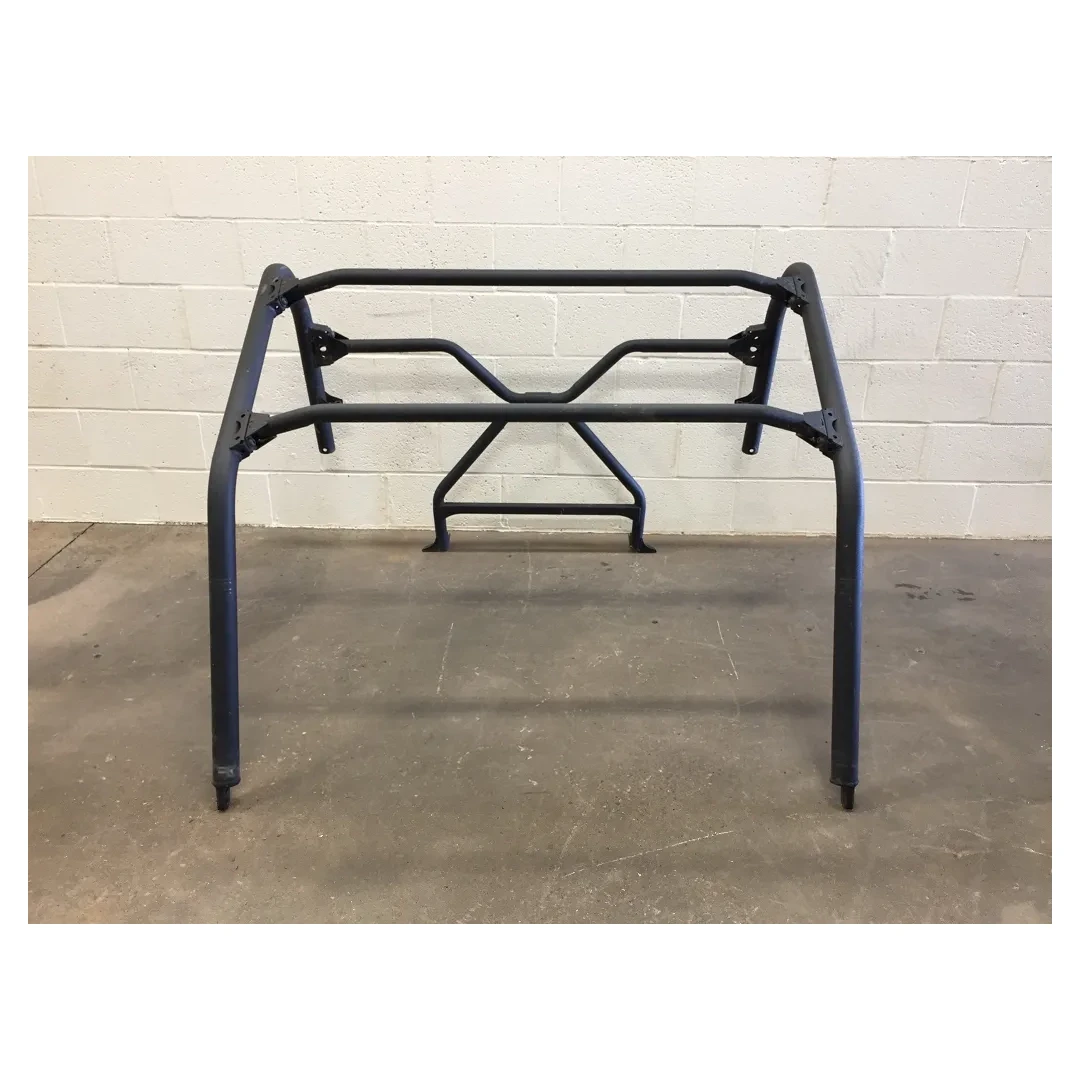

Roll Cage	1XD-K831A-00-00, 1XD-K831E-00-00	In stock from this machine

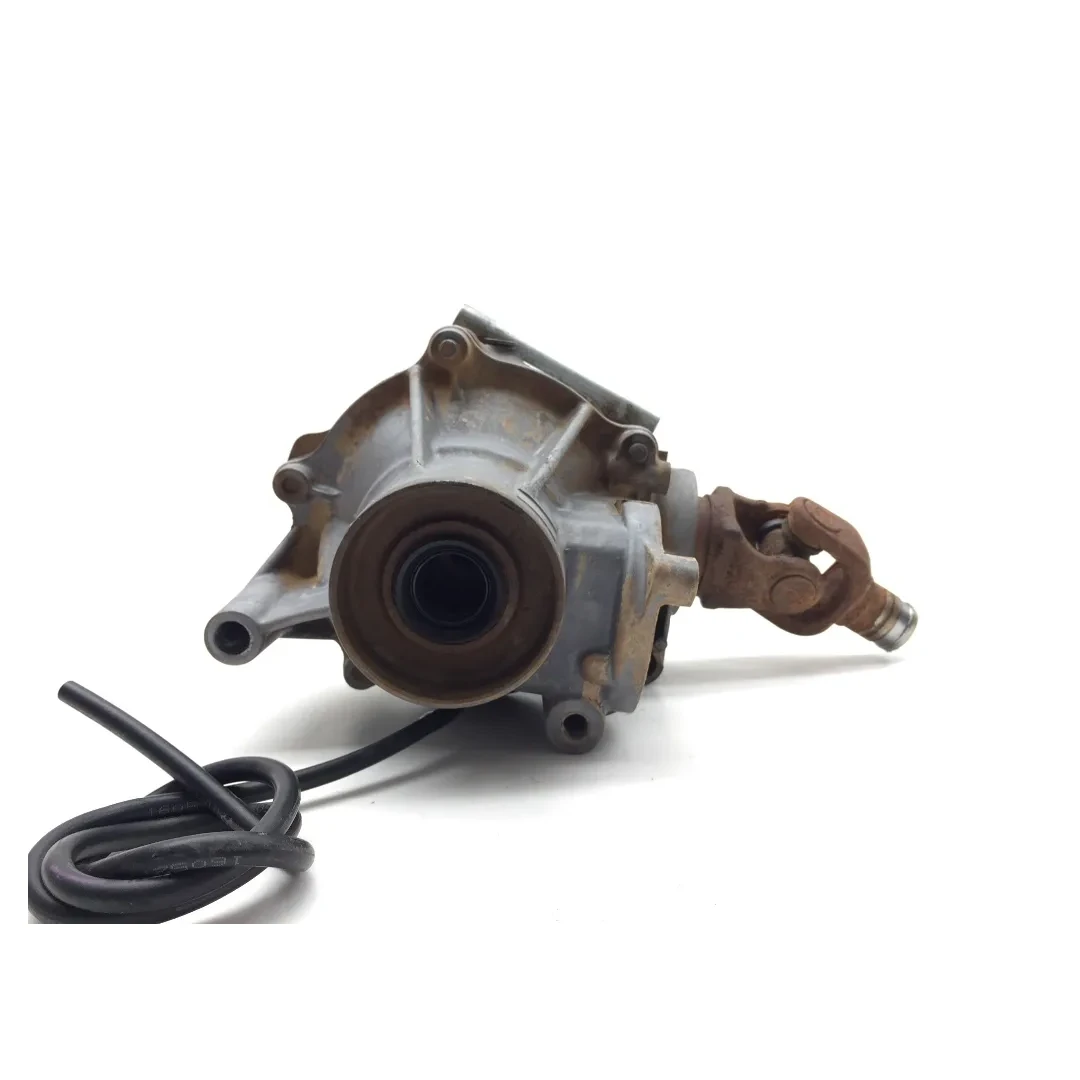

Front Diff Differential Ring Gear Pinion	1XD-46160-00-00	In stock from this machine

The listings also show applications for Yamaha Wolverine R-Spec (2016-2017), Yamaha Wolverine (2016-2017), Yamaha Viking 700 (2014-2025), Yamaha Viking VI (2015-2025) and Yamaha Viking 700 4x4 (2016-2026).

For parts from other donor machines and new inventory, continue to the Yamaha Wolverine 700 R Spec 4x4 used parts collection.

Frequently asked questions

What parts came off this 2017 Yamaha Wolverine 700 R Spec 4x4 stock #3422?

Stock #3422 produced 155 parts, with 105 listed from the 2017 Yamaha Wolverine 700 R Spec 4x4 teardown. Major pieces include the frame chassis, roll cage, front differential ring gear and pinion, crankshaft, ignition CDI box ECU and engine centrifugal clutch assembly, along with shocks, A-arms, seats, brake calipers and wheel hubs. Each used teardown item is a single part.

Which years and Yamaha models are listed as fitting parts from this Wolverine?

Parts from stock #3422 are listed for the Yamaha Wolverine R-Spec and Wolverine from 2016-2017, Viking 700 from 2014-2025, Viking VI from 2015-2025 and Viking 700 4x4 from 2016-2026. Those applications do not mean every part crosses over, so check fitment for your exact year, make and model before you order.

How can I match an OEM number for the frame, roll cage, or front differential ring gear and pinion?

Compare the number on your original part with the teardown listing before ordering. The frame chassis is 2MB-F1110-00-00, the roll cage uses 1XD-K831A-00-00 and 1XD-K831E-00-00, and the front differential ring gear and pinion is 1XD-46160-00-00. Match the complete number rather than relying only on the part name or pictured shape.

Didn't find what you need from Stock #3422?

Browse all Yamaha parts, or see every Yamaha Wolverine 700 R Spec 4x4 part from our other donor machines, and our new Yamaha Wolverine 700 R Spec 4x4 parts.

Check the year, make and model on each listing before you order.

Can't find it? Request a part and tell us exactly what you are looking for.
