2016 Yamaha Wolverine 700 R Spec 4x4 YXE70 EFI EPS Used Parts, Stock #3488

PirateMX dismantled this 2016 Yamaha Wolverine 700 R Spec 4x4 YXE70 EFI EPS, stock #3488, for used parts, producing 133 parts. They include drivetrain, suspension and steering, body, electrical and engine pieces. Browse the available parts from this UTV below.

Available parts from this 2016 Yamaha Wolverine 700 R Spec 4x4

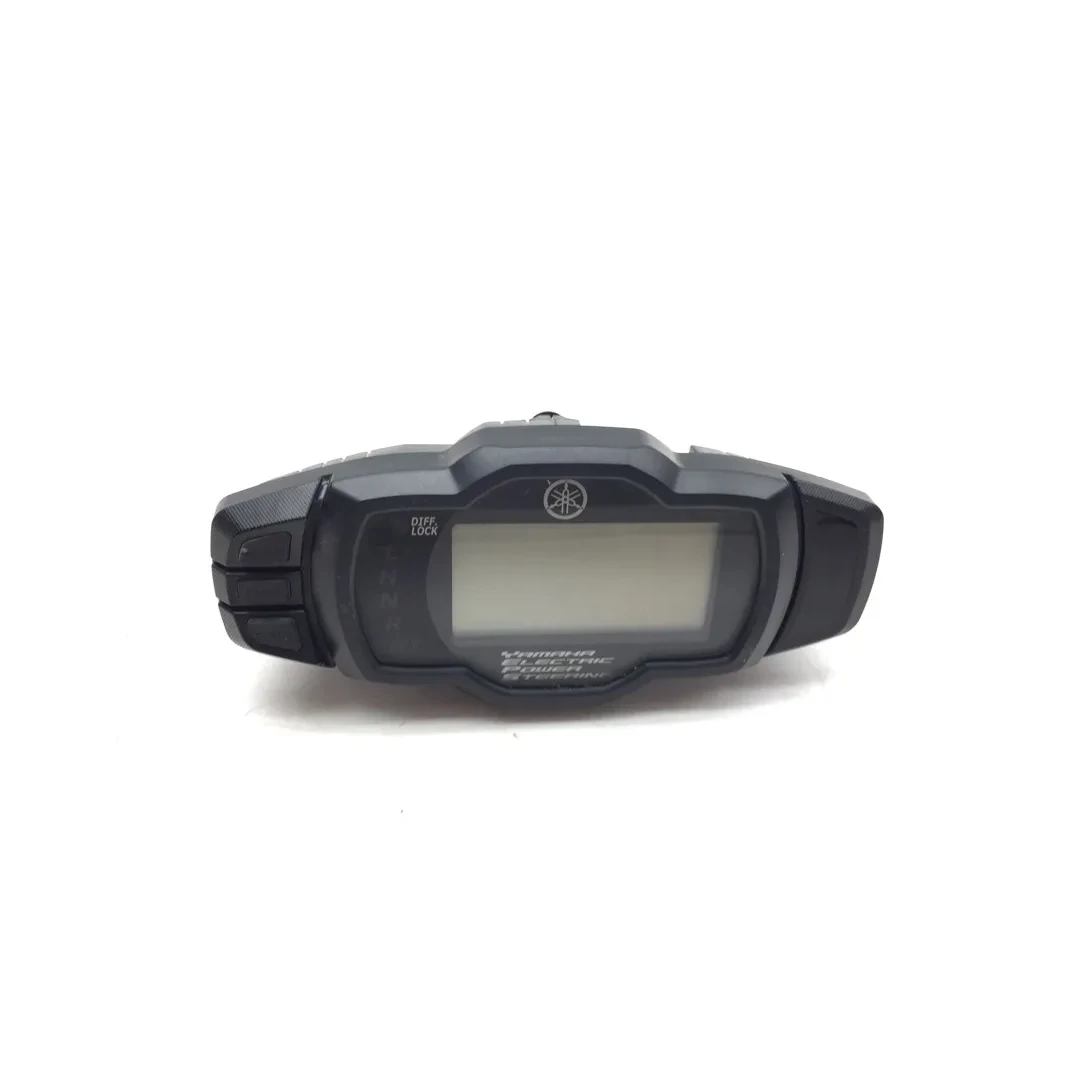

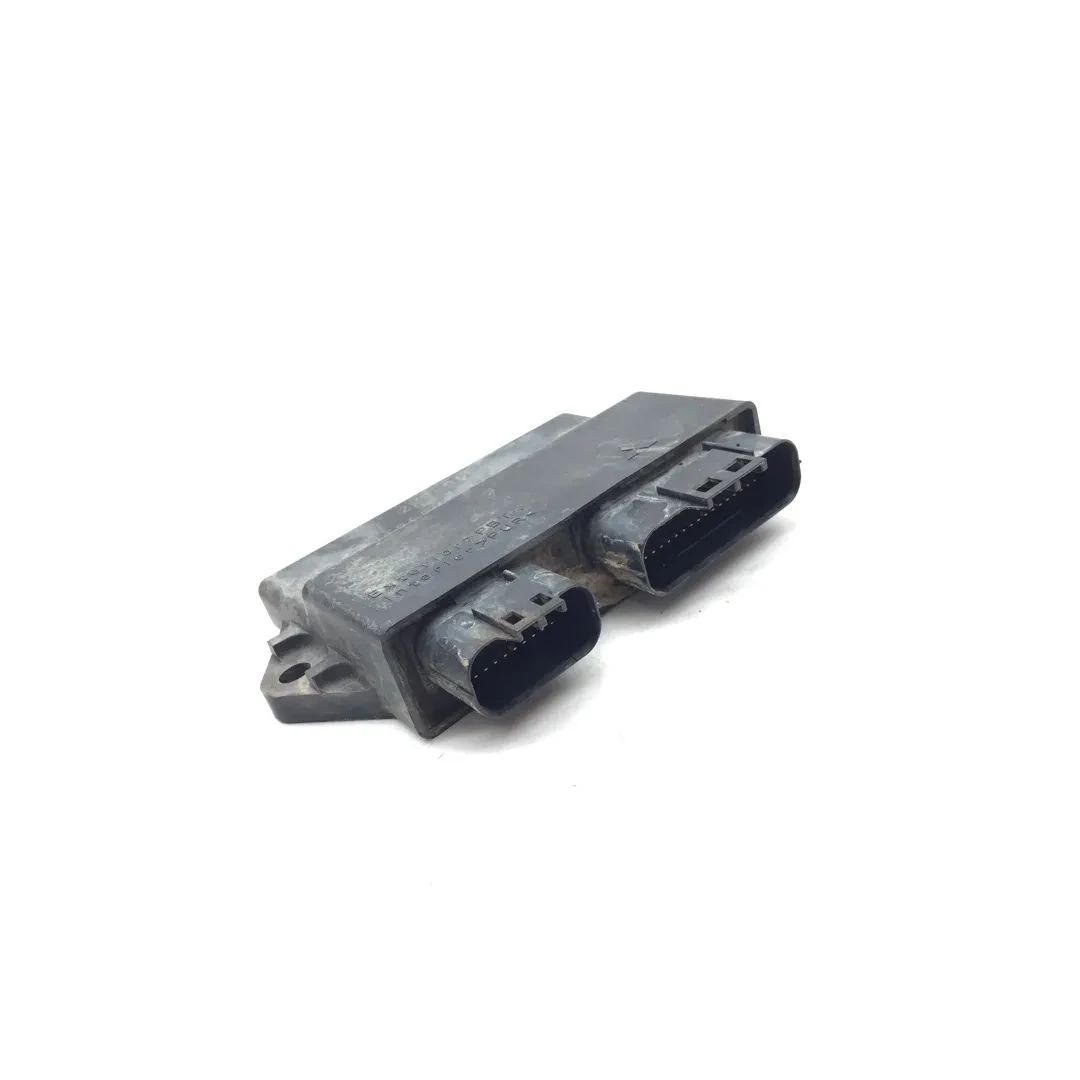

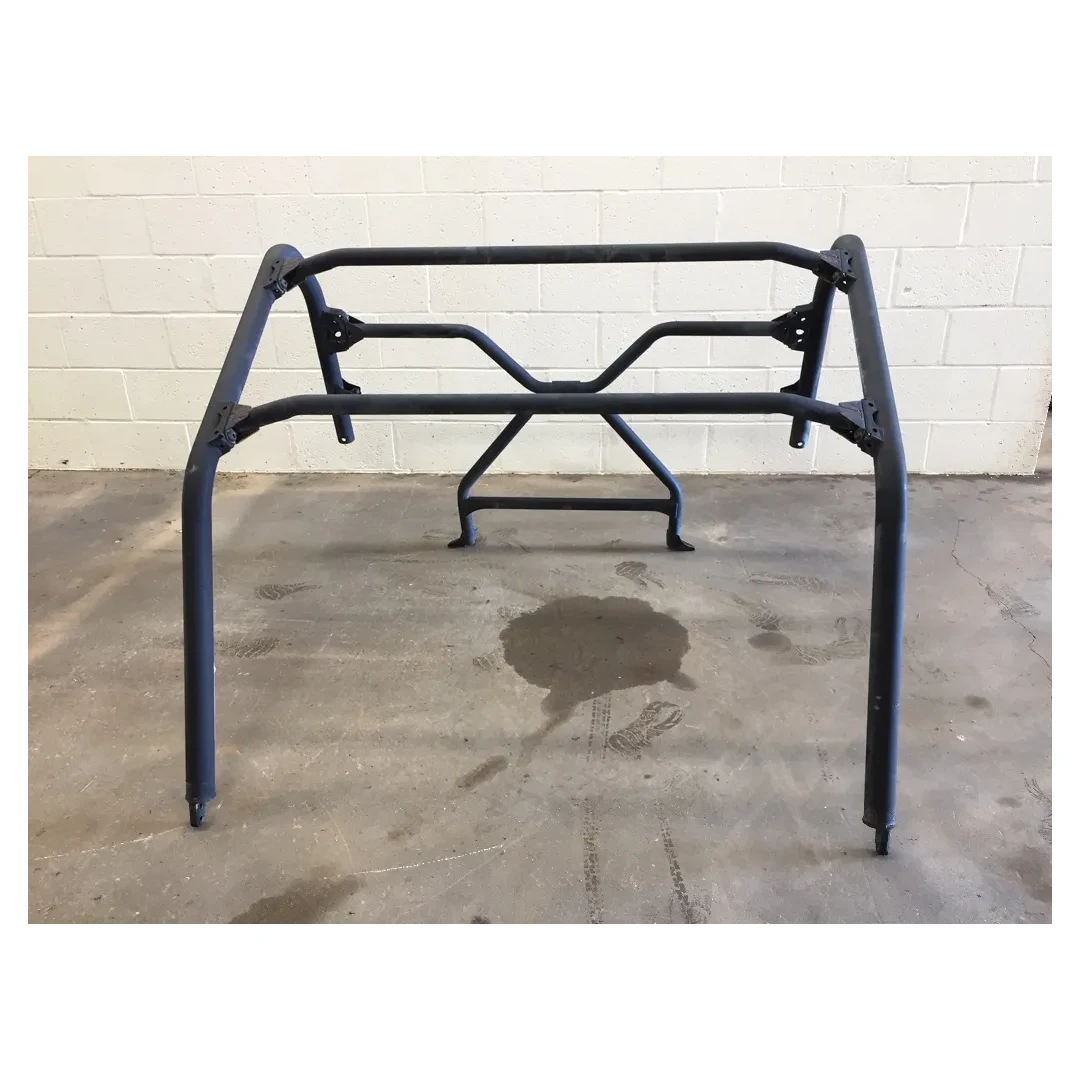

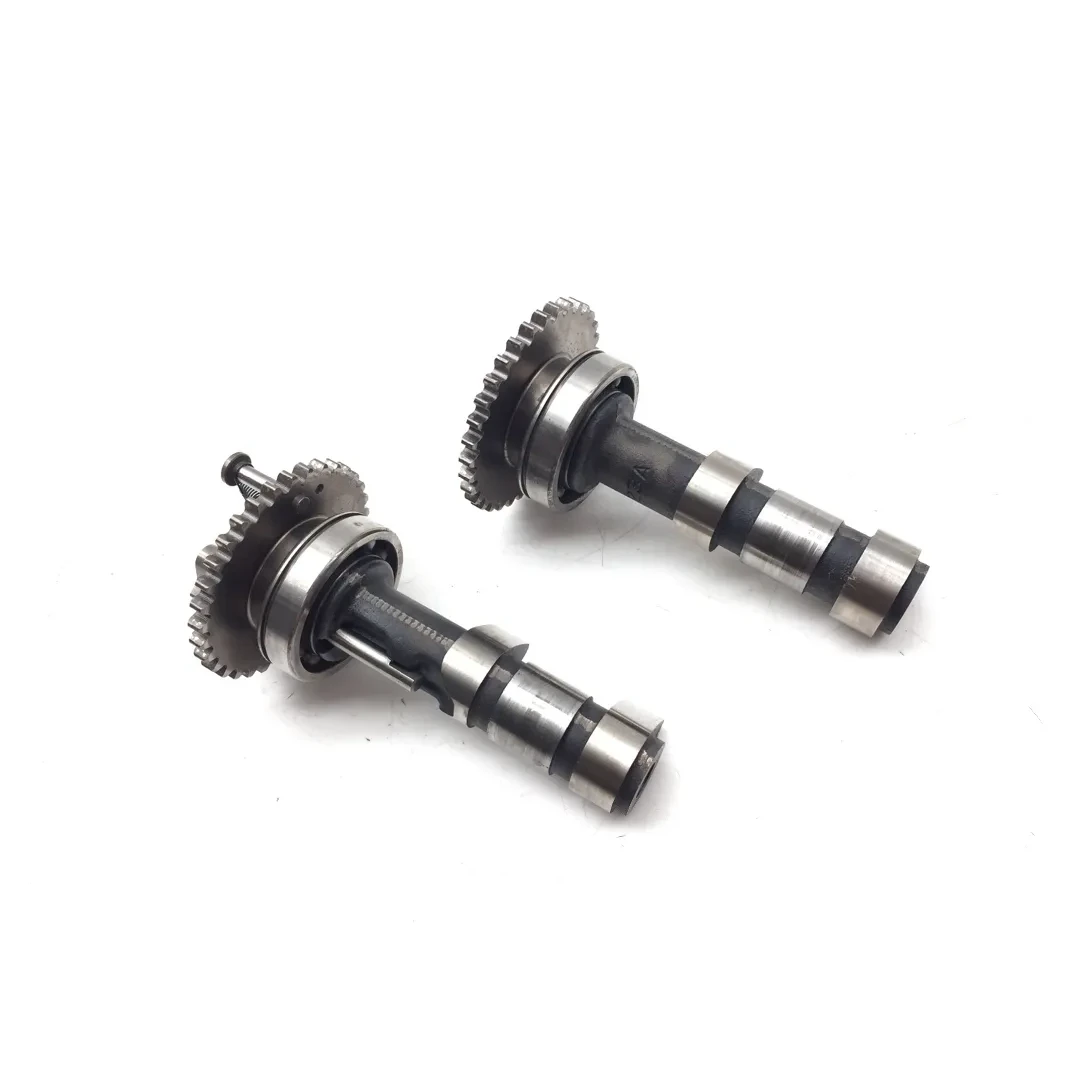

Major assemblies from this machine include the roll cage, rear differential, front differential ring gear and pinion, ignition control module, intake and exhaust camshafts, and speedometer cluster.

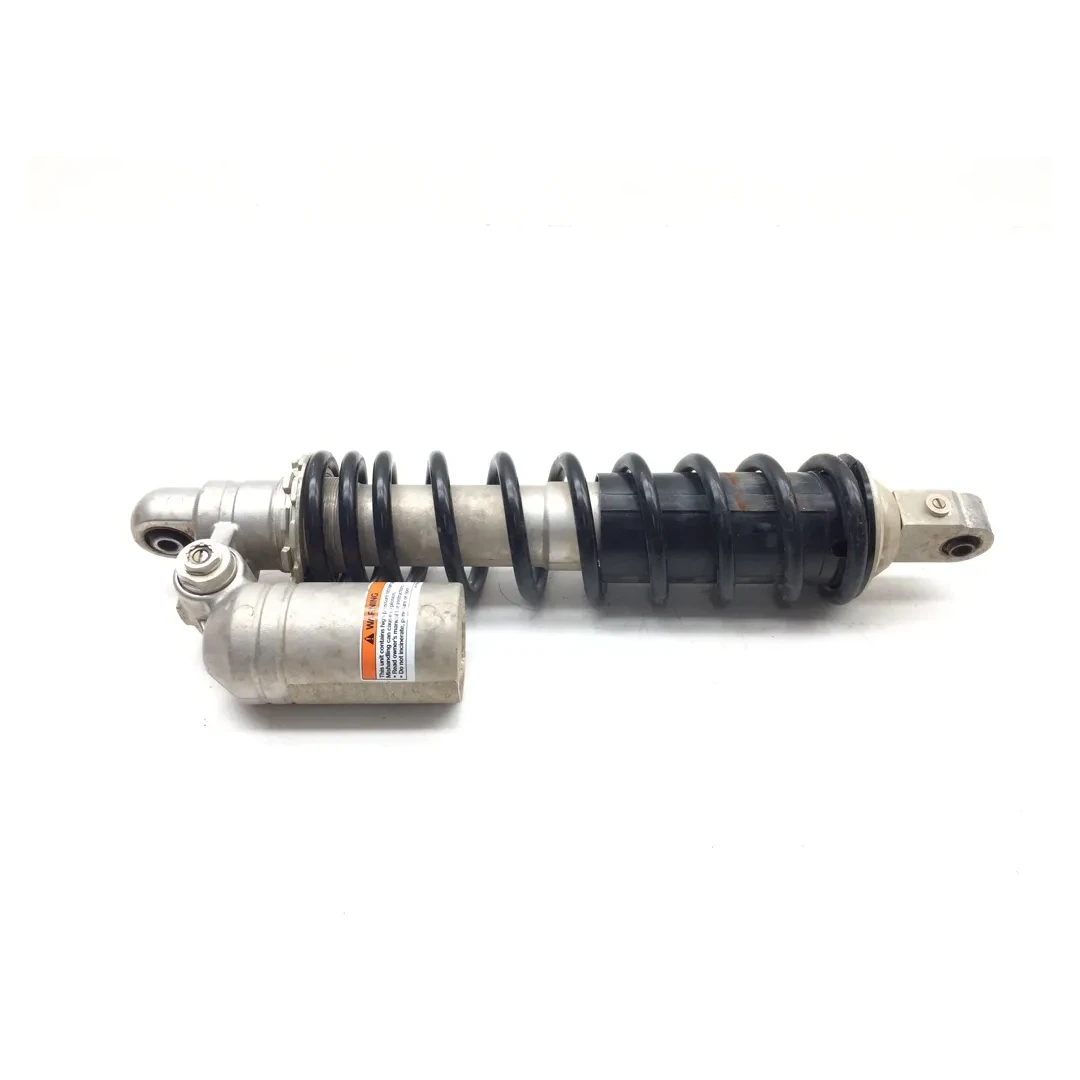

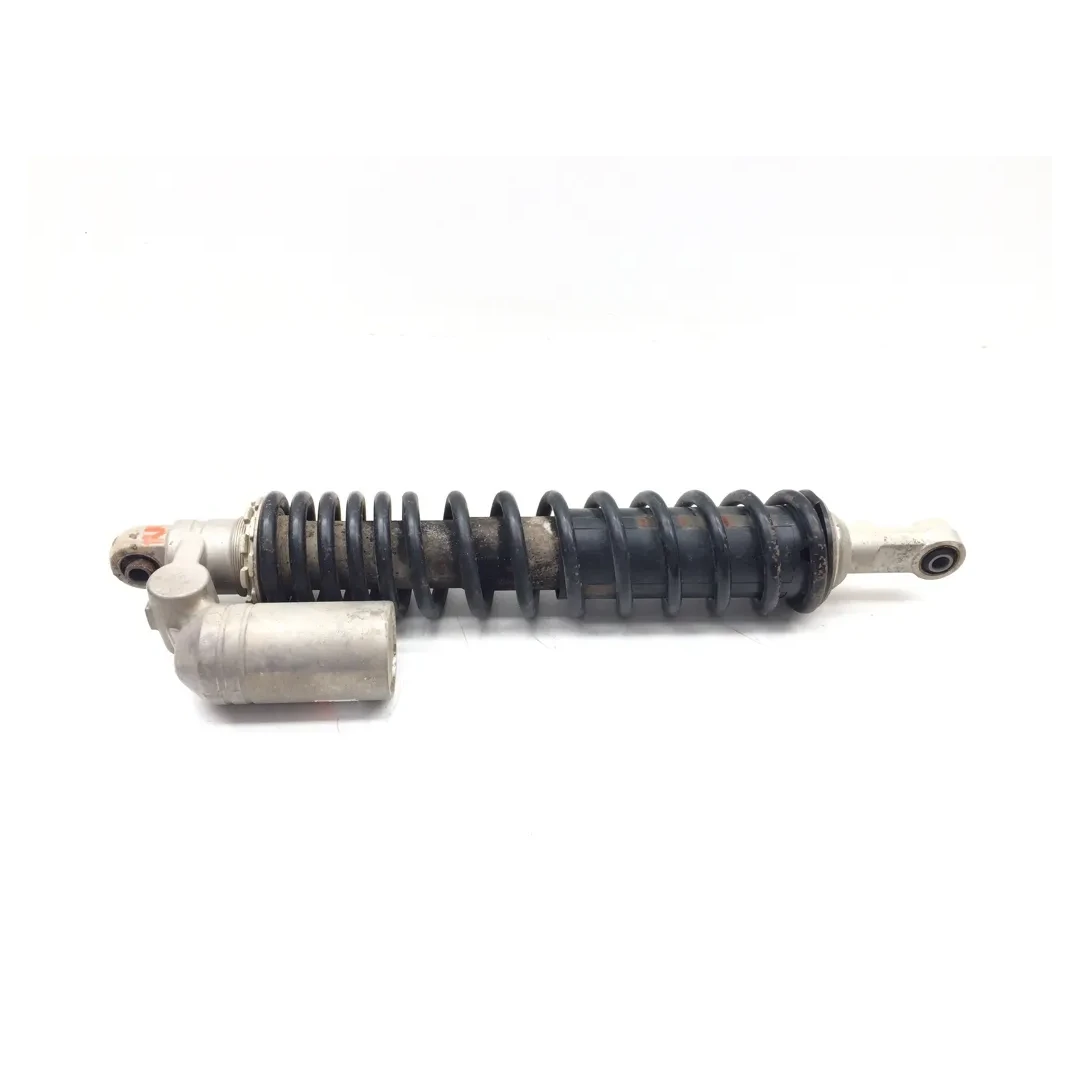

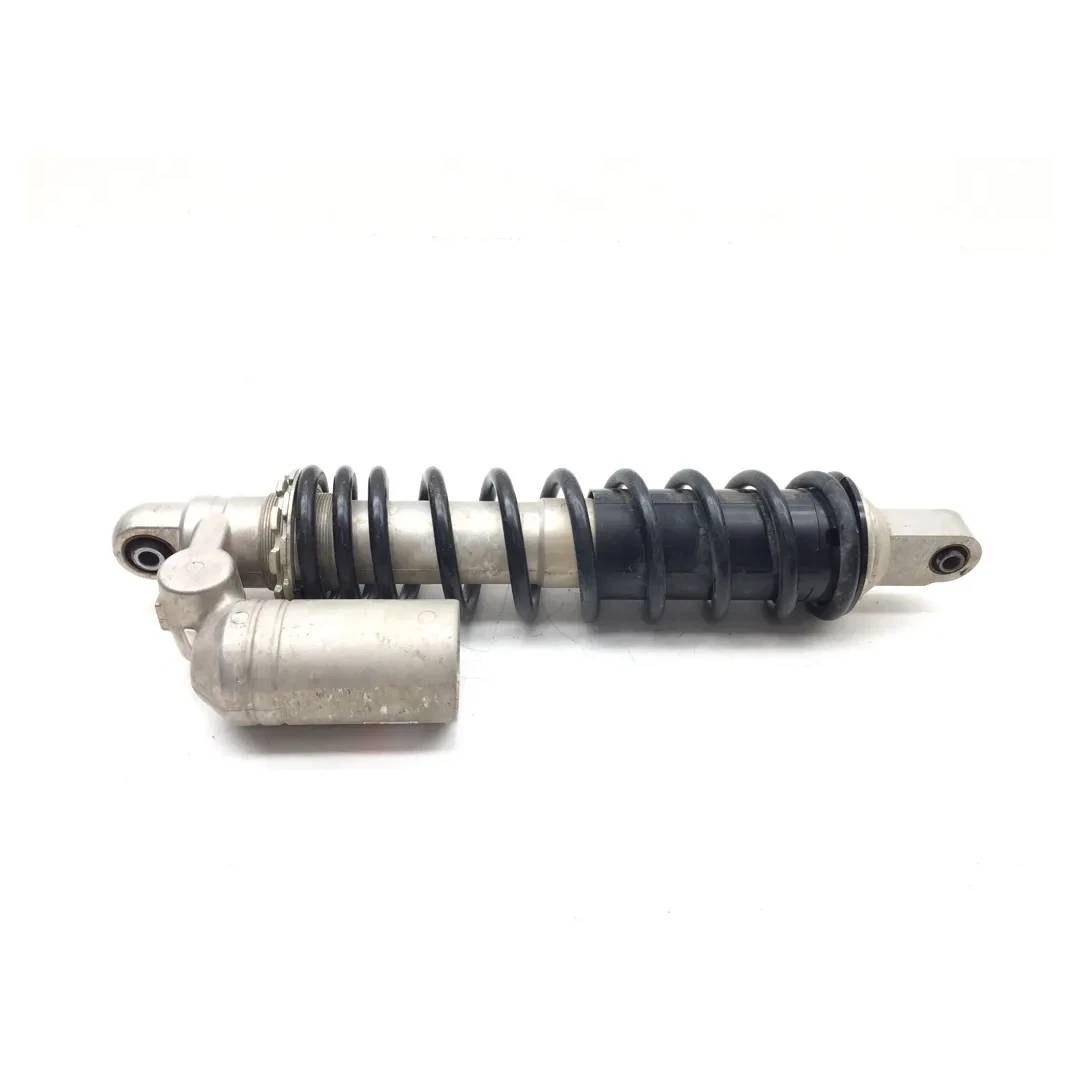

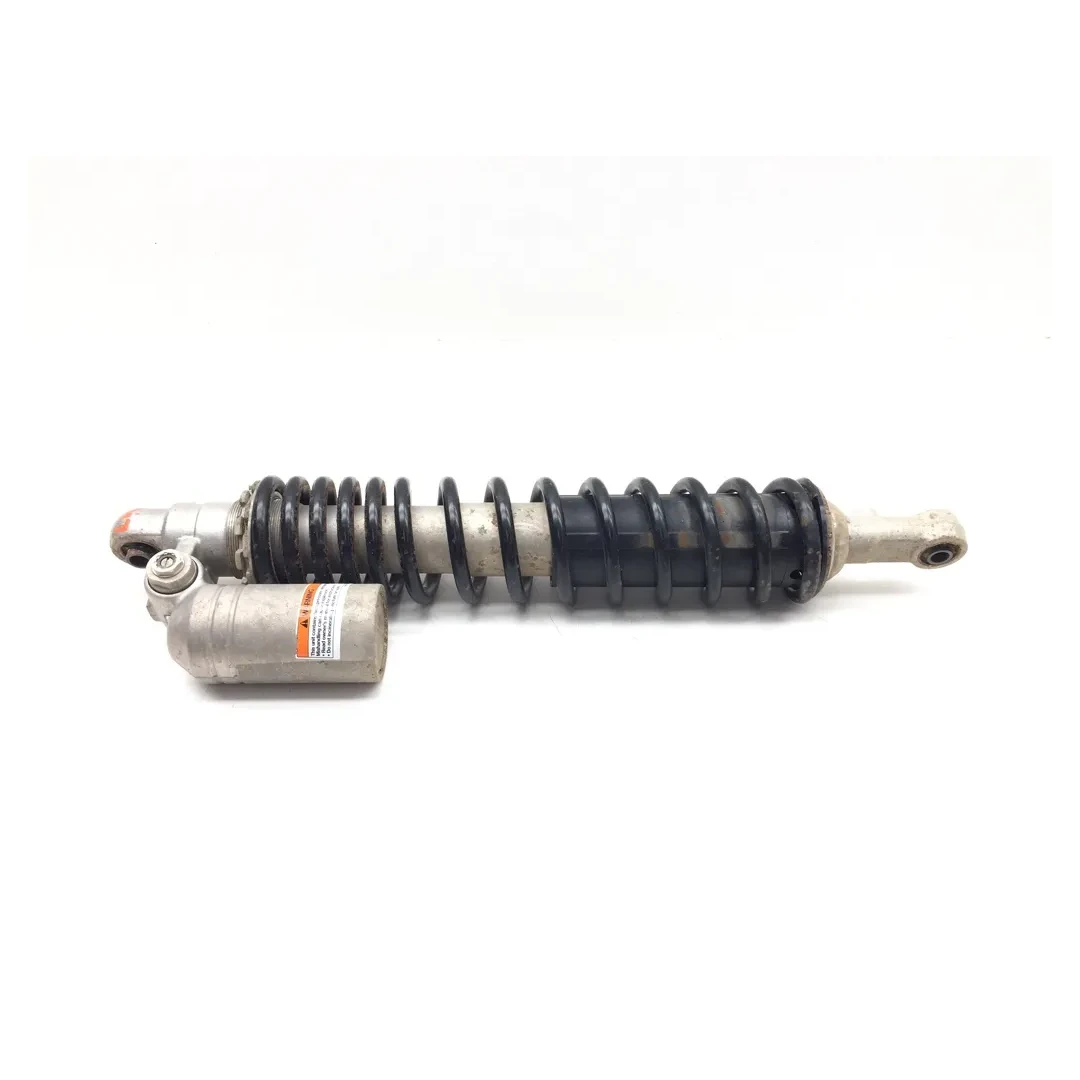

Drivetrain choices include Yamaha Wolverine 700 R Spec 4x4 CV and axle parts, while Yamaha Wolverine 700 R Spec 4x4 suspension and steering parts include rear A-arms, front spindles and knuckles, and shocks and struts.

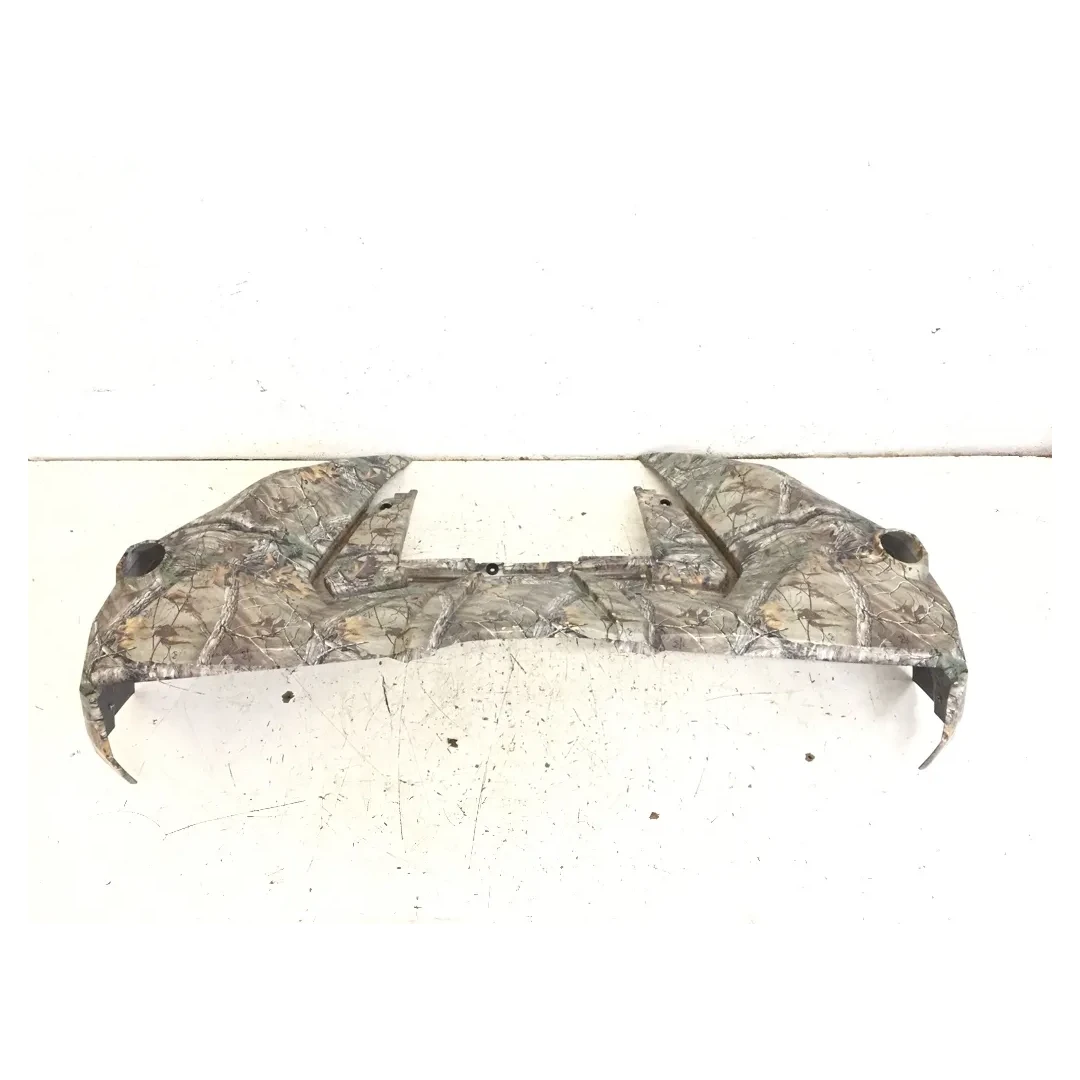

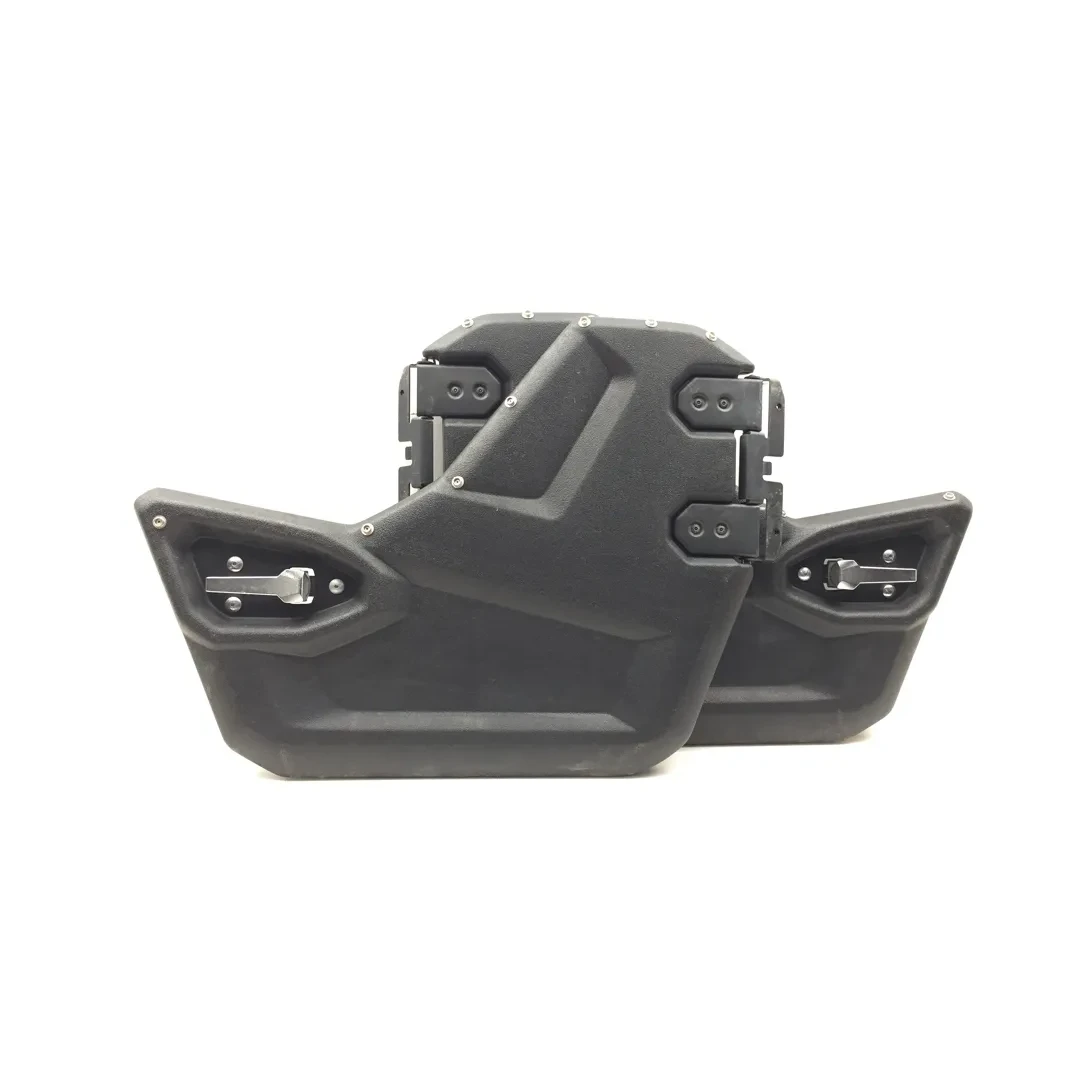

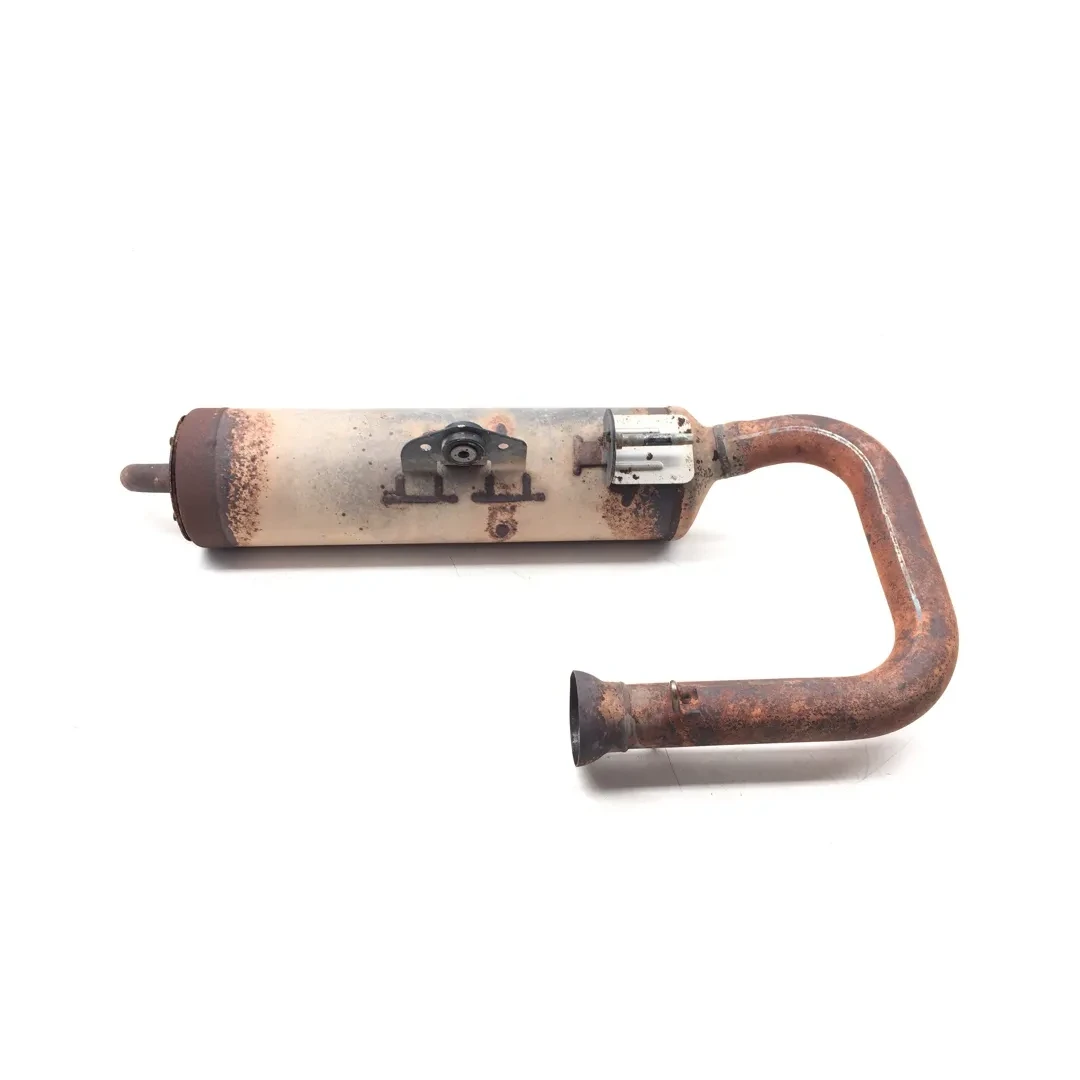

Body and chassis pieces include seat assemblies, wheels, and the left and right door set, along with the exhaust pipe and muffler, primary clutch, and complete cylinder head with valves.

Other parts that fit the Yamaha Wolverine 700 R Spec 4x4

If the primary clutch, differential, axle or body piece you need is no longer available from this machine, the Yamaha Wolverine 700 R Spec 4x4 used parts page has more model-wide used and new options.

Match the OEM number on your component when comparing Yamaha Wolverine 700 parts, including Yamaha Wolverine 700 used parts and new Wolverine 700 parts. Similar names do not make parts interchangeable.

Condition notes for 2016 Yamaha Wolverine 700 R Spec 4x4 parts

These parts have specific condition notes:

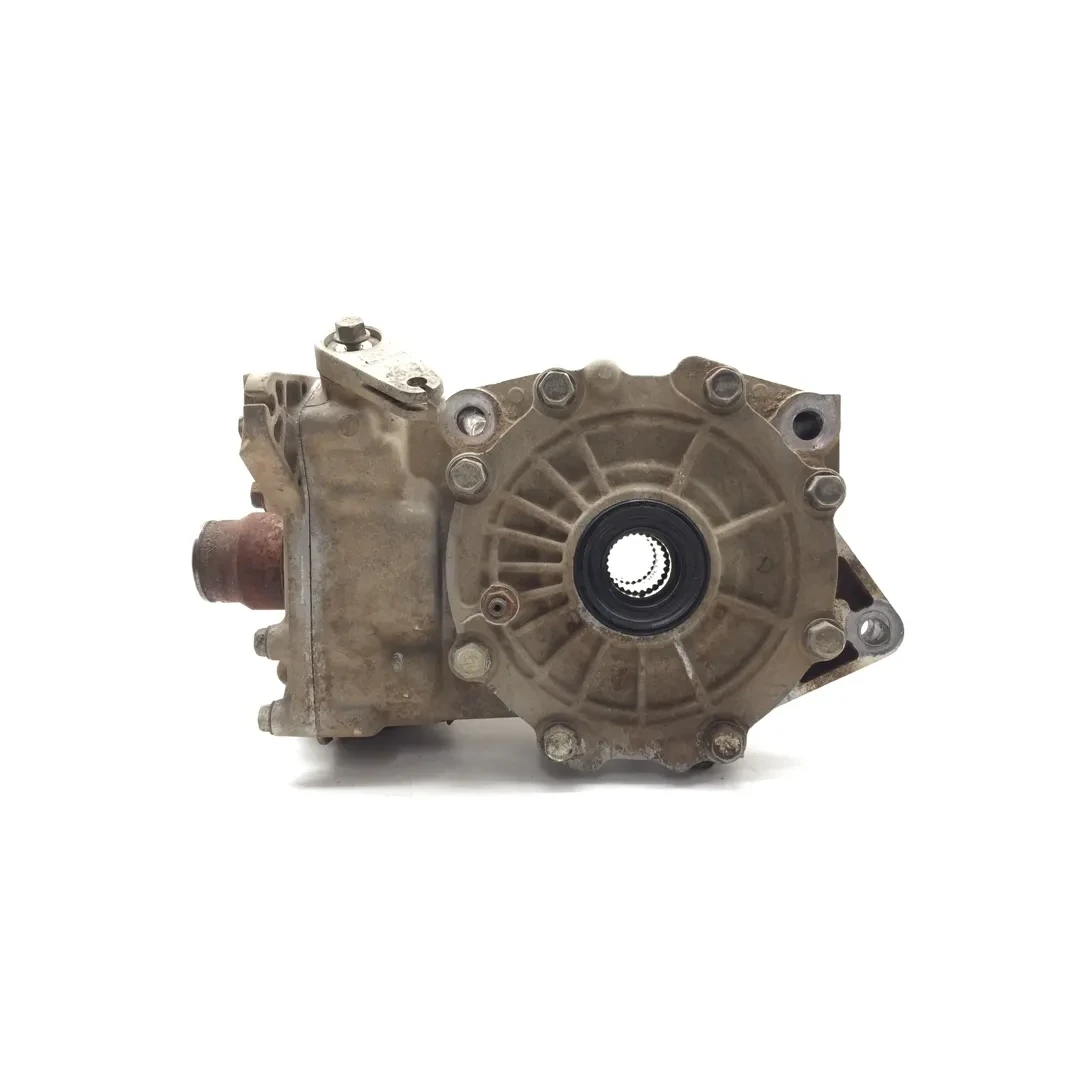

• Rear differential: seals need to be replaced.

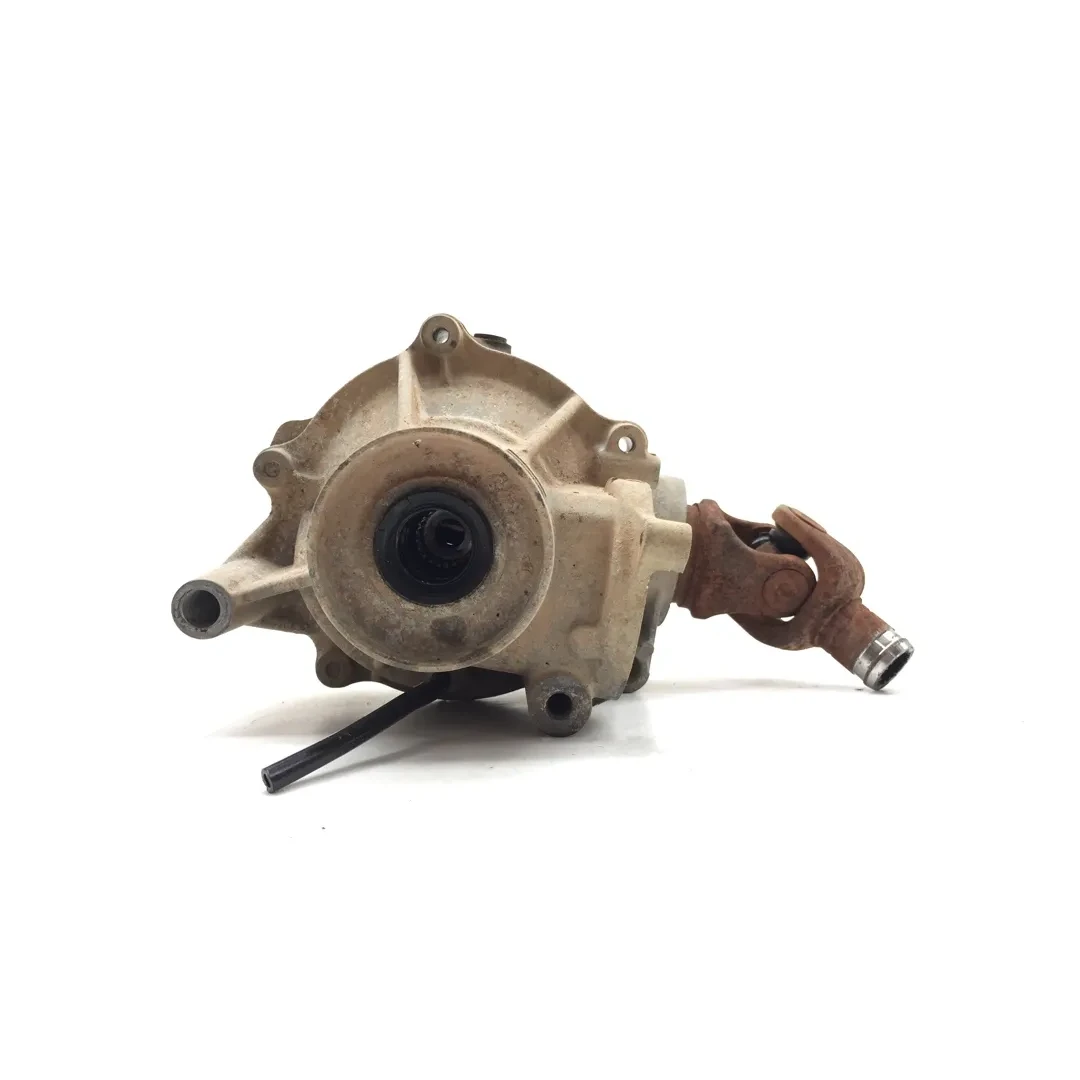

• Front differential ring gear and pinion: seals need to be replaced.

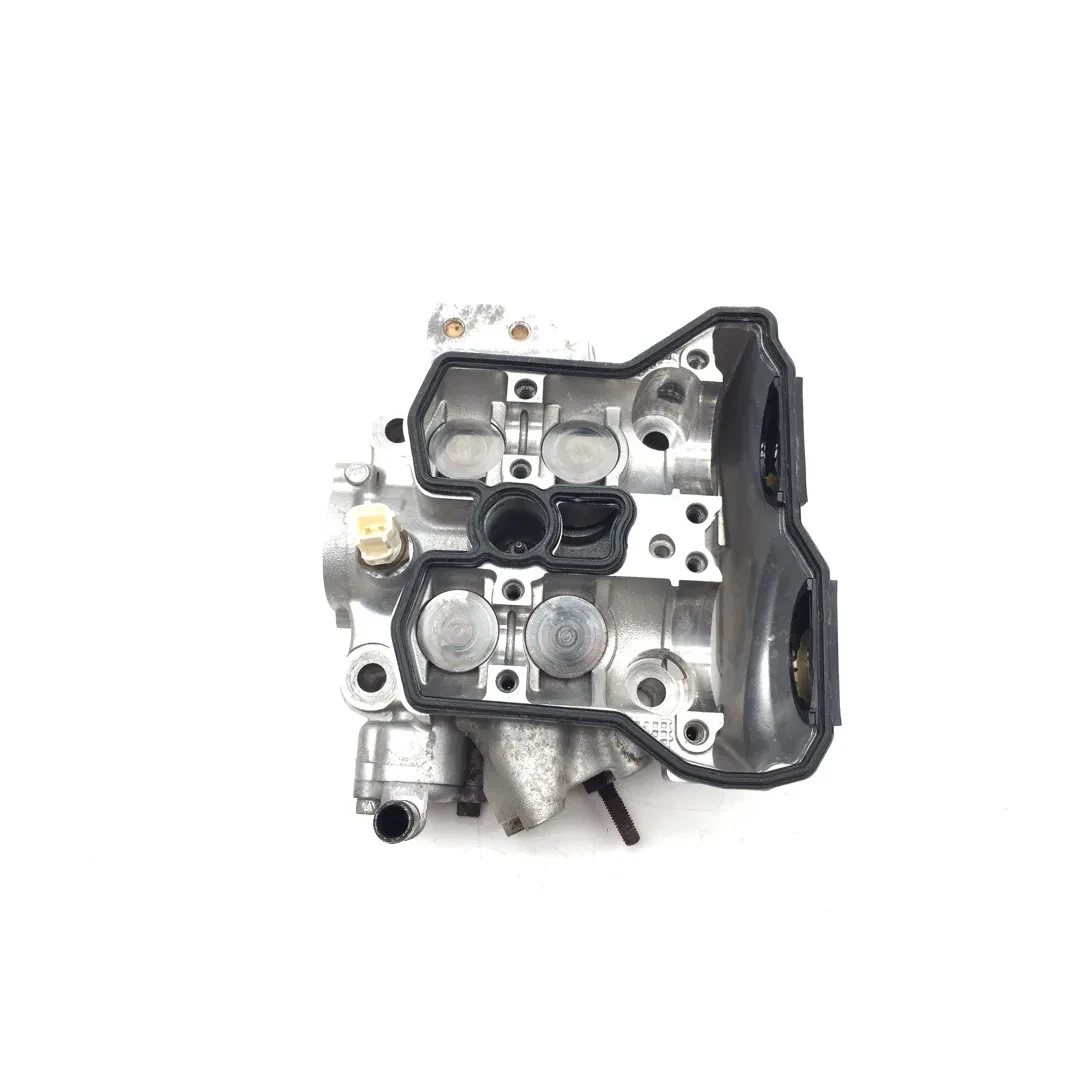

• Cylinder head with valves: valves are damaged.

OEM numbers and fitment for Yamaha Wolverine 700 R Spec 4x4 parts

Compare the OEM number on your original roll cage, rear differential, or front differential ring gear and pinion with the number on the replacement part's page. Use that number to narrow the match, then confirm the year and model application shown on the page.

Part	OEM number	Availability
Ignition Voltage Regulator	1D7-81960-01-00	In stock from this machine
Ignition Starter Solenoid	5B4-81940-00-00	In stock from this machine
Gas Fuel Tank Pump	3B4-13907-10-00	In stock from this machine

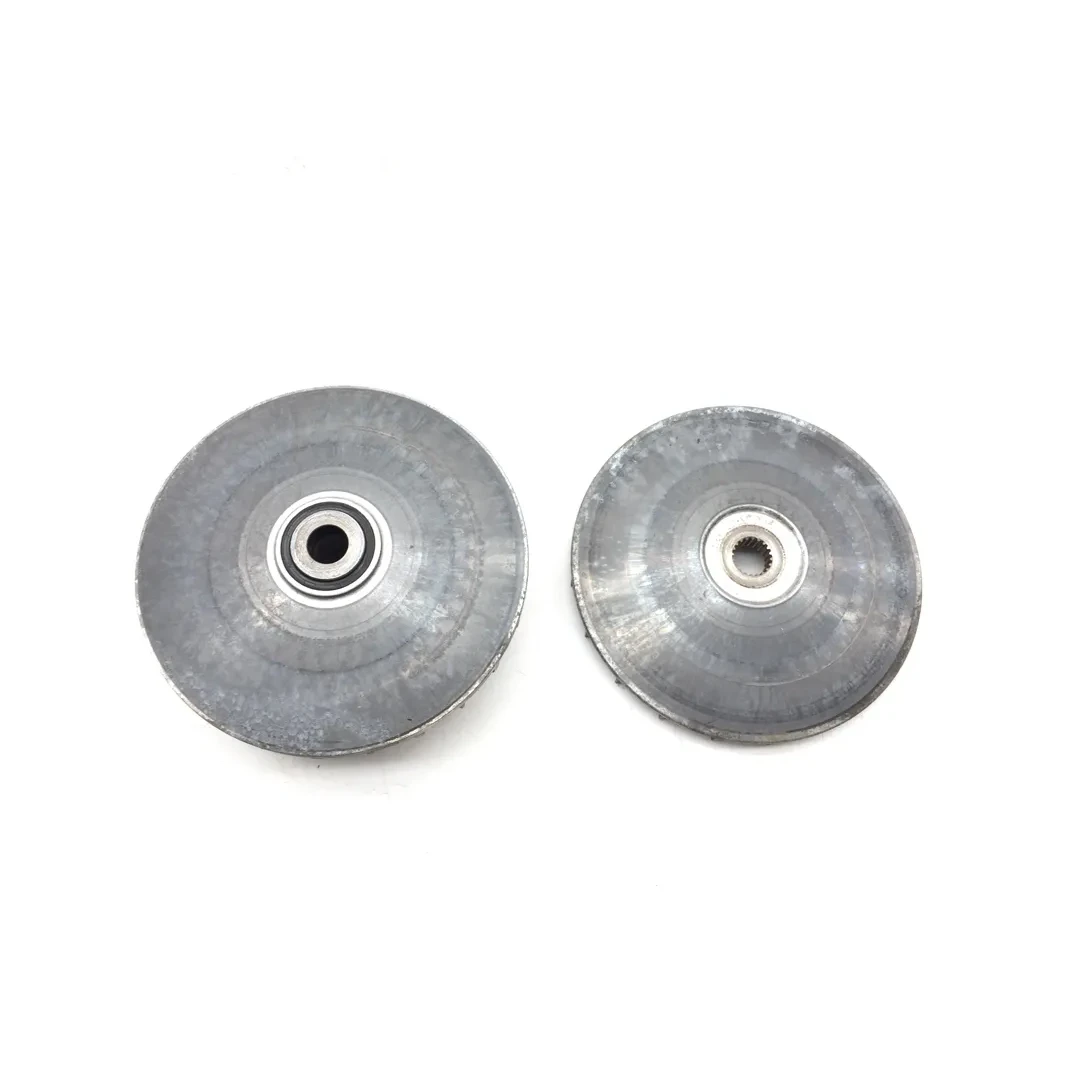

Primary Clutch	3B4-17611-00-00	In stock from this machine
Primary Clutch	3B4-17623-02-00	In stock from this machine

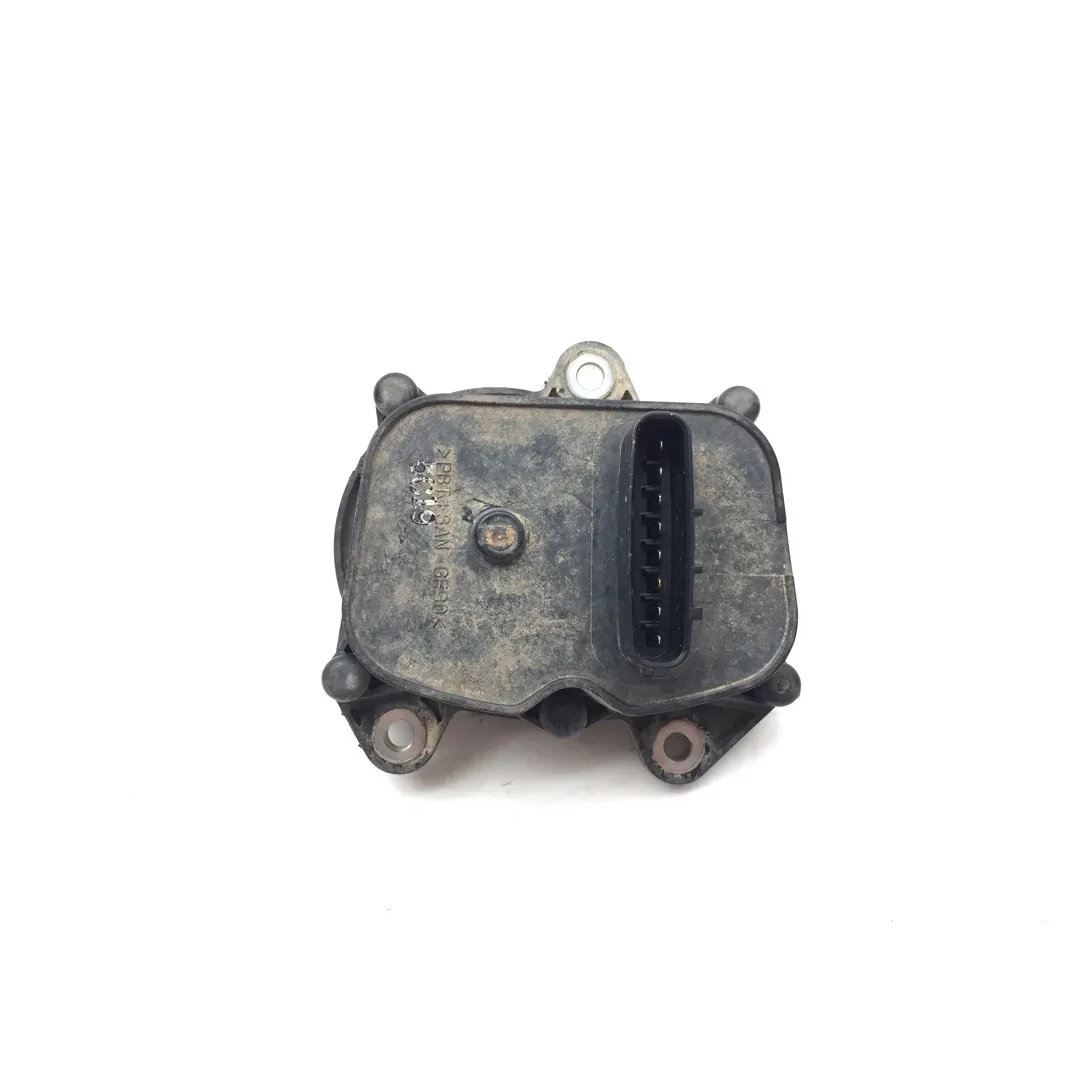

Front Differential Servo Actuator	1HP-4616A-00-00	In stock from this machine
Engine Radiator Cooling Fan	1XD-E2405-00-00	In stock from this machine
Ignition Key Switch	5UG-H2510-00-00	In stock from this machine

Also listed to fit	Years
Yamaha Wolverine 700 4x4	2016-2017
Yamaha Viking 700 4x4	2014-2026
Yamaha Viking VI 4x4	2015-2025
Yamaha Viking VI	2016
Yamaha Grizzly 700 4x4	2007-2024

Frequently asked questions

What parts came off this 2016 Yamaha Wolverine 700 R Spec 4x4?

Stock #3488 supplied used parts from the driveline, suspension, cab, electrical system, and engine of this SxS. It includes complete assemblies and smaller repair pieces, so use the stock #3488 parts section to find the component you need, then read that part's page for its condition note and what is included.

Which other Yamaha models are these Wolverine 700 R Spec 4x4 parts also listed to fit?

Parts from this machine are also listed for the Wolverine 700 4x4 from 2016-2017, Viking 700 4x4 from 2014-2026, Viking VI 4x4 from 2015-2025, Viking VI from 2016, and Grizzly 700 4x4 from 2007-2024. That does not mean every part crosses over, so check fitment for your exact year, make and model before you order.

How can I match an OEM number for the roll cage or differential parts?

Compare your original component with the roll cage numbers 1XD-K831A-00-00 and 1XD-K831E-00-00, rear differential number 2MB-G6101-01-00, or front differential ring gear and pinion number 1XD-46160-00-00. An OEM number narrows the match, but you still need to verify the part page and note that both differential parts need their seals replaced.

Didn't find what you need from Stock #3488?

Browse all Yamaha parts, or see every Yamaha Wolverine 700 R Spec 4x4 part from our other donor machines, and our new Yamaha Wolverine 700 R Spec 4x4 parts.

Check the year, make and model on each listing before you order.

Can't find it? Request a part and tell us exactly what you are looking for.
