Camshaft|SKU #1106-2-476

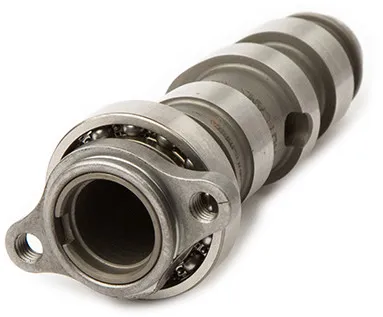

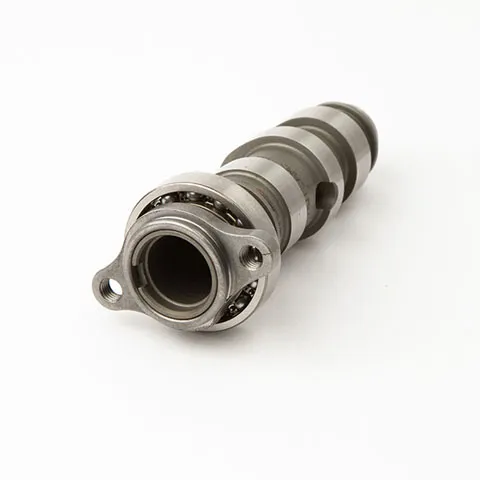

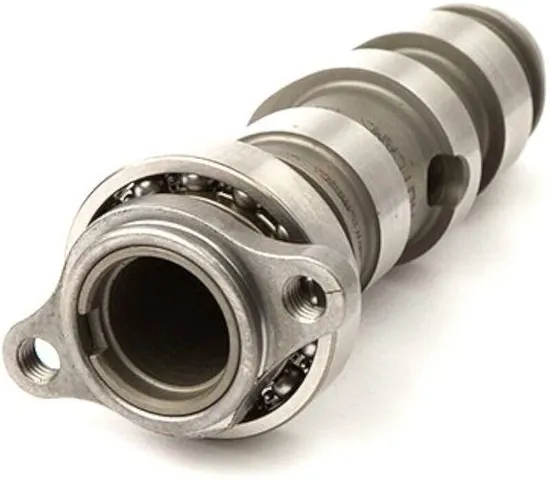

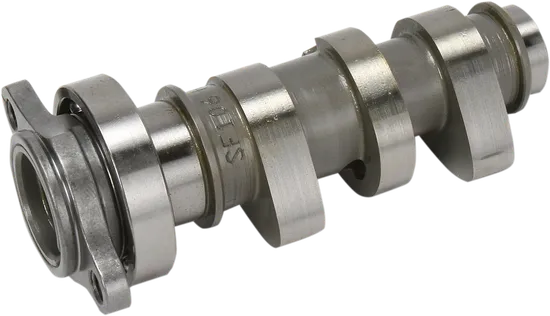

Hot Cams Racing Camshaft Stage 2 Cam Honda TRX450R TRX450ER
$363.84$413.95
NEW PART
Save $50.11 ($13.77%)
FREE Shipping
Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.
IN STOCKIN: 2 NV: 9+ WI: 2 TX: 6 NC: 2 ID: 2
Expert Support
(304) 699-7572$363.84$413.95
Save $413.95
Additional Note
NOTE: Single cam motor. Excellent mid-range and top-end increase. Improved throttle response. Uses stock auto-decompression mechanism and valve springs.
- Mid range and top end increase.
- Improved throttle response.
- Uses stock auto-decompression mechanism.
- Uses stock valve springs.
- For single cam engine.
- Intake Valve Lash: 0.150 mm.
- Exhaust Valve Lash: 0.280 mm.
Description
The camshaft plays an important role in opening and closing valves to enable fuel and air into the combustion chamber of your vehicle. If you are experiencing hesitation with a loss of power, jerking or shaking, more fuel consumption, or producing more emissions than usual, it could be time for a replacement. Intake and Exhaust Camshaft from Hot Cams are offered in 3 stages, with stage 1 cams offering more pulling power, stage 2 cams supplying more horsepower, and stage 3 cams providing the ultimate in rpm horsepower and over rep. Camshafts from Hot Cams are offered as a set of both intake and exhaust cams or are available separately with detailed instructions for simple and easy installation.
Features
- High-performance racing camshaft
- In most applications, Stage 1 cams deliver more torque and Stage 2 cams provide more peak horsepower
- Stage 1 and Stage 2 performance camshafts are drop-in cams that are designed to be used with stock valve springs
- New Gold Series camshafts are designed to provide extra torque and horsepower. These camshafts require the use of stiffer valve springs
- These items are designed exclusively for closed course competition use ONLY. Use on public lands or highways in the state of California is illegal
Specifications
Condition
New
SKU#
1106-2-476
Part
Camshaft
Gasket Application
Exhaust, Intake
Camshaft Type
Stage 2
Intake Lift
10.1 mm
Exhaust Lift
8.8 mm
Intake Duration
248 Degrees
Exhaust Duration
270 Degrees
Intake Lash
0.15 mm
Exhaust Lash
0.28 mm
Intake Center
112 Degrees
Exhaust Center
104.5 Degrees
Intake Lobe Centerline
112 Degrees
Exhaust Lobe Centerline
104.5 Degrees
Sold in Units of
Each
FitmentHonda TRX450R Electric Start
Vehicle Compatibility
Search to verify this part fits your vehicle
Year
Make
Model
Action
Brand Details
If you want to unleash the power that your machine has deep in it, then you need Hot Cams Racing Camshaft Stage 2 Cam Honda TRX450R TRX450ER from Hot Cams™. Hot Cams™ is the leader of innovating design and development for aftermarket high performance cam shafts and valve shim kits. Whether you need something small such as a roller chain or spring or if you need a whole camshaft installation kit, Hot Cams has the high performance parts to make sure your engine unleashes as much power as it can.
