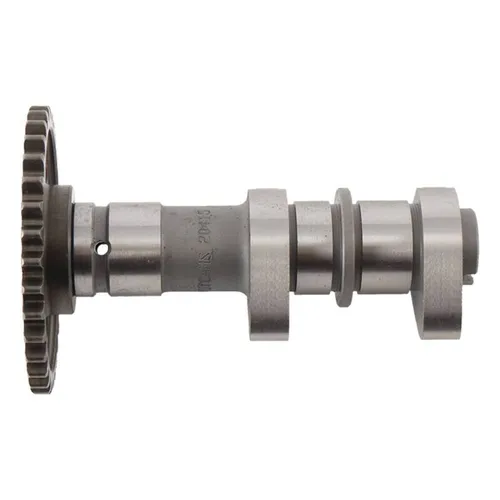

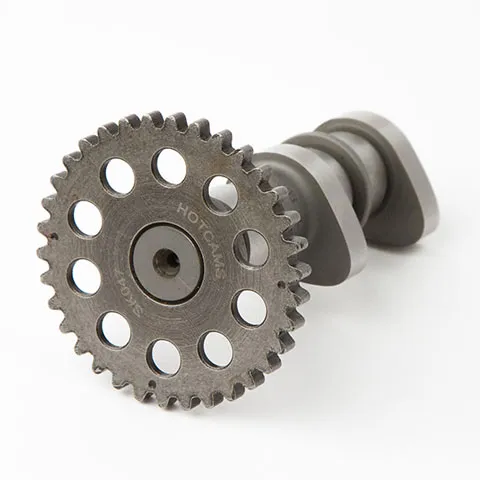

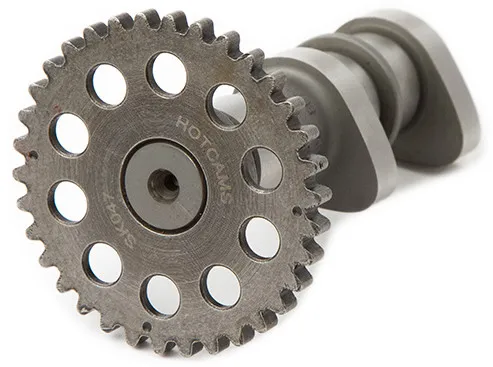

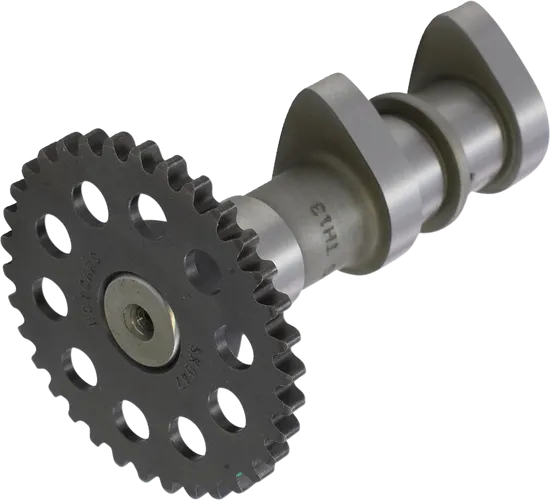

Hot Cams Racing Camshaft Stage 1 Intake Suzuki DRZ400 Quadsport Z400
1 / 7
Camshaft|SKU #2249-1IN-476

Hot Cams Racing Camshaft Stage 1 Intake Suzuki DRZ400 Quadsport Z400

$257.78$290.27
NEW PART

Save $32.49 ($12.60%)

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKIN: 3 NV: 1 WI: 9 ID: 5 TX: 7

Expert Support

(304) 699-7572
$257.78$290.27

Save $290.27

Additional Note

NOTE: Intake and exhaust cams are sold separately. This cam replaces the Hot Cams #2047-1IN. It has better low rpm torque, pulling power and throttle response. For best results it should be used with the Hot Cams #2050-1E exhaust cam. Uses stock KLX400 valve springs.


  • Off-road competition use only.
  • For best results use with 0925-0696 to increase low end and mid range over OEM with no loss on the top end.
  • For dual cam engine.
  • Required to use Suzuki DRZ400 valve springs when installing in Suzuki LTZ400 or Arctic Cat DVX400 or Kawasaki KFX400.
  • Kawasaki KLX400R/SR uses stock KLX400 valve springs.
  • Intake Valve Lash: 0.150 mm.


Description

The camshaft plays an important role in opening and closing valves to enable fuel and air into the combustion chamber of your vehicle. If you are experiencing hesitation with a loss of power, jerking or shaking, more fuel consumption, or producing more emissions than usual, it could be time for a replacement. Intake and Exhaust Camshaft from Hot Cams are offered in 3 stages, with stage 1 cams offering more pulling power, stage 2 cams supplying more horsepower, and stage 3 cams providing the ultimate in rpm horsepower and over rep. Camshafts from Hot Cams are offered as a set of both intake and exhaust cams or are available separately with detailed instructions for simple and easy installation.

Features

  • High-performance racing camshaft
  • In most applications, Stage 1 cams deliver more torque and Stage 2 cams provide more peak horsepower
  • Stage 1 and Stage 2 performance camshafts are drop-in cams that are designed to be used with stock valve springs
  • Select cams feature the New Gold Series camshafts that are designed to provide extra torque and horsepower. These camshafts require the use of stiffer valve springs
  • These items are designed exclusively for closed course competition use ONLY. Use on public lands or highways in the state of California is illegal


Intake Cam Lobe Center104°

Intake Cam Lobe Lift9.140mm

Intake Cam Valve Lash0.150mm

Intake Lobe Duration at 1mm230°

Specifications

Condition
New
SKU#
2249-1IN-476
Part
Camshaft
Gasket Application
Intake
Camshaft Type
Stage 1
Intake Lift
9.14 mm
Intake Duration
230 Degrees
Intake Lash
0.15 mm
Intake Center
104 Degrees
Intake Lobe Centerline
104 Degrees
Sold in Units of
Each

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2004
Make:Suzuki
Model:DRZ400E
Action:View
Year:2005
Make:Suzuki
Model:DRZ400SM
Action:View
Year:2011
Make:Suzuki
Model:DRZ400S
Action:View
Year:2001
Make:Suzuki
Model:DRZ400S
Action:View
Year:2006
Make:Suzuki
Model:DRZ400E
Action:View
Year:2001
Make:Suzuki
Model:DRZ400
Action:View

Brand Details

If you want to unleash the power that your machine has deep in it, then you need Hot Cams Racing Camshaft Stage 1 Intake Suzuki DRZ400 Quadsport Z400 from Hot Cams™. Hot Cams™ is the leader of innovating design and development for aftermarket high performance cam shafts and valve shim kits. Whether you need something small such as a roller chain or spring or if you need a whole camshaft installation kit, Hot Cams has the high performance parts to make sure your engine unleashes as much power as it can.
