Feuling M8 Race Oil Cooled Pump w Camplate
Oil Pump|SKU #7197-342

Feuling M8 Race Oil Cooled Pump w Camplate

$935.96
NEW PART

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 9+ NY: 9+ TX: 9+ NV: 1 NC: 2

Policies & Support

Expert Support

(304) 699-7572

$935.96

Description

Feuling's Race Series Oil Pump and Camplate Kits will increase oil pressure, oil volume, engine oil flow and return oil scavenging.

Features

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more psi of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs (EU: 2,71 Nm) of torque gain to the rear wheel on M-Eight
  • Feuling test results show as much as 50% reduction of engine sump oil level

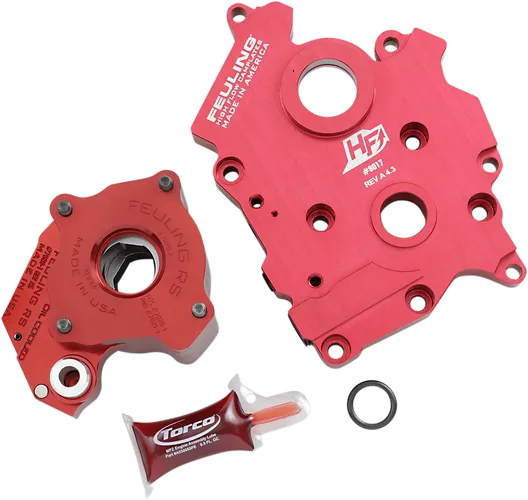

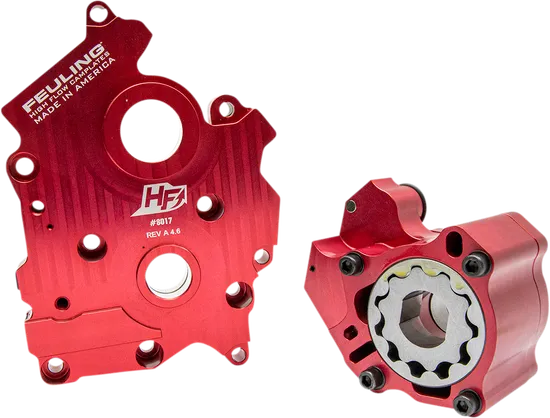

  • Includes a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature (Race Series® M-Eight oil pumps have deeper scavenge kidneys when compared to the HP+ kidneys for increased scavenge volume)
  • Also includes Feuling® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, including matching the oil portholes throughout the camplate to the portholes in the engine case, which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi (EU: 2,06 bar) with full pop-off at 55-60 psi (EU: 3,79 bar - 4,13 bar)
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • Made in the U.S.A.

Specifications

Condition
New
SKU#
7197-342
Part
Oil Pump
Base Color
Red
Surface Finish
Red

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2017
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2017
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2017
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2017
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2017
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2017
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2017
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2017
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2017
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2017
Make:Harley Davidson
Model:Road King Special FLHRXS
Action:View
Year:2018
Make:Harley Davidson
Model:Low Rider 107 FXLR 107
Action:View
Year:2018
Make:Harley Davidson
Model:Heritage Classic 107 FLHC
Action:View
Year:2018
Make:Harley Davidson
Model:Fat Bob 107 FXFB
Action:View
Year:2018
Make:Harley Davidson
Model:Fat Boy 107 FLFB
Action:View
Year:2018
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2018
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2018
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2018
Make:Harley Davidson
Model:Fat Boy S 114 FLFBS
Action:View
Year:2018
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View
Year:2018
Make:Harley Davidson
Model:Breakout 107 FXBR
Action:View
Year:2018
Make:Harley Davidson
Model:Heritage Classic S 114 FLHCS
Action:View
Year:2018
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2018
Make:Harley Davidson
Model:Softail Slim 107 FLSL
Action:View
Year:2018
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2018
Make:Harley Davidson
Model:Fat Bob S 114 FXFBS
Action:View
Year:2018
Make:Harley Davidson
Model:Breakout 114 FXBRS
Action:View
Year:2018
Make:Harley Davidson
Model:Street Bob 107 FXBB
Action:View
Year:2018
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2018
Make:Harley Davidson
Model:Deluxe 107 FLDE
Action:View
Year:2018
Make:Harley Davidson
Model:Road King Special FLHRXS
Action:View
Year:2018
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2018
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2018
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2018
Make:Harley Davidson
Model:Sport Glide FL 107 FLSB
Action:View
Year:2019
Make:Harley Davidson
Model:Fat Boy 107 FLFB
Action:View
Year:2019
Make:Harley Davidson
Model:Fat Bob 107 FXFB
Action:View
Year:2019
Make:Harley Davidson
Model:Heritage Classic 107 FLHC
Action:View
Year:2019
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2019
Make:Harley Davidson
Model:FXDR S 114
Action:View
Year:2019
Make:Harley Davidson
Model:Sport Glide FL 107 FLSB
Action:View
Year:2019
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2019
Make:Harley Davidson
Model:Softail Slim 107 FLSL
Action:View
Year:2019
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2019
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2019
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2019
Make:Harley Davidson
Model:Heritage Classic S 114 FLHCS
Action:View
Year:2019
Make:Harley Davidson
Model:Low Rider 107 FXLR 107
Action:View
Year:2019
Make:Harley Davidson
Model:Deluxe 107 FLDE
Action:View
Year:2019
Make:Harley Davidson
Model:Breakout 114 FXBRS
Action:View
Year:2019
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2019
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2019
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2019
Make:Harley Davidson
Model:Fat Boy S 114 FLFBS
Action:View
Year:2019
Make:Harley Davidson
Model:Street Bob 107 FXBB
Action:View
Year:2019
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2019
Make:Harley Davidson
Model:Breakout 107 FXBR
Action:View
Year:2019
Make:Harley Davidson
Model:Road King Special FLHRXS
Action:View
Year:2019
Make:Harley Davidson
Model:Fat Bob S 114 FXFBS
Action:View
Year:2020
Make:Harley Davidson
Model:Heritage Classic S 114 FLHCS
Action:View
Year:2020
Make:Harley Davidson
Model:Sport Glide FL 107 FLSB
Action:View
Year:2020
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2020
Make:Harley Davidson
Model:Street Bob 107 FXBB
Action:View
Year:2020
Make:Harley Davidson
Model:Road Glide CVO FLTRXSE
Action:View
Year:2020
Make:Harley Davidson
Model:Road Glide Limited Edition FLTRK
Action:View
Year:2020
Make:Harley Davidson
Model:Tri Glide CVO FLHTCUTGSE
Action:View
Year:2020
Make:Harley Davidson
Model:Low Rider S 114 FXLRS
Action:View
Year:2020
Make:Harley Davidson
Model:Softail Standard 107 FXST
Action:View
Year:2020
Make:Harley Davidson
Model:FXDR S 114
Action:View
Year:2019
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2020
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2020
Make:Harley Davidson
Model:Breakout 114 FXBRS
Action:View
Year:2020
Make:Harley Davidson
Model:Fat Bob S 114 FXFBS
Action:View
Year:2020
Make:Harley Davidson
Model:Deluxe 107 FLDE
Action:View
Year:2020
Make:Harley Davidson
Model:Heritage Classic 107 FLHC
Action:View
Year:2020
Make:Harley Davidson
Model:Fat Boy S 114 FLFBS
Action:View
Year:2020
Make:Harley Davidson
Model:Low Rider 107 FXLR 107
Action:View
Year:2020
Make:Harley Davidson
Model:Softail Slim 107 FLSL
Action:View
Year:2018
Make:Harley Davidson
Model:Road Glide Custom CVO FLTRXSE
Action:View
Year:2020
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2020
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2020
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2020
Make:Harley Davidson
Model:Road King Special FLHRXS
Action:View
Year:2020
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2020
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2017
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2019
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2020
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2020
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2019
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2018
Make:Harley Davidson
Model:Road Glide CVO FLTRXSE
Action:View
Year:2019
Make:Harley Davidson
Model:Road Glide CVO FLTRXSE
Action:View
Year:2020
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View
Year:2019
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View
Year:2017
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling M8 Race Oil Cooled Pump w Camplate is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
