Feuling HP+ High Volume Engine Twin Cooled Oil Pump w Cam Plate
1 / 4
Oil Pump|SKU #7198-342

Feuling HP+ High Volume Engine Twin Cooled Oil Pump w Cam Plate

$817.43$899.17
NEW PART

Save $81.74 ($10.00%)

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 9 NY: 1 TX: 2 NV: 1 NC: 2

Expert Support

(304) 699-7572
$817.43$899.17

Save $899.17

Description

Feuling's HP+ High Volume Oil Pumps are made from high-quality billet aluminum and will provide 40 percent more pressure volume than your stock engine oil pump.

Features

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 (EU: 0,69 - 2,06 Bar) more psi of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs (EU: 2,71 Nm) of torque gain to the rear wheel on M-Eight
  • Feuling test results show as much as 50% reduction of engine sump oil level

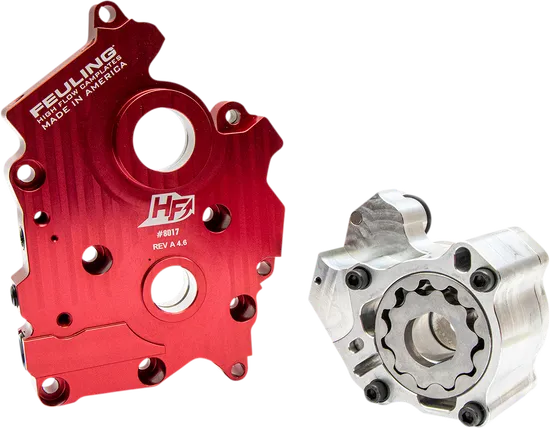

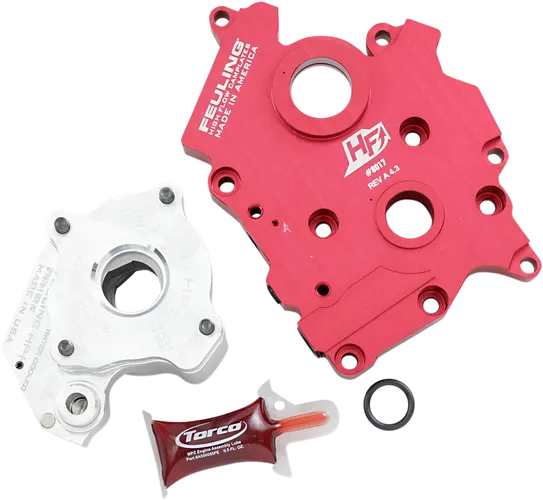

  • Includes a billet 6061 aluminum high-volume oil pump and Feulings® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi (EU: 2,06 bar) with full pop-off at 55-60 psi (EU: 3,79 bar - 4,13 bar)
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • Made in the U.S.A.

Specifications

Condition
New
SKU#
7198-342
Part
Oil Pump
Material
Billet Aluminum
Base Color
Red
Surface Finish
Raw
Flow Rate
Hi Flow

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2017
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2017
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2017
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2017
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2017
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2018
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling HP+ High Volume Engine Twin Cooled Oil Pump w Cam Plate is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
