Oil Pump|SKU #7196-342

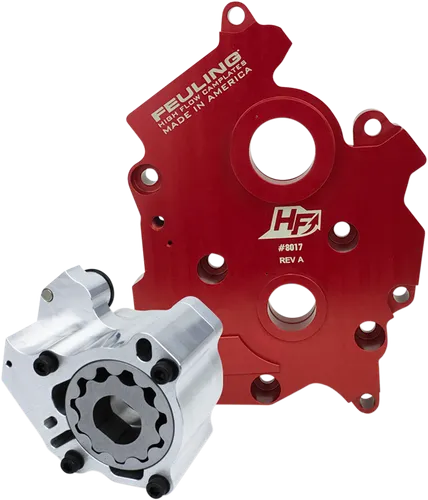

Feuling HP+ High Volume Engine Oil Cooled Pump w Cam Plate
$817.43$899.17
NEW PART
Save $81.74 ($10.00%)
FREE Shipping
Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.
IN STOCKWI: 9 NY: 6 NV: 3 NC: 1
Expert Support
(304) 699-7572$817.43$899.17
Save $899.17
Description
Feuling's HP+ High Volume Oil Pumps are made from high-quality billet aluminum and will provide 40 percent more pressure volume than your stock engine oil pump.
Features
- Increase oil pressure, oil volume, engine oil flow and return oil scavenging
- Quieter and smoother engine operation
- Engine temperatures run 15°-25° cooler
- Oil temperatures run 15°-30° cooler
- 10-30 (EU: 0,69 - 2,06 Bar) more psi of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Test results show 2 horsepower gain and 2 ft/lbs (EU: 2,71 Nm) of torque gain to the rear wheel on M-Eight
- Feuling test results show as much as 50% reduction of engine sump oil level

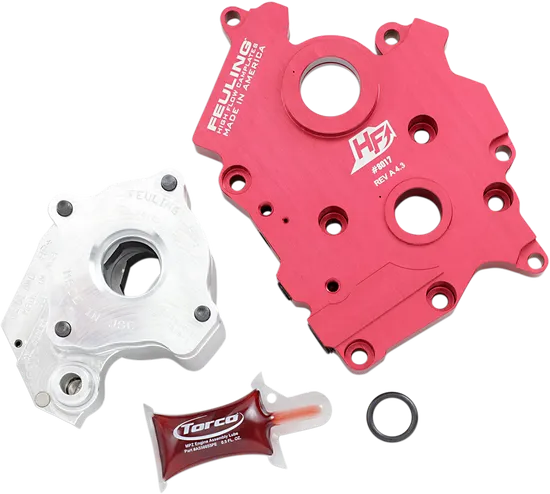

- Includes a billet 6061 aluminum high-volume oil pump and Feulings® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or Feuling OE+ camplates
- Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
- Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi (EU: 2,06 bar) with full pop-off at 55-60 psi (EU: 3,79 bar - 4,13 bar)
- Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
- Feuling oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
- 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- Made in the U.S.A.
Specifications
Condition
New
SKU#
7196-342
Part
Oil Pump
Flow Rate
Hi Flow
Material
Billet Aluminum
Base Color
Red
Surface Finish
Raw
FitmentHarley Davidson Road Glide Special FLTRXS, Street Glide Special FLHXS, Street Glide CVO FLHXSE, Road Glide FLTRX, Limited Edition FLTRK, Road Glide CVO FLTRXSE, Freewheeler FLRT, Road King Special FLHRXS, Low Rider 107 FXLR 107, Heritage Classic 107 FLHC, Fat Boy S 114 FLFBS, Heritage Classic S 114 FLHCS, Softail Slim 107 FLSL, Fat Bob S 114 FXFBS, Breakout 114 FXBRS, Street Bob 107 FXBB, Deluxe 107 FLDE, Sport Glide FL 107 FLSB, FXDR S 114, Low Rider S 114 FXLRS, Softail Standard 107 FXST, Electra Glide EFI FLHTI, Electra Glide Police EFI FLHTPI, Street Glide EFI FLHXI, Road King EFI FLHRI, Road Glide Custom FLTRX, Tri Glide CVO FLHTCUTGSE, Ultra Limited Electra Glide FLHTK, Ultra Limited CVO Electra Glide FLHTKSE, Tri Glide Ultra Classic FLHTCUTG, Fat Bob 107 FXFB, Fat Boy 107 FLFB, Breakout 107 FXBR, Road Glide Custom CVO FLTRXSE, Electra Glide Ultra Classic EFI FLHTCUI, Ultra Limited Low Electra Glide FLHTKL, Road Glide Ultra Ultra FLTRU
Vehicle Compatibility
Search to verify this part fits your vehicle
Year
Make
Model
Action
2017
Harley Davidson
Road Glide Special FLTRXS
2017
Harley Davidson
Street Glide Special FLHXS
2017
Harley Davidson
Freewheeler FLRT
2017
Harley Davidson
Street Glide CVO FLHXSE
2017
Harley Davidson
Road King Special FLHRXS
Brand Details
Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling HP+ High Volume Engine Oil Cooled Pump w Cam Plate is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
