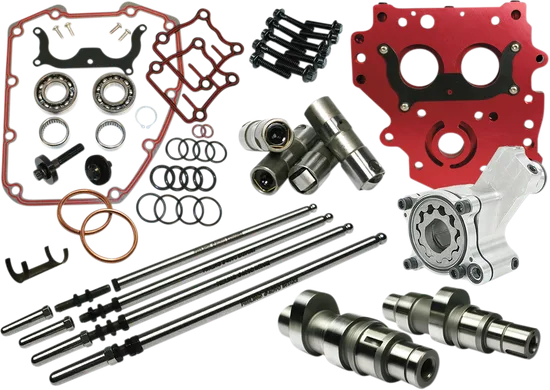

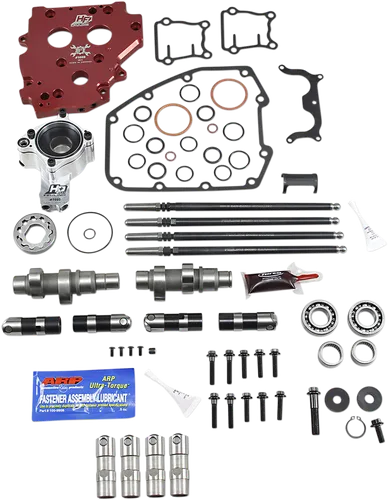

Feuling HP+ Complete Gear Drive Cam Kit 525 w Quick Install Pushrod
Camshaft|SKU #7204-342

Feuling HP+ Complete Gear Drive Cam Kit 525 w Quick Install Pushrod

$1,676.75
NEW PART

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 2

Policies & Support

Expert Support

(304) 699-7572

$1,676.75

Additional Note

Note: Comes with the Quick Install Adjustable Push Rods

Description

Feuling complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

Features

  • All necessary components from top-to-bottom of the camchest
  • Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 25-35 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 15-30 more PSI of oil pressure
  • Eliminate wet sumping, blow by and oily air cleaners
  • Heavy-duty Fast Install adjustable pushrods can be installed without removing top rocker covers
  • Includes Feuling® HP+® high-volume oil pump, high-flow billet cam plate, REAPER® Series camshafts, HP+® hydraulic roller lifters, Fast Install® adjustable pushrods, Timken®/Koyo® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
  • Conversion chain drive kits update early mechanical-style tensioner systems to the new late-style hydraulic tensioner chain drive system; these kits utilize conversion Reaper® camshafts which have '99-'06 inner-cam journals matched with '07-'17 outer-cam journals, allowing the use of the '07-'17 cam plate and hydraulic chain drive tensioner system; hydraulic chain drive components purchased separately
  • Installation of gear drive cams will require separate purchase of S&S or Andrews 4-gear drive kit

Specifications

Condition
New
SKU#
7204-342
Part
Camshaft
Exhaust Close
5 Degrees
Exhaust Open
51 Degrees
Intake Open
4 Degrees
Intake Close
42 Degrees
Camshaft Type
Gear Drive
Intake Lift
0.525 in
Exhaust Lift
0.535 in
Intake Duration
226 Degrees
Exhaust Duration
236 Degrees
Sold in Units of
Kit
Gasket Application
Exhaust, Intake
Intake Lobe Centerline
109 Degrees
Exhaust Lobe Centerline
113 Degrees

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2005
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2004
Make:Harley Davidson
Model:Road King Custom FLHRS
Action:View
Year:2001
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2000
Make:Harley Davidson
Model:Road King Classic EFI FLHRCI
Action:View
Year:2003
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2003
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2004
Make:Harley Davidson
Model:Dyna Low Rider EFI FXDLI
Action:View
Year:2001
Make:Harley Davidson
Model:Heritage Springer FLSTS
Action:View
Year:2003
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:1999
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2001
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2002
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2006
Make:Harley Davidson
Model:Road King Classic EFI FLHRCI
Action:View
Year:2006
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Low Rider FXDL
Action:View
Year:2006
Make:Harley Davidson
Model:Heritage Softail FLST
Action:View
Year:2004
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2002
Make:Harley Davidson
Model:Dyna Low Rider FXDL
Action:View
Year:2003
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2000
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2005
Make:Harley Davidson
Model:Fat Boy Anniversary FLSTF
Action:View
Year:2001
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2001
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:1999
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:1999
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2001
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2002
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2005
Make:Harley Davidson
Model:Road King Classic EFI FLHRCI
Action:View
Year:2000
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2002
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2004
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2002
Make:Harley Davidson
Model:Road Glide FLTR
Action:View
Year:2004
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2003
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2003
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2003
Make:Harley Davidson
Model:Heritage Springer FLSTS
Action:View
Year:2000
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2006
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide Custom FXDC
Action:View
Year:2002
Make:Harley Davidson
Model:Road King EFI FLHRI
Action:View
Year:2005
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2001
Make:Harley Davidson
Model:Dyna Low Rider FXDL
Action:View
Year:2005
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2002
Make:Harley Davidson
Model:Heritage Springer FLSTS
Action:View
Year:2002
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2003
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2001
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2000
Make:Harley Davidson
Model:Road Glide FLTR
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Deluxe FLSTN
Action:View
Year:2004
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2004
Make:Harley Davidson
Model:Softail Standard FXST
Action:View
Year:2004
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2002
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2006
Make:Harley Davidson
Model:Fat Boy FLSTF
Action:View
Year:1999
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2005
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2002
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2005
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2004
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2004
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2005
Make:Harley Davidson
Model:Road King Custom FLHRS
Action:View
Year:2001
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:1999
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2000
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2002
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2005
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2001
Make:Harley Davidson
Model:Softail Springer EFI FXSTSI
Action:View
Year:2000
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2001
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2000
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2002
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2004
Make:Harley Davidson
Model:Fat Boy FLSTF
Action:View
Year:2006
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2004
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2000
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2001
Make:Harley Davidson
Model:Heritage Softail Classic FLSTC
Action:View
Year:2004
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2004
Make:Harley Davidson
Model:Road King EFI FLHRI
Action:View
Year:2001
Make:Harley Davidson
Model:Road Glide FLTR
Action:View
Year:2004
Make:Harley Davidson
Model:Electra Glide Classic FLHTC
Action:View
Year:1999
Make:Harley Davidson
Model:Dyna Low Rider FXDL
Action:View
Year:2000
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2000
Make:Harley Davidson
Model:Dyna Low Rider FXDL
Action:View
Year:2002
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2003
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2002
Make:Harley Davidson
Model:Dyna Super Glide T Sport FXDXT
Action:View
Year:1999
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2000
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2001
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2003
Make:Harley Davidson
Model:Dyna Wide Glide FXDWG
Action:View
Year:2002
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2004
Make:Harley Davidson
Model:Road King Custom EFI FLHRSI
Action:View
Year:2004
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2005
Make:Harley Davidson
Model:Fat Boy FLSTF
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Standard FXST
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling HP+ Complete Gear Drive Cam Kit 525 w Quick Install Pushrod is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
