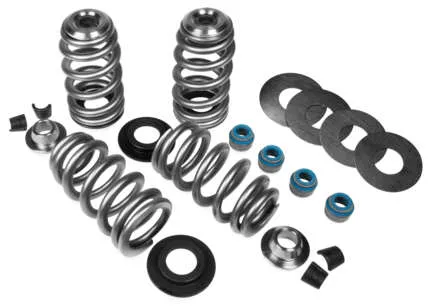

Feuling Endurance Beehive Valve Spring Kit w Titanium Retainers
Valve Spring Kit|SKU #1105-342

Feuling Endurance Beehive Valve Spring Kit w Titanium Retainers

$389.14
NEW PART

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 3 TX: 3 NV: 5 NC: 2

Policies & Support

Expert Support

(304) 699-7572

$389.14

Additional Note

A direct bolt in replacement up to 650" lift camshafts no spring seat machining required; machined from a premium grade hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.

Description

The Beehive Valve Spring Kits from Feuling are made from premium stress-relieved ovate wire designed to handle the demands of performance engines.

Features

  • Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
  • Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Direct bolt-in replacement up to 650" cam lift; no machining or rocker box clearancing required
  • Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Seat lbs./installed height; 198 lbs. at 1.685" (.535" lift), 194 lbs. at 1.703" (.553" lift), 190 lbs. at 1.724" (.574" lift), 187 lbs. at 1.754" (.604" lift), 185 lbs. at 1.780" (.630" lift), 160 lbs. at 1.800" (.650" lift), 375 lbs. at 1.150" (open height) coil bind at 1.100"
  • Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
  • Made in the U.S.A.
  • Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .650" lift for 05-17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.



Specifications

Condition
New
SKU#
1105-342
Part
Valve Spring Kit
Application
Exhaust, Intake
Gasket Application
Exhaust, Intake
Material
Steel
Secondary Material
Titanium
Spring Lift
0.65 in
Stem Diameter
7 mm
Sold in Units of
Kit

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2005
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2006
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2005
Make:Harley Davidson
Model:Fat Boy Anniversary FLSTF
Action:View
Year:2004
Make:Harley Davidson
Model:Sportster 883 Custom XL883C
Action:View
Year:2006
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2004
Make:Harley Davidson
Model:Sportster 1200 Custom XL1200C
Action:View
Year:2004
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2005
Make:Harley Davidson
Model:Sportster 883 Custom XL883C
Action:View
Year:2005
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2005
Make:Harley Davidson
Model:Night Train EFI FXSTBI
Action:View
Year:2005
Make:Harley Davidson
Model:Sportster 1200 Custom XL1200C
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide Sport FXDX
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Deuce FXSTD
Action:View
Year:2006
Make:Harley Davidson
Model:Sportster 1200 Custom XL1200C
Action:View
Year:2006
Make:Harley Davidson
Model:Sportster 883 Custom XL883C
Action:View
Year:2006
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Standard FXST
Action:View
Year:2006
Make:Harley Davidson
Model:Street Glide EFI FLHXI
Action:View
Year:2006
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2005
Make:Harley Davidson
Model:Electra Glide Standard FLHT
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Standard FXST
Action:View
Year:2002
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2006
Make:Harley Davidson
Model:Night Train FXSTB
Action:View
Year:2005
Make:Harley Davidson
Model:Heritage Softail Classic EFI FLSTCI
Action:View
Year:2003
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2006
Make:Harley Davidson
Model:Sportster 883 Roadster XL883R
Action:View
Year:2007
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2011
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2013
Make:Harley Davidson
Model:Sportster 1200 Custom Police XL1200CP
Action:View
Year:2010
Make:Harley Davidson
Model:Dyna Super Glide EFI FXDI
Action:View
Year:2009
Make:Harley Davidson
Model:Dyna Super Glide EFI FXDI
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Springer EFI FXSTSI
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Springer Classic EFI FLSTSCI
Action:View
Year:2013
Make:Harley Davidson
Model:Blackline FXS
Action:View
Year:2012
Make:Harley Davidson
Model:Dyna Switchback FLD
Action:View
Year:2012
Make:Harley Davidson
Model:Softail Slim FLS
Action:View
Year:2013
Make:Harley Davidson
Model:Dyna Switchback FLD
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Deluxe EFI FLSTNI
Action:View
Year:2006
Make:Harley Davidson
Model:Road King Custom EFI FLHRSI
Action:View
Year:2012
Make:Harley Davidson
Model:Sportster 1200 Custom Police XL1200CP
Action:View
Year:2013
Make:Harley Davidson
Model:Seventy Two XL1200V
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Deuce EFI FXSTDI
Action:View
Year:2006
Make:Harley Davidson
Model:Heritage Softail Classic EFI FLSTCI
Action:View
Year:2007
Make:Harley Davidson
Model:Sportster 1200 50th Anniversary XL50
Action:View
Year:2006
Make:Harley Davidson
Model:Heritage Softail EFI FLSTI
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Standard EFI FXSTI
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Standard EFI FXSTI
Action:View
Year:2004
Make:Harley Davidson
Model:Sportster 883 XL883
Action:View
Year:2008
Make:Harley Davidson
Model:Dyna Super Glide EFI FXDI
Action:View
Year:2006
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2012
Make:Harley Davidson
Model:Blackline FXS
Action:View
Year:2013
Make:Harley Davidson
Model:Fat Boy Lo FLSTFB
Action:View
Year:2006
Make:Harley Davidson
Model:Dyna Super Glide FXD
Action:View
Year:2013
Make:Harley Davidson
Model:Dyna Street Bob FXDB
Action:View
Year:2013
Make:Harley Davidson
Model:Softail Slim FLS
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide EFI FXDI
Action:View
Year:2005
Make:Harley Davidson
Model:Sportster 883 Roadster XL883R
Action:View
Year:2010
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Deluxe EFI FLSTNI
Action:View
Year:2007
Make:Harley Davidson
Model:Sportster 883 Roadster XL883R
Action:View
Year:2005
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Springer EFI FXSTSI
Action:View
Year:2005
Make:Harley Davidson
Model:Road King Custom EFI FLHRSI
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Springer Classic EFI FLSTSCI
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Deuce EFI FXSTDI
Action:View
Year:2005
Make:Harley Davidson
Model:Dyna Super Glide Sport EFI FXDXI
Action:View
Year:2012
Make:Harley Davidson
Model:Sportster 1200 XR1200X
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2005
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2009
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2007
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2008
Make:Harley Davidson
Model:Fat Boy EFI FLSTFI
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2005
Make:Harley Davidson
Model:Sportster 883 XL883
Action:View
Year:2013
Make:Harley Davidson
Model:Breakout FXSB
Action:View
Year:2006
Make:Harley Davidson
Model:Sportster 883 XL883
Action:View
Year:2011
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2006
Make:Harley Davidson
Model:Softail Springer FXSTS
Action:View
Year:2014
Make:Harley Davidson
Model:Dyna Switchback FLD
Action:View
Year:2014
Make:Harley Davidson
Model:Breakout FXSB
Action:View
Year:2014
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2014
Make:Harley Davidson
Model:Softail Slim FLS
Action:View
Year:2014
Make:Harley Davidson
Model:Seventy Two XL1200V
Action:View
Year:2014
Make:Harley Davidson
Model:Fat Boy Lo FLSTFB
Action:View
Year:2011
Make:Harley Davidson
Model:Sportster 1200 XR1200X
Action:View
Year:2014
Make:Harley Davidson
Model:Sportster 1200 Custom Police XL1200CP
Action:View
Year:2015
Make:Harley Davidson
Model:Dyna Switchback FLD
Action:View
Year:2015
Make:Harley Davidson
Model:Seventy Two XL1200V
Action:View
Year:2015
Make:Harley Davidson
Model:Electra Glide Ultra Classic Low FLHTCUL
Action:View
Year:2015
Make:Harley Davidson
Model:Breakout FXSB
Action:View
Year:2015
Make:Harley Davidson
Model:Softail Slim FLS
Action:View
Year:2015
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2015
Make:Harley Davidson
Model:Fat Boy Lo FLSTFB
Action:View
Year:2016
Make:Harley Davidson
Model:Softail Slim FLS
Action:View
Year:2016
Make:Harley Davidson
Model:Breakout FXSB
Action:View
Year:2016
Make:Harley Davidson
Model:Electra Glide Ultra Classic Low FLHTCUL
Action:View
Year:2016
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2016
Make:Harley Davidson
Model:Fat Boy Lo FLSTFB
Action:View
Year:2016
Make:Harley Davidson
Model:Seventy Two XL1200V
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling Endurance Beehive Valve Spring Kit w Titanium Retainers is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
