Feuling Black Aluminum Vented Dipstick
Dipstick|SKU #3092-342

Feuling Black Aluminum Vented Dipstick

$308.00
NEW PART

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 9+ NY: 9+ TX: 3 NV: 4 NC: 7

Policies & Support

Expert Support

(304) 699-7572

$308.00

Description

The Feuling billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve. Feuling vented dipsticks screw into the factory oil fill spout as a stock replacement part. These breathing dipsticks remove unwanted build-up of blow by pressure in the oil tank.

Features

  • Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
  • This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders which is a common issue with large displacement big bore engines
  • Test results show a decrease in engine sump oil levels
  • Two venting style options are available when installing dipstick

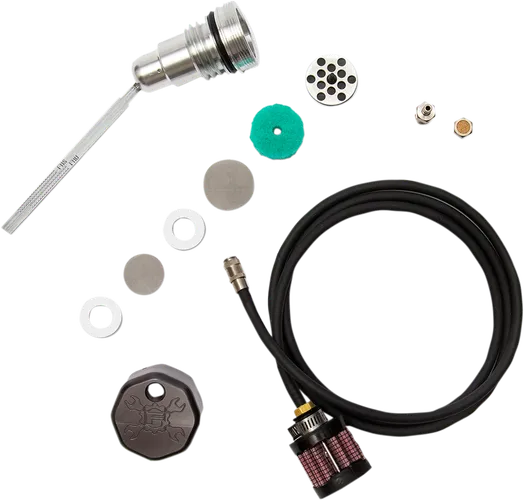

  • Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve

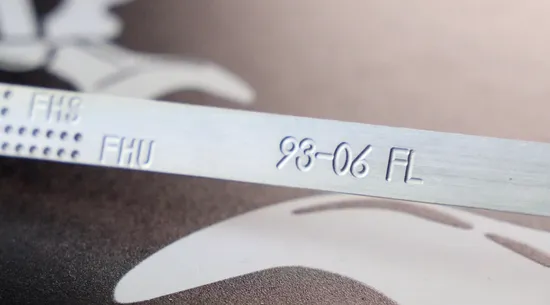

  • There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
  • If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
  • When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
  • Made in the U.S.A.
  • Two venting style options when installing dipstick: 1) Use the 1/8 NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by). 2) Use quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil). For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail.
  • The oil pick-up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.

Specifications

Condition
New
SKU#
3092-342
Part
Dipstick
Dipstick Type
Oil
Material
Aluminum
Base Color
Black
Surface Finish
Black
Sold in Units of
Each

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2011
Make:Harley Davidson
Model:Road King Classic FLHRC
Action:View
Year:2009
Make:Harley Davidson
Model:Electra Glide CVO Ultra Classic FLHTCUSE4
Action:View
Year:2009
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2011
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2011
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2011
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2010
Make:Harley Davidson
Model:Road King Classic FLHRC
Action:View
Year:2010
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2011
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2010
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2009
Make:Harley Davidson
Model:Road King Classic FLHRC
Action:View
Year:2012
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2010
Make:Harley Davidson
Model:Street Glide Trike FLHXXX
Action:View
Year:2009
Make:Harley Davidson
Model:Road Glide CVO FLTRSE3
Action:View
Year:2012
Make:Harley Davidson
Model:Road Glide Custom CVO FLTRXSE
Action:View
Year:2012
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2011
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2008
Make:Harley Davidson
Model:Road King Screamin Eagle FLHRSE4
Action:View
Year:2012
Make:Harley Davidson
Model:Street Glide CVO FLHXSE3
Action:View
Year:2012
Make:Harley Davidson
Model:Electra Glide CVO Ultra Classic FLHTCUSE7
Action:View
Year:2013
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2011
Make:Harley Davidson
Model:Street Glide Trike FLHXXX
Action:View
Year:2013
Make:Harley Davidson
Model:Road King Classic FLHRC
Action:View
Year:2013
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2007
Make:Harley Davidson
Model:Road King Screamin Eagle FLHRSE3
Action:View
Year:2010
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2013
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2013
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2010
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2010
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2012
Make:Harley Davidson
Model:Road King Classic FLHRC
Action:View
Year:2012
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2011
Make:Harley Davidson
Model:Street Glide CVO FLHXSE2
Action:View
Year:2013
Make:Harley Davidson
Model:Road King CVO FLHRSE5
Action:View
Year:2013
Make:Harley Davidson
Model:Road Glide Custom CVO FLTRXSE2
Action:View
Year:2009
Make:Harley Davidson
Model:Electra Glide EFI FLHTI
Action:View
Year:2012
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2013
Make:Harley Davidson
Model:Electra Glide CVO Ultra Classic FLHTCUSE8
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2010
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide Ultra Classic Screamin Eagle FLHTCUSE3
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2009
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2009
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2011
Make:Harley Davidson
Model:Electra Glide Ultra Classic EFI FLHTCUI
Action:View
Year:2011
Make:Harley Davidson
Model:Road Glide Ultra CVO FLTRUSE
Action:View
Year:2011
Make:Harley Davidson
Model:Electra Glide CVO Ultra Classic FLHTCUSE6
Action:View
Year:2010
Make:Harley Davidson
Model:Electra Glide CVO Ultra Classic FLHTCUSE5
Action:View
Year:2014
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2009
Make:Harley Davidson
Model:Electra Glide Police EFI FLHTPI
Action:View
Year:2014
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2014
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2008
Make:Harley Davidson
Model:Electra Glide Police EFI FLHTPI
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide Police EFI FLHTPI
Action:View
Year:2014
Make:Harley Davidson
Model:Road King CVO FLHRSE6
Action:View
Year:2015
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2015
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2015
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2015
Make:Harley Davidson
Model:Electra Glide Ultra Classic Low FLHTCUL
Action:View
Year:2015
Make:Harley Davidson
Model:Road Glide Ultra CVO FLTRUSE
Action:View
Year:2015
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2015
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2015
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2015
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2015
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2016
Make:Harley Davidson
Model:Street Glide Special FLHXS
Action:View
Year:2016
Make:Harley Davidson
Model:Ultra Limited CVO Electra Glide FLHTKSE
Action:View
Year:2016
Make:Harley Davidson
Model:Street Glide CVO FLHXSE
Action:View
Year:2016
Make:Harley Davidson
Model:Electra Glide Ultra Classic Low FLHTCUL
Action:View
Year:2016
Make:Harley Davidson
Model:Road Glide Ultra Ultra FLTRU
Action:View
Year:2016
Make:Harley Davidson
Model:Ultra Limited Low Electra Glide FLHTKL
Action:View
Year:2016
Make:Harley Davidson
Model:Road Glide Ultra CVO FLTRUSE
Action:View
Year:2016
Make:Harley Davidson
Model:Freewheeler FLRT
Action:View
Year:2016
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2016
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2016
Make:Harley Davidson
Model:Road Glide Special FLTRXS
Action:View
Year:2014
Make:Harley Davidson
Model:Electra Glide Ultra Classic Low FLHTCUL
Action:View
Year:2015
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2016
Make:Harley Davidson
Model:Road Glide Custom FLTRX
Action:View
Year:2014
Make:Harley Davidson
Model:Tri Glide Ultra Classic FLHTCUTG
Action:View
Year:2015
Make:Harley Davidson
Model:Electra Glide Police EFI FLHTPI
Action:View
Year:2016
Make:Harley Davidson
Model:Electra Glide Police EFI FLHTPI
Action:View
Year:2012
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2013
Make:Harley Davidson
Model:Electra Glide Classic EFI FLHTCI
Action:View
Year:2007
Make:Harley Davidson
Model:Road Glide EFI FLTRI
Action:View
Year:2008
Make:Harley Davidson
Model:Road Glide EFI FLTRI
Action:View
Year:2009
Make:Harley Davidson
Model:Road Glide EFI FLTRI
Action:View
Year:2007
Make:Harley Davidson
Model:Electra Glide Ultra Classic Screamin Eagle FLHTCUSE2
Action:View
Year:2015
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2014
Make:Harley Davidson
Model:Ultra Limited Electra Glide FLHTK
Action:View
Year:2016
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View
Year:2015
Make:Harley Davidson
Model:Road Glide FLTRX
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling Black Aluminum Vented Dipstick is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
