Valve Spring Kit|SKU #1207-342
Feuling Beehive Valve Spring Kit w Titanium Retainers
$595.50$655.05
NEW PART
Save $59.55 ($10.00%)
FREE Shipping
Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.
IN STOCKNY: 3 NV: 1
Expert Support
(304) 699-7572$595.50$655.05
Save $655.05
Description
Feuling Hi Load Beehive Spring Kit valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required up to 0.565 lift. These springs will accommodate over 0.600 cam lift but will require spring seat pocket machining on the cylinder heads to set correct spring open height. Milwaukee Eight HIGH LOAD springs are machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.
Features
- Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
- FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
- Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” (EU: 1,435 cm) lift
- Springs will accommodate over 0.600" (EU: 1,524 cm) cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
- Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

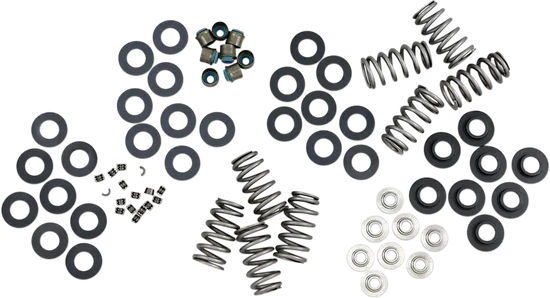

- Kits include: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
- ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection
- Seat lbs./Installed Height
- 151 Lbs. @ 1.475" (0.485" Lift) [EU: 68,49 kg @ 3,747 cm(1,232 cm Lift)]
- 144 Lbs. @ 1.498" (0.508" Lift) [EU: 65,32 kg @ 3,805 cm(1,290 cm Lift)]
- 143 Lbs. @ 1.501" (0.511" Lift) [EU: 64,86 kg @ 3,813 cm(1,298 cm Lift)]
- 140 Lbs. @ 1.511" (0.521" Lift) [EU: 63,50 kg @ 3,838 cm(1,323 cm Lift)]
- 124 Lbs. @ 1.562" (0.578" Lift) [EU: 56,25 kg @ 3,968 cm(1,468 cm Lift)]
- 120 Lbs. @ 1.582" (0.592" Lift) [EU: 54,43 kg @ 4,018 cm(1,504 cm Lift)]
- 304 Lbs @ 0.990" OPEN HEIGHT (EU: 137,89 kg @ 2,515 cm Open Height)
- Coil Bind @ 0.945" (EU: 2,400 cm)
- Recommended for 0.540”+ (EU: 1,372 cm +) lift camshafts
- Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
Specifications
Condition
New
SKU#
1207-342
Part
Valve Spring Kit
Stem Diameter
6 mm
Sold in Units of
Kit
FitmentHarley Davidson Road Glide Special FLTRXS, Street Glide Special FLHXS, Street Glide CVO FLHXSE, Ultra Limited CVO Electra Glide FLHTKSE, Ultra Limited Electra Glide FLHTK, Road King Special FLHRXS, Heritage Classic 107 FLHC, Fat Boy S 114 FLFBS, Road Glide FLTRX, Limited Edition FLTRK, Heritage Classic S 114 FLHCS, Softail Slim 107 FLSL, Fat Bob S 114 FXFBS, Street Bob 107 FXBB, Sport Glide FL 107 FLSB, Road Glide CVO FLTRXSE, Electra Glide EFI FLHTI, Street Glide EFI FLHXI, Road Glide Custom FLTRX, Electra Glide Police EFI FLHTPI, Road King EFI FLHRI, Freewheeler FLRT, Tri Glide Ultra Classic FLHTCUTG, Low Rider 107 FXLR 107, Breakout 114 FXBRS, Deluxe 107 FLDE, FXDR S 114, Low Rider S 114 FXLRS, Tri Glide CVO FLHTCUTGSE, Softail Standard 107 FXST, Ultra Limited Low Electra Glide FLHTKL, Road Glide Ultra Ultra FLTRU, Fat Bob 107 FXFB, Fat Boy 107 FLFB, Breakout 107 FXBR, Road Glide Custom CVO FLTRXSE, Electra Glide Ultra Classic EFI FLHTCUI
