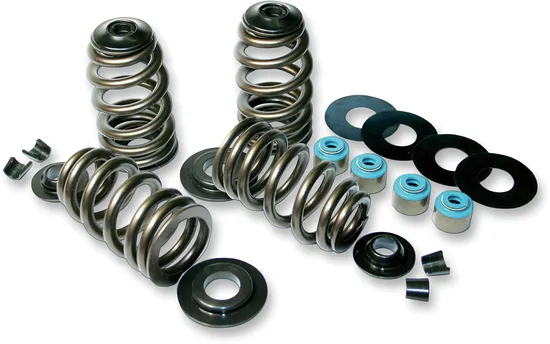

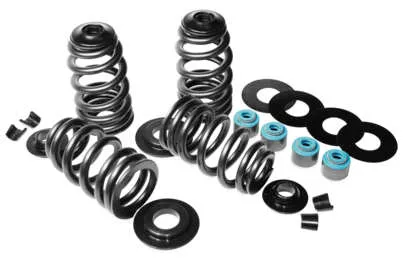

Feuling Beehive Valve Spring Kit
Valve Spring Kit|SKU #1120-342

Feuling Beehive Valve Spring Kit

$239.93
NEW PART

FREE Shipping

Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

IN STOCKWI: 1 NY: 7 TX: 2 NV: 8 NC: 6

Policies & Support

Expert Support

(304) 699-7572

$239.93

Additional Note

Allows up to 585" lift cams, no rocker box clearancing required. Eliminate valve spring separation, maximize stability, reduce valve-train noise and harmonics.

Description

The Beehive Valve Spring Kits from Feuling are made from premium stress-relieved ovate wire designed to handle the demands of performance engines.

Features

  • Made from premium stress-relieved conical ovate wire
  • Feature extremely high-level of fatigue life
  • Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Designed to handle the demands of performance engines with 585" and smaller lift camshafts
  • Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift), 175 lbs. at 1.795" (0.535" lift), 172 lbs. at 1.813" (0.553" lift), 165 lbs. at 1.835" (0.574" lift), 160 lbs. at 1.845" (0.585" lift), 380 lbs. at 1.260" OPEN HEIGHT coil bind at 1.190"
  • Dyno proven and track tested
  • Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
  • Made in the U.S.A.
  • Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.



Specifications

Condition
New
SKU#
1120-342
Part
Valve Spring Kit
Stem Diameter
7.3125 in
Material
Chrome Silicon
Secondary Material
Steel
Sold in Units of
Kit
Gasket Application
Exhaust
Application
Exhaust

Vehicle Compatibility

Search to verify this part fits your vehicle

Year:2001
Make:Buell
Model:Lightning X1
Action:View
Year:2000
Make:Harley Davidson
Model:Road King Classic EFI FLHRCI
Action:View
Year:2000
Make:Buell
Model:Cyclone M2
Action:View
Year:2004
Make:Harley Davidson
Model:Dyna Low Rider EFI FXDLI
Action:View
Year:1996
Make:Buell
Model:Thunderbolt S2T
Action:View
Year:2002
Make:Buell
Model:Cyclone M2 Low M2L
Action:View
Year:1995
Make:Buell
Model:Thunderbolt S2
Action:View
Year:2000
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1996
Make:Buell
Model:Lightning S1
Action:View
Year:1999
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1998
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1986
Make:Harley Davidson
Model:Sportster 883 XLH883
Action:View
Year:2002
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:1999
Make:Buell
Model:Cyclone M2
Action:View
Year:2001
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:2000
Make:Buell
Model:Lightning X1
Action:View
Year:1999
Make:Buell
Model:Lightning X1
Action:View
Year:2004
Make:Harley Davidson
Model:Road King FLHR
Action:View
Year:1987
Make:Harley Davidson
Model:Sportster 883 XLH883
Action:View
Year:2001
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1998
Make:Buell
Model:Lightning S1
Action:View
Year:1995
Make:Harley Davidson
Model:Heritage Softail Special Edition FLSTN
Action:View
Year:1999
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:1989
Make:Harley Davidson
Model:Sportster 883 XLH883
Action:View
Year:1987
Make:Harley Davidson
Model:Sportster 883 Deluxe XLH883
Action:View
Year:2002
Make:Harley Davidson
Model:Sportster 1200 Sport XL1200S
Action:View
Year:2002
Make:Harley Davidson
Model:Sportster 1200 XLH1200
Action:View
Year:1998
Make:Buell
Model:White Lightning S1
Action:View
Year:1999
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:1997
Make:Buell
Model:Cyclone M2
Action:View
Year:1989
Make:Harley Davidson
Model:Sportster 1200 XLH1200
Action:View
Year:1988
Make:Harley Davidson
Model:Sportster 883 XLH883
Action:View
Year:1986
Make:Harley Davidson
Model:Sportster 1100 XLH1100
Action:View
Year:2001
Make:Harley Davidson
Model:Sportster 883 Hugger XLH883
Action:View
Year:1988
Make:Harley Davidson
Model:Sportster 1200 XLH1200
Action:View
Year:1987
Make:Harley Davidson
Model:Sportster 1100 XLH1100
Action:View
Year:1998
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:2001
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:2000
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:1997
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:1996
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:1989
Make:Harley Davidson
Model:Sportster 883 Hugger XLH883
Action:View
Year:1986
Make:Harley Davidson
Model:Sportster 883 Deluxe XLH883
Action:View
Year:1988
Make:Harley Davidson
Model:Sportster 883 Deluxe XLH883
Action:View
Year:1988
Make:Harley Davidson
Model:Sportster 883 Hugger XLH883
Action:View
Year:1997
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:1998
Make:Buell
Model:Thunderbolt S3T
Action:View
Year:1993
Make:Harley Davidson
Model:Heritage Softail Nostalgia FLSTN
Action:View
Year:2003
Make:Harley Davidson
Model:Sportster 1200 Sport XL1200S
Action:View
Year:1989
Make:Harley Davidson
Model:Sportster 883 Deluxe XLH883
Action:View
Year:1996
Make:Harley Davidson
Model:Heritage Softail Special Edition FLSTN
Action:View
Year:2000
Make:Harley Davidson
Model:Sportster 1200 Sport XLH1200S
Action:View
Year:1987
Make:Harley Davidson
Model:Sportster 883 Hugger XLH883
Action:View
Year:1998
Make:Buell
Model:Cyclone M2
Action:View
Year:1997
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1997
Make:Buell
Model:Lightning S1
Action:View
Year:2002
Make:Harley Davidson
Model:Sportster 1200 Custom Police XL1200CP
Action:View
Year:2003
Make:Harley Davidson
Model:Sportster 1200 Custom Police XL1200CP
Action:View
Year:2001
Make:Buell
Model:Cyclone M2 Low M2L
Action:View
Year:2000
Make:Buell
Model:Blast 500
Action:View
Year:2001
Make:Buell
Model:Blast 500
Action:View
Year:2003
Make:Buell
Model:Lightning X1
Action:View
Year:1999
Make:Harley Davidson
Model:Sportster 883 Custom XLC EFI
Action:View
Year:1998
Make:Harley Davidson
Model:Sportster 883 Custom XL883C
Action:View
Year:2002
Make:Buell
Model:Thunderbolt S3
Action:View
Year:1995
Make:Buell
Model:Thunderbolt S2T
Action:View
Year:1988
Make:Harley Davidson
Model:Sportster 1100 XLH1100
Action:View
Year:2004
Make:Harley Davidson
Model:Sportster 883 Custom XL883C
Action:View

Brand Details

Feuling Oil Pump Corp.™ has pioneered and developed the technology behind some of the fastest land vehicle ever produced, designing the Oldsmobile™ Indy engine and licensing technology to major manufacturer such as Ford™, General Motors™, Harley-Davidson™, Chrysler™, Edelbrock™, and Nissan™ to name a few. If you want high speed performance parts that look good, from the designers of the fastest engines on the land, then you want Feuling™. Feuling Beehive Valve Spring Kit is just one of the wide array of exhaust, engine, fuel intake, oil pump, and cam shaft parts that Feuling™ offers.
