Daytona Wego III Wide-Band Air-Fuel Ratio Monitoring System Dual

WEGO III Wide Band Exhaust Gas O2 Sensor Interface:

• Dual channel
• Made in the U.S.A.
• Built-in USB interface
• Professional air/​fuel ratio system with built-in data logging
• Use P/N 115001 for replacement Bosch O2 sensor (sold each)
• Easy free air calibration procedure corrects for effects created due to sensor aging
• 11-16V DC supply voltage needed for operation; the current drain is approximately 1 amp
• Waterproof with ultra-bright daylight-readable blue display features automatic dimming function
• Versatile tuning aid for carbureted and fuel injection engines; suitable for on-road and dyno tuning
• 0-5V analog AFR output for interface to dyno instrumentation; easily interfaced to all leading dyno systems
• Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range using Bosch LSU 4.2 5 wire wide band oxygen sensor(s)
• Data logging software needs a PC or laptop with Windows 7/8/10; data can also be exported to an Excel spreadsheet for further analysis

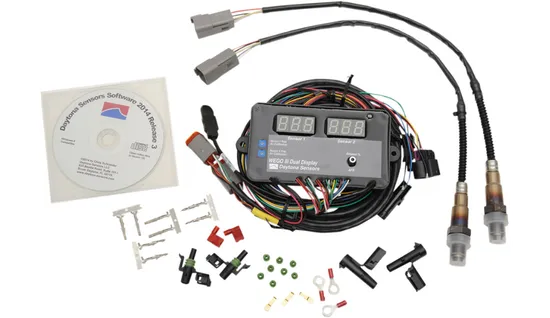

Items Included:

• Software
• 42” Harness
• (2) Bosch O2 Sensors
• 18mm x 1.5 weld nut(s) for sensor mounting
• WEGO III Wide Band Exhaust Gas O2 Sensor Interface
