2012 Kawasaki Mule 4010 4x4 KAF620M Used Parts Teardown, Stock #3339

PirateMX dismantled this 2012 Kawasaki Mule 4010 4x4 KAF620M for used parts, producing 71 parts from the side by side.

They include body, drivetrain, suspension, steering, storage and pedal components, along with larger assemblies. Browse the available parts below.

Available parts from this 2012 Kawasaki Mule 4010 4x4

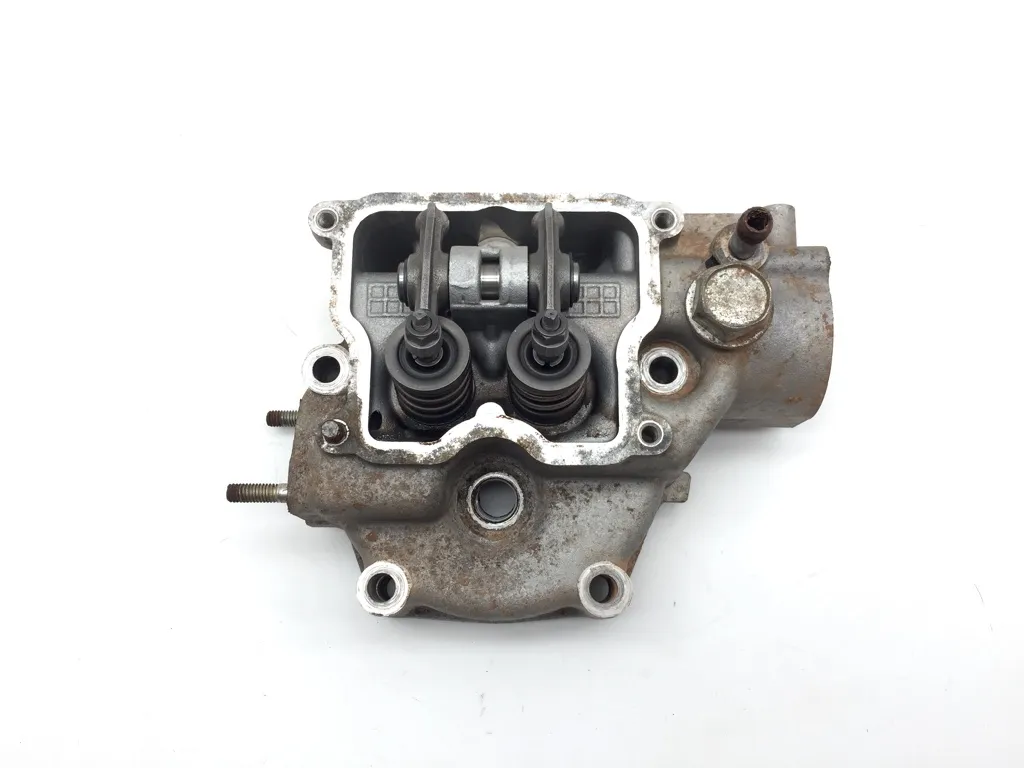

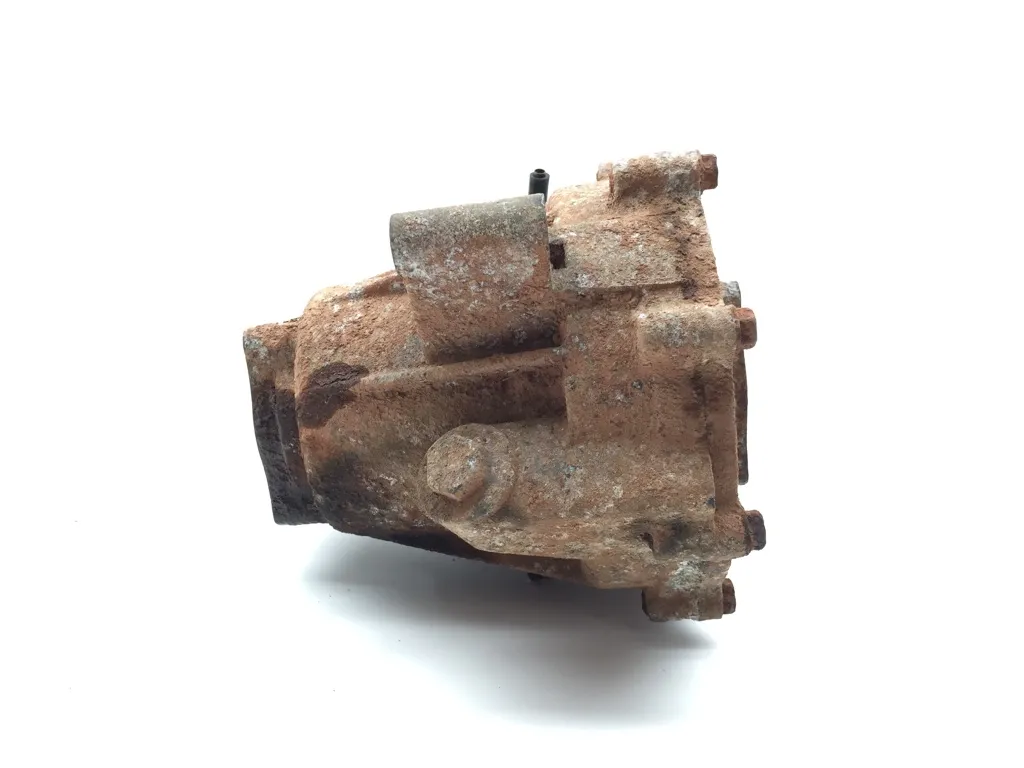

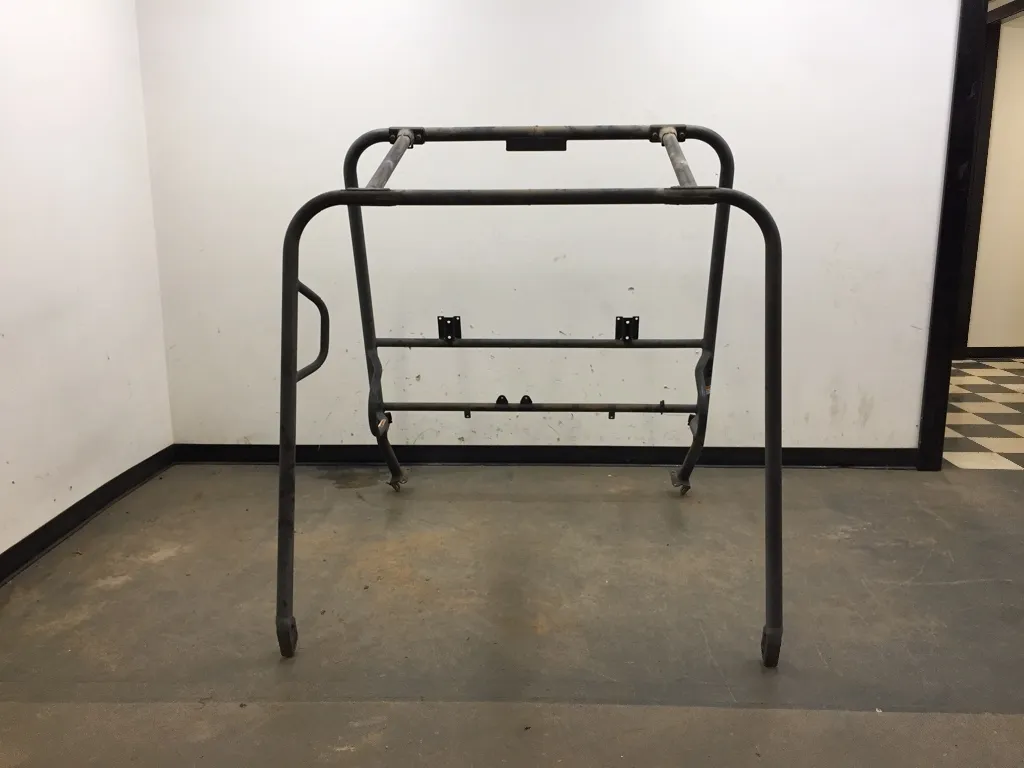

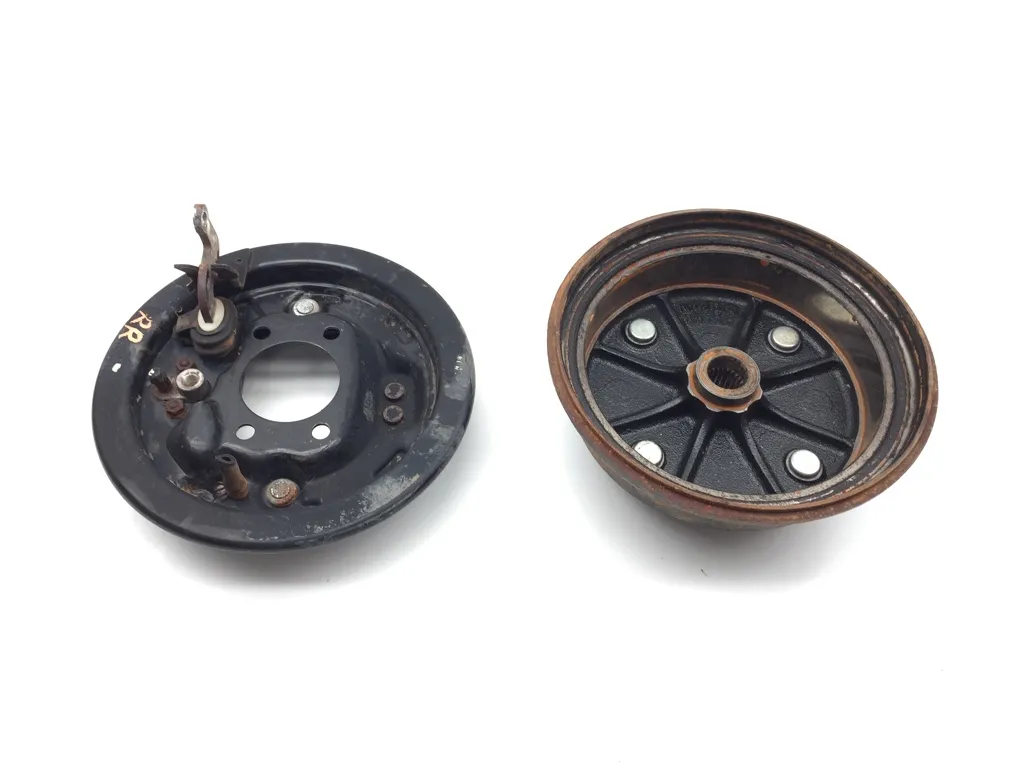

From stock #3339, the documented parts start with the cover, then include the roll cage, secondary clutch, front differential ring gear and pinion, complete rear cylinder head with valves, right rear brake drum assembly and right rear passenger axle.

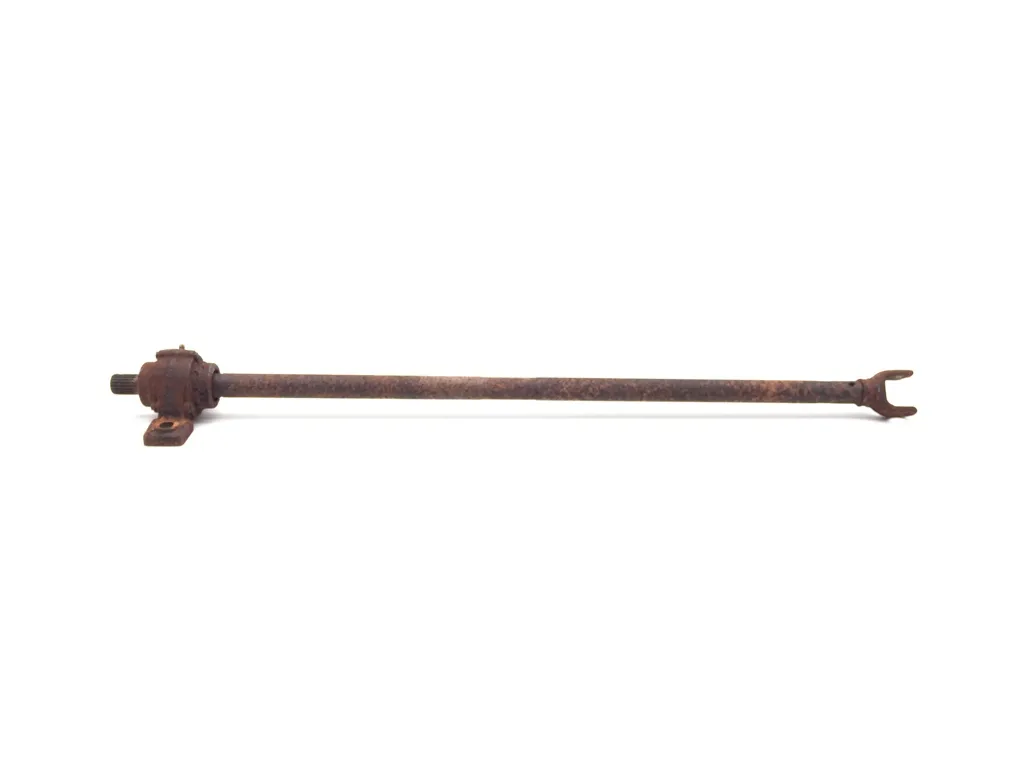

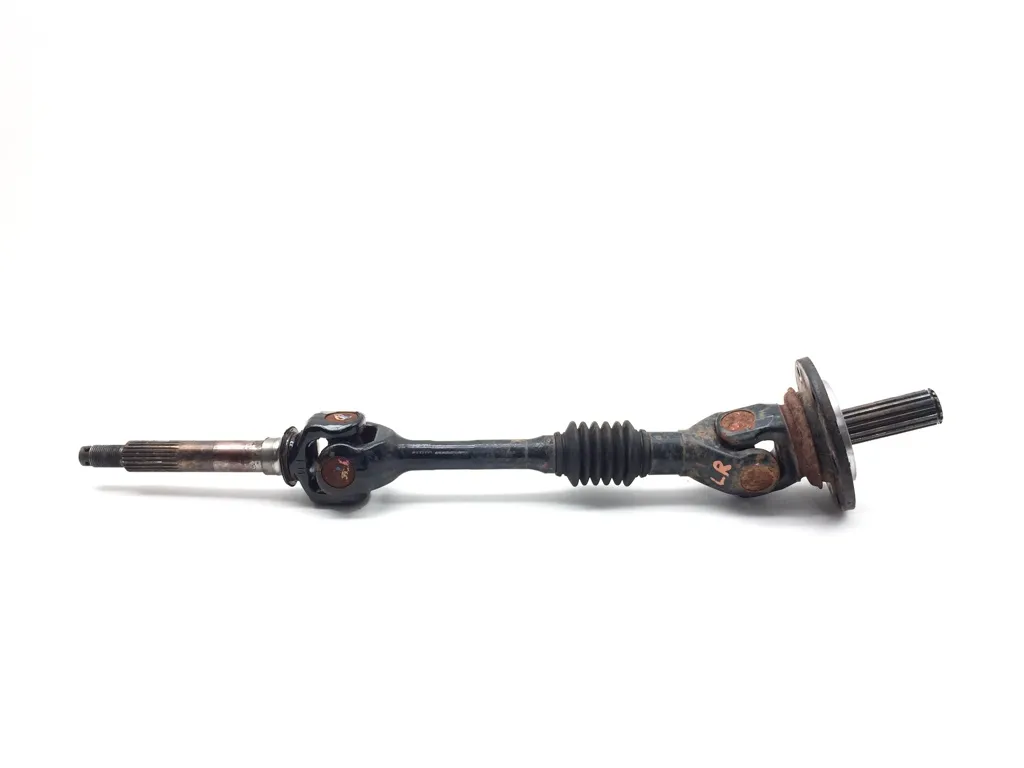

Other components from this 2012 Kawasaki Mule 4010 4x4 include the rear driver axle, exhaust pipe and muffler, front drive shaft and front shocks. Each item is one used part from this Kawasaki, not a group of interchangeable pieces.

Most-searched parts for the Kawasaki Mule 4010 4x4

Part	Where to find it
Cover	Shop cover for the Kawasaki Mule 4010 4x4

Other parts that fit the Mule 4010 4x4

If the matching part from stock #3339 has sold, look for the same component among other used Kawasaki Mule 4010 4x4 parts from PirateMX teardowns, or a new part made to fit the model.

For a driveline repair, compare the CV axle or related driveline component. For the suspension, body and controls, compare the shock, storage box or pedal assembly.

Use the OEM number and documented fitment on the part page before treating another Kawasaki Mule 4010 part as a match.

OEM numbers and fitment for the Mule 4010 4x4

An OEM number is the strongest documented reference for comparing the part on your side by side with a used component from this teardown. Match that number, then use the model and year shown on the part page before treating it as the right part.

Part	OEM number	Availability

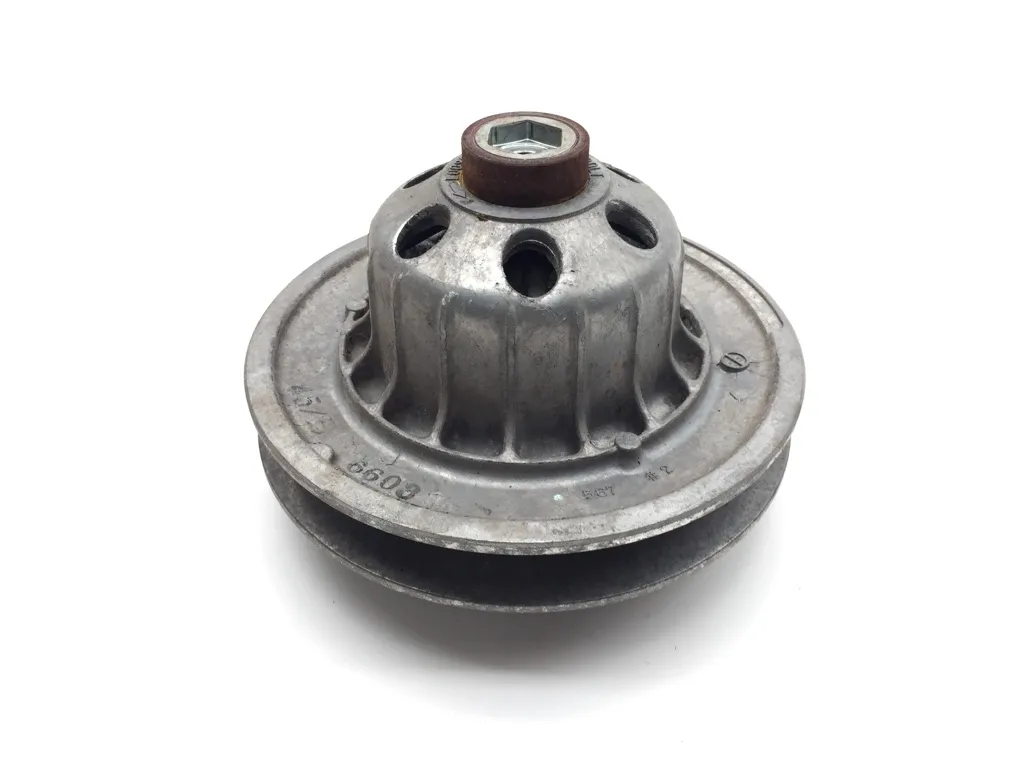

Secondary Clutch	49094-0045	In stock from this machine

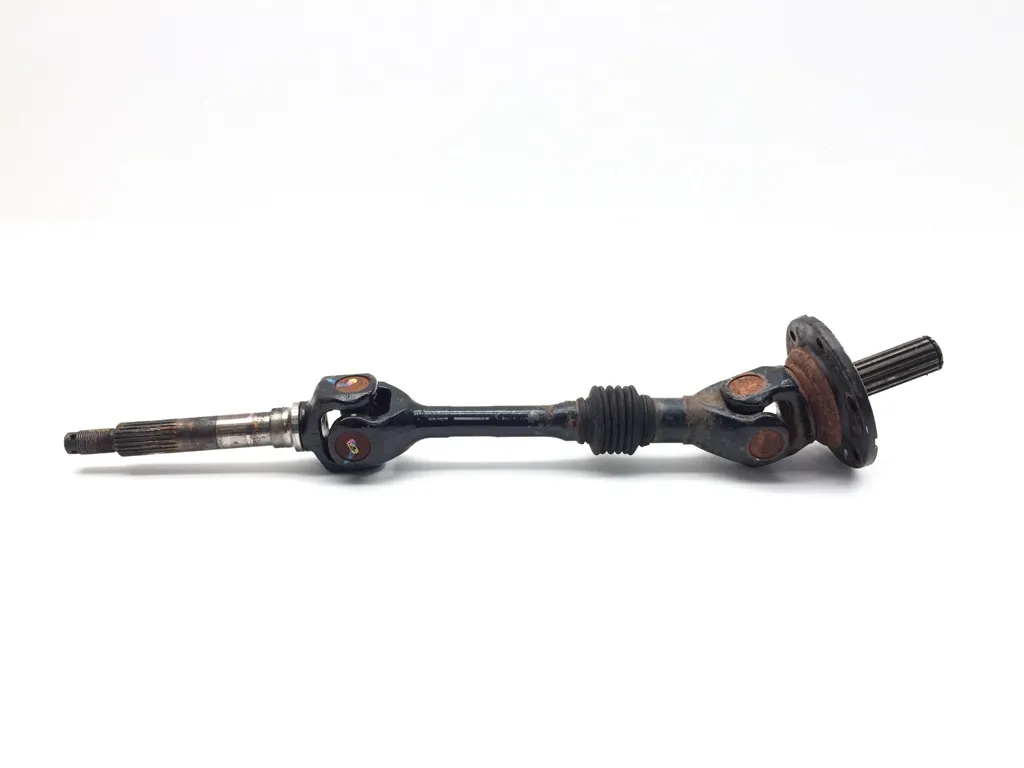

Rear Passenger Right Axle	39158-1119	In stock from this machine

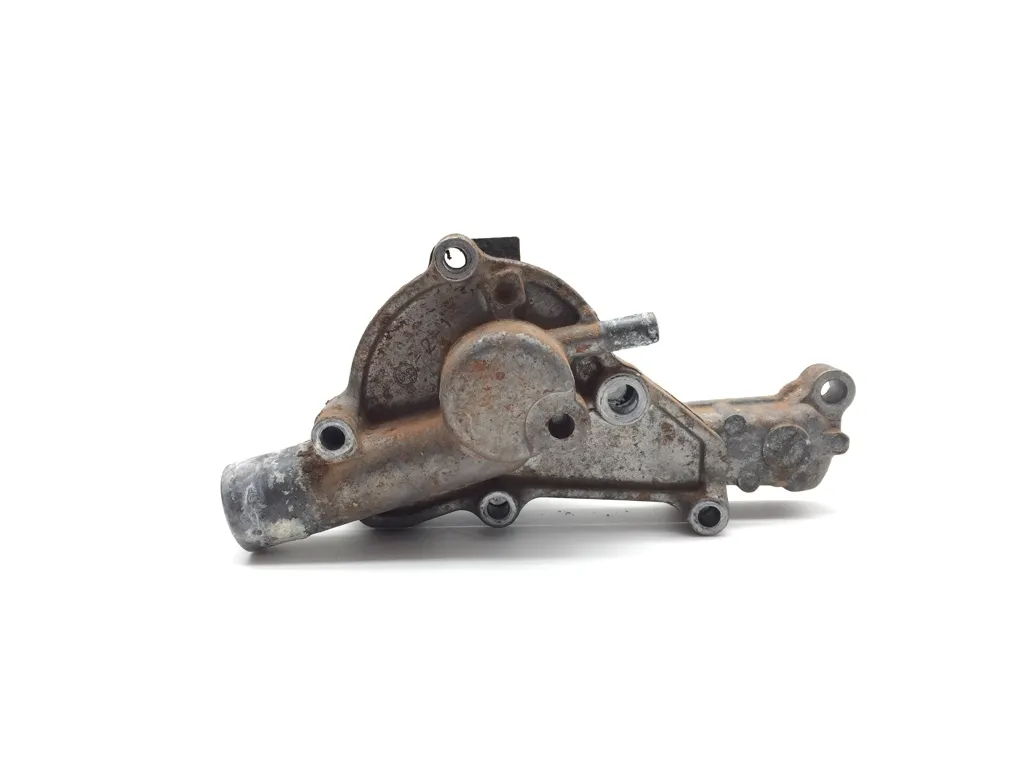

Engine Water Pump Assembly	49044-2066	In stock from this machine

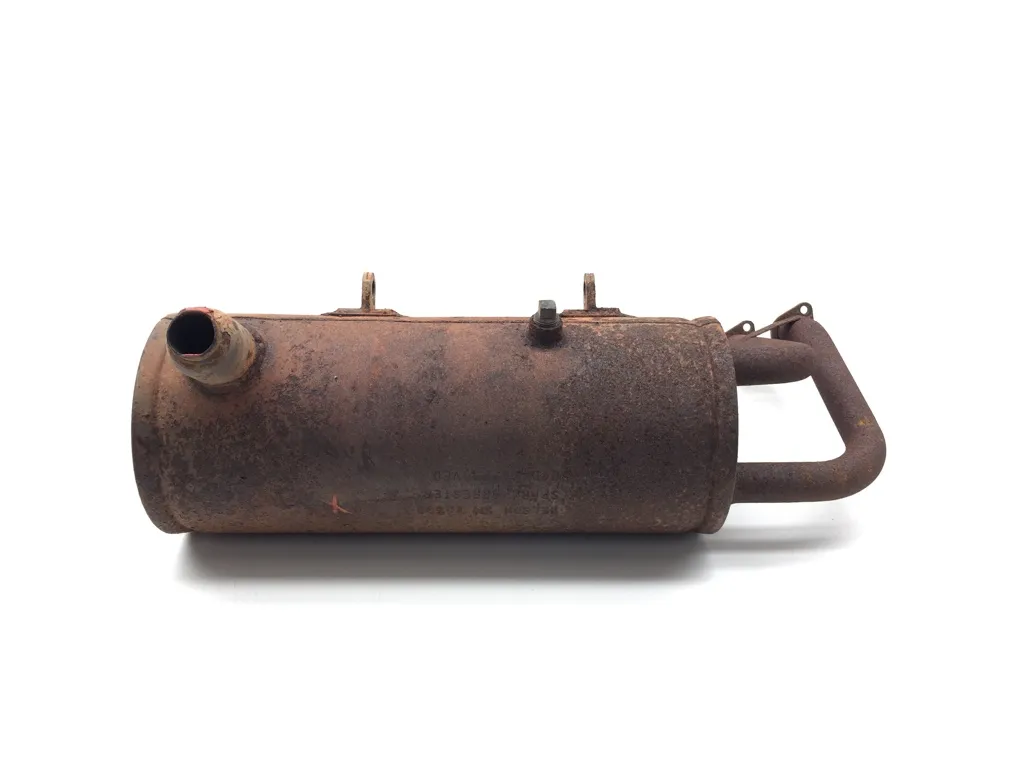

Exhaust Pipe Muffler Silencer	18090-1912	In stock from this machine

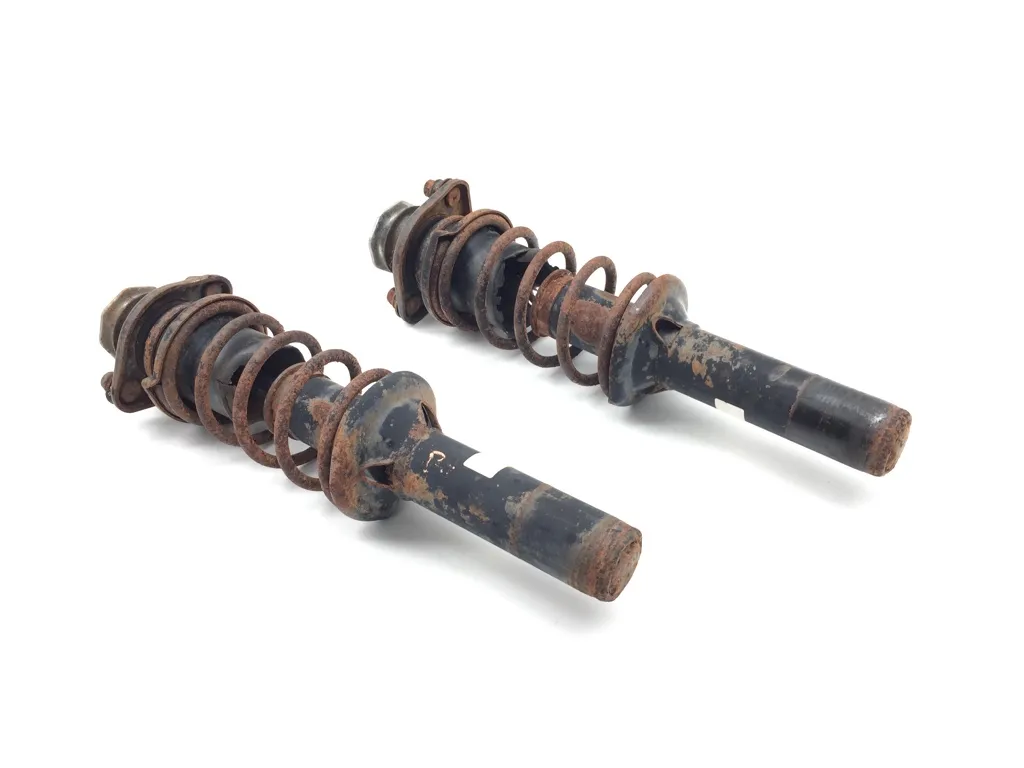

Front Shocks Suspension	45023-1006	In stock from this machine

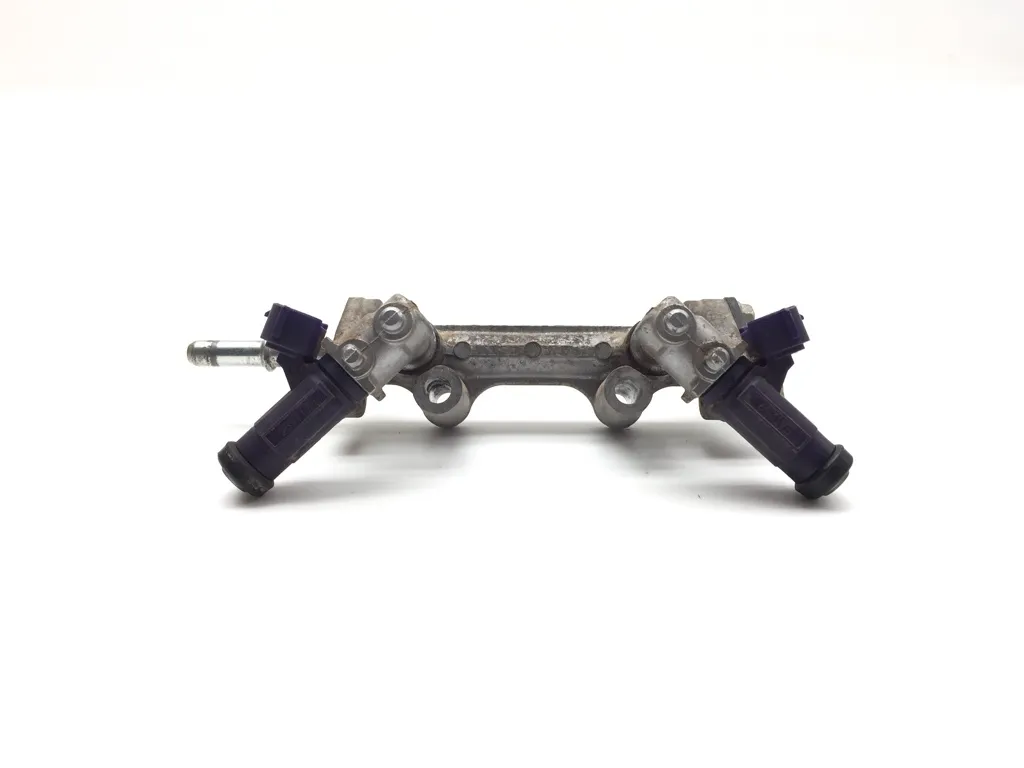

Fuel Rail W Injector	49033-2060	In stock from this machine

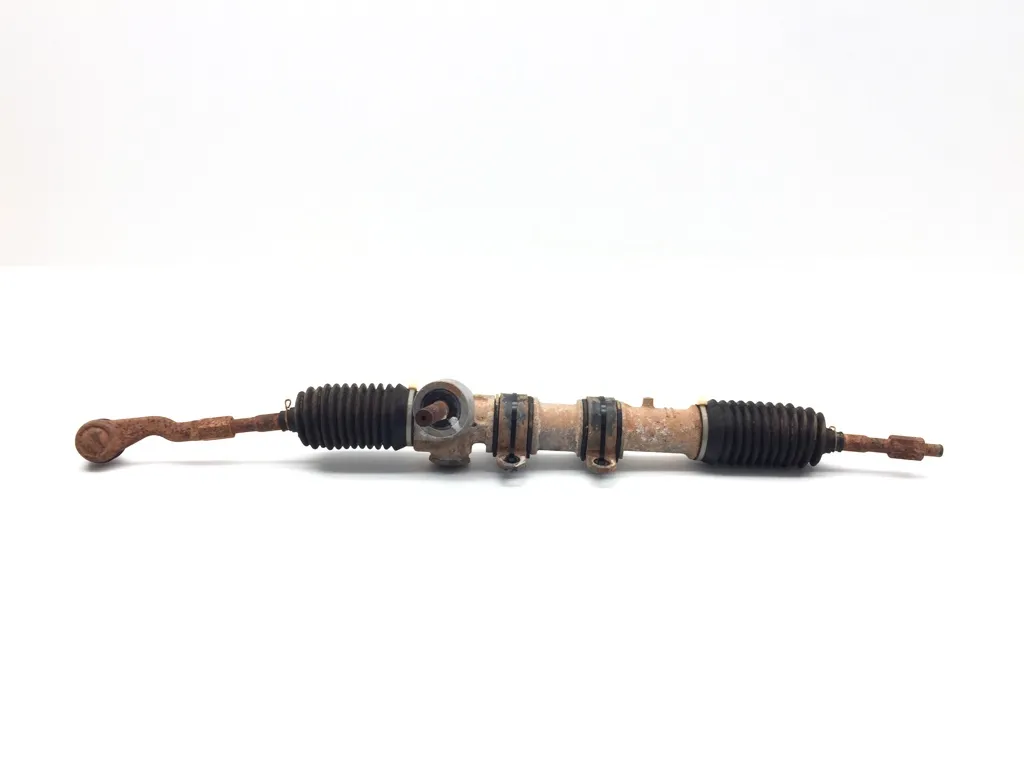

Steering Rack and Pinion	39191-0016	In stock from this machine

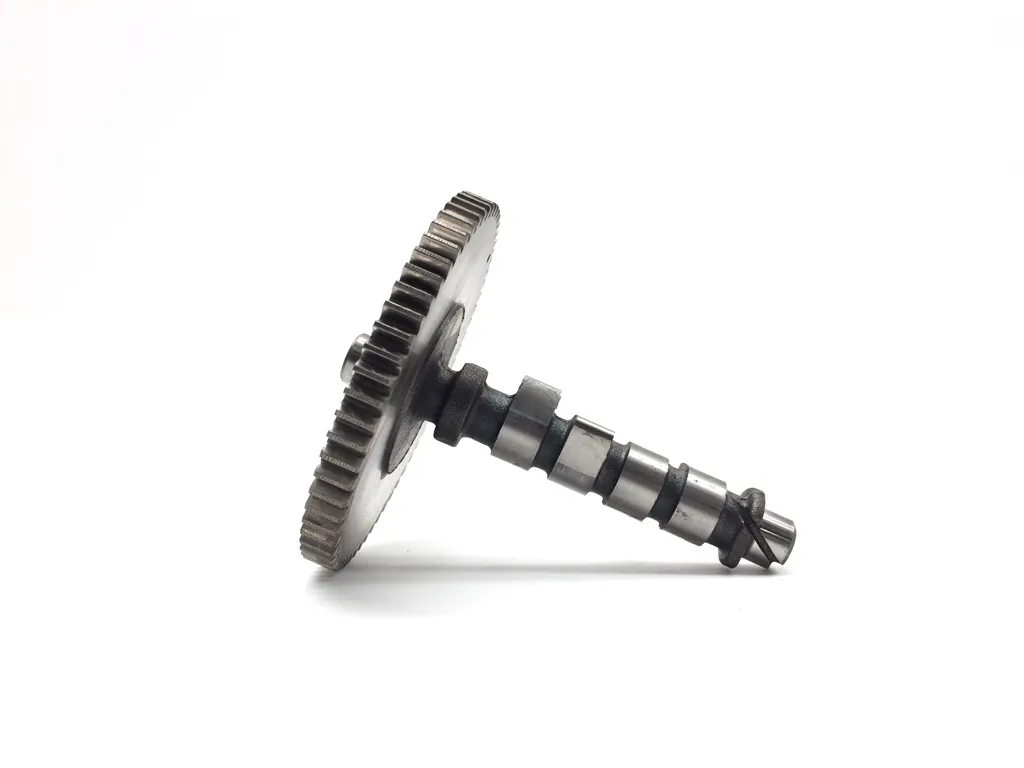

Camshaft	12044-2239	In stock from this machine

Also listed to fit	Years
Kawasaki Mule 4010 4x4 Trans	2009-2024
Kawasaki Mule 4000	2009-2026
Kawasaki Mule 3010 4x4	2001-2008
Kawasaki Mule 3010 4x4 Trans	2005-2008
Kawasaki Mule 4010 Trans	2025

Frequently asked questions

What parts came off this 2012 Kawasaki Mule 4010 4x4?

Parts from this Mule cover body, drivetrain, suspension, steering, storage and pedal repairs, plus larger engine and chassis assemblies. The teardown includes pieces from the cab structure, clutch, front differential, rear brake, axles, exhaust and front suspension. Each is one used part, so read its part note and check fitment for your exact year, make and model before you order.

How can I match an OEM number to a used Mule 4010 4x4 part?

Compare the OEM number from your Mule with the number in the table above and on the used part's page. A matching number is a strong reference, but you still need to check the fitment chart for your exact year, make and model before ordering. If the page does not give enough fitment information, ask PirateMX before you order.

What should I check if the part I need is not available from stock #3339?

Look for the same component from another Mule 4010 4x4 teardown or a new replacement made for your machine. Compare the OEM number, connection points and fitment chart rather than assuming another Mule part will work because it looks alike. Check fitment for your exact year, make and model before you order, and ask PirateMX if the page does not say.

Didn't find what you need from Stock #3339?

Browse all Kawasaki parts, or see every Kawasaki Mule 4010 4x4 part from our other donor machines, and our new Kawasaki Mule 4010 4x4 parts.

Check the year, make and model on each listing before you order.
