WSM Platinum Series Top End Piston Rebuild Kit Standard 83mm Polaris ATV 400
1 / 3
Top End Rebuild Kit|SKU #54-306-10P-1123

WSM Platinum Series Top End Piston Rebuild Kit Standard 83mm Polaris ATV 400

OUT OF STOCK

This item is currently unavailable. Get notified when it's back in stock.

$135.03$148.66
NEW PART

Save $13.63 ($10.09%)

FREE Shipping

    Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

    OUT OF STOCK

    Description

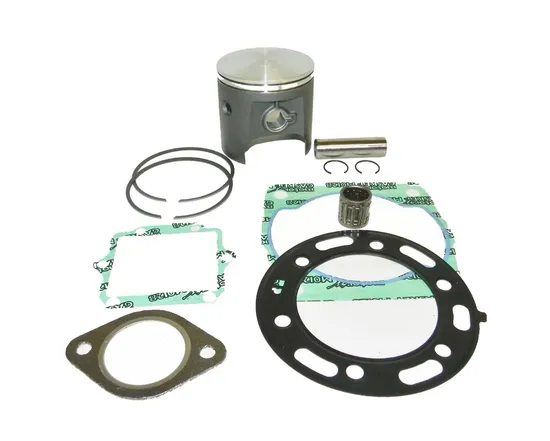

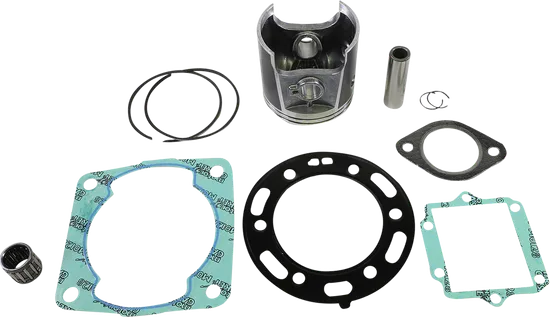

    Finding the correct pistons and gaskets to rebuild an engine can be challenging, but you're in luck! These WSM Platinum Series Standard Bore Top End Piston Rebuild Kits are high-quality and feature construction that meets or exceeds OEM specifications. Every kit is made of high-grade materials to ensure it can withstand whatever your ride puts you through. Platinum series pistons feature specially formulated non-abrasive skirt coatings and hardened tops for added horsepower and longevity. These kits contain standard bore pistons, ring sets, wrist pins, racing needle bearings, head & base gaskets, intake & exhaust gaskets, and improved E-clips. This kit is for stock cylinders that have not already been overbored. WILL NOT WORK WITH OVERBORED CYLINDERS/SLEEVES.

    Features

    • Made to exact OEM specifications
    • Platinum Series Pistons are made of high strength hardened aluminum designed to prevent skirt and ring groove breakage
    • The piston walls are treated with a nonabrasive coating which reduces heat and friction for added horsepower and greatly extends piston life

    Specifications

    Condition
    New
    SKU#
    54-306-10P-1123
    Part
    Top End Rebuild Kit
    Bearing Type
    Top End
    Riding Style
    ATV
    Material
    Aluminum
    Engine Type
    2-Stroke, 2 Stroke
    Bore Size
    83 mm, 83.00 mm
    Oem Piston Bore Size
    83 mm
    Piston Over Bore Amount
    0 mm
    Gasket Included
    Yes
    Gasket Application
    Top End
    Piston Diameter
    83 mm
    Piston Skirt Coated
    Mos2 Skirt Coating
    Piston Type
    Top End
    Sold in Units of
    Kit

    Vehicle Compatibility

    Search to verify this part fits your vehicle

    Year:2003
    Make:Polaris
    Model:Sportsman 400 4x4
    Action:View
    Year:2002
    Make:Polaris
    Model:Scrambler 400 4x4
    Action:View
    Year:1999
    Make:Polaris
    Model:Sport 400L 2x4
    Action:View
    Year:2001
    Make:Polaris
    Model:Sportsman 400 4x4
    Action:View
    Year:1998
    Make:Polaris
    Model:Sport 400L 2x4
    Action:View
    Year:2001
    Make:Polaris
    Model:Xplorer 400 4x4
    Action:View

    Brand Details

    With over four decades of experience, WSM™ supplies to some of the best, well-known powersports industries internationally; selling products from categories ranging from electrical, engines, and frames to accessories and other rider supplies. WSM™ provides exceptional quality products like WSM Platinum Series Top End Piston Rebuild Kit Standard 83mm Polaris ATV 400, at reasonable prices.
