Winch Mount Bracket|SKU #102020-549

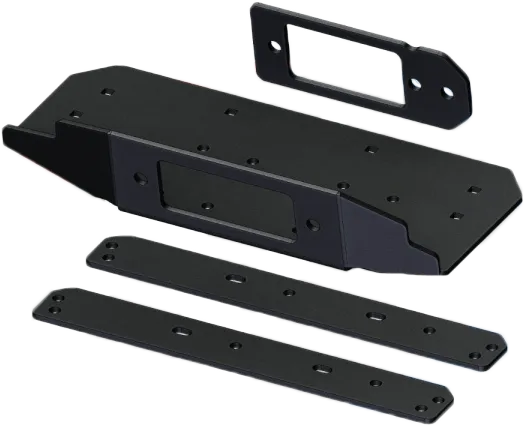

KFI UTV SXS Winch Mount
$92.84
NEW PART
FREE Shipping
Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.
IN STOCKIN: 4 NV: 1 GA: 1 TX: 2 WI: 4 PA: 1
Policies & Support
$92.84
Additional Note

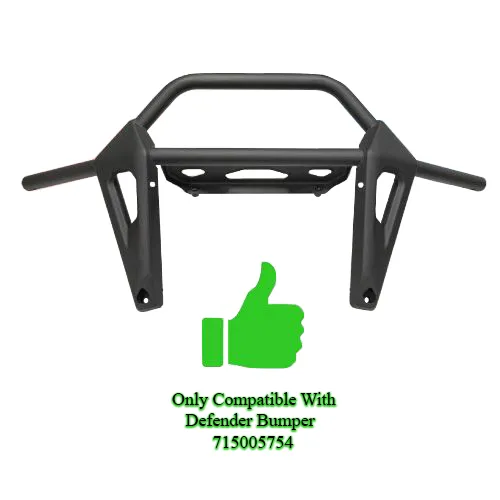

NOTE: Drilling may be required. This winch mount is slightly off-center and requires Can-Am bumper 715005754. A wide winch would not require drilling. If you are installing a winch with a 3" x 4.88" bolt pattern, 1 of the holes will need to be drilled in the bumper, using this mount as a template.
Description
Heavy-duty steel winch mount designed to work with many different brands. Please see item details for additional information.
Features
- Mount designed to work with the following winches:
- Traveller: 1078311
- QUADBOSS: RP25 / RP35
- RAMSEY: ATV2500 / ATV3000
- SMITTYBILT: XRC 3.0 / XRC 4.0
- CYCLE COUNTRY: Powermax 2500, 3500
- XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern)
- MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) All with 3.00" x 4.875" bolt pattern mount-up. All with 3.00" x 6.600" bolt pattern mount-up.
- SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S / AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S / A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40 / Vantage 2000-3000lbs / ProVantage 2500-3500lbs / Vantage 4000lbs / ProVantage 4500lbs
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- All mounting hardware included.
- Complete installation instructions included.
- Powder-coated black for supreme durability.
- Unlike all other mount competitors, KFI mounts are metal bead blasted before being powder-coated for the best possible finish prep.
Specifications
Condition
New
SKU#
102020-549
Part
Winch Mount Bracket
Finish
Black, Powder Coated
Position
Upper
Color
Black
Accessory Type
Winch
Material
Steel
Base Color
Black
Surface Finish
Black, Powder Coated
Sold in Units of
Each
Vehicle Compatibility
Search to verify this part fits your vehicle
Year
Make
Model
Action
2020
Can Am
Defender Max HD8 4x4 XT DPS
2022
Can Am
Defender Max HD9 4x4 XT DPS
2022
Can Am
Defender HD10 4x4 Limited Edition DPS
2020
Can Am
Defender Max HD10 4x4 XT DPS
2020
Can Am
Defender Pro HD10 4x4 XT DPS
2021
Can Am
Defender Max HD10 4x4 XT DPS
2021
Can Am
Defender Max HD8 4x4 XT DPS
2021
Can Am
Defender Pro HD10 4x4 XT DPS
2022
Can Am
Defender Max HD10 4x4 XT DPS
2022
Can Am
Defender Pro HD10 4x4 XT DPS
2022
Can Am
Defender HD10 6x6 Limited Edition
2022
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2023
Can Am
Defender Max HD10 4x4 XT DPS
2023
Can Am
Defender Max HD9 4x4 XT DPS
2023
Can Am
Defender HD10 4x4 Limited Edition DPS
2023
Can Am
Defender HD10 6x6 Limited Edition
2023
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2023
Can Am
Defender Pro HD10 4x4 XT DPS
2021
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Pro HD10 4x4 DPS
2024
Can Am
Defender HD10 6x6 Limited Edition
2024
Can Am
Defender Max HD9 4x4 XT DPS
2024
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2020
Can Am
Defender HD10 4x4 Limited Edition DPS
2021
Can Am
Defender HD10 4x4 Limited Edition DPS
2023
Can Am
Defender HD10 4x4 Limited Edition DPS
2024
Can Am
Defender HD10 4x4 Limited Edition DPS
2022
Can Am
Defender Max HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Max HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Max HD10 4x4 XT DPS
2024
Can Am
Defender Pro HD10 4x4 XT DPS
2023
Can Am
Defender Max HD10 4x4 Limited Edition DPS
2024
Can Am
Defender HD10 4x4 Limited Edition DPS
2025
Can Am
Defender HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Max HD10 4x4 Limited Edition DPS
2025
Can Am
Defender Max HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Max HD9 4x4 XT DPS
2024
Can Am
Defender Max HD10 4x4 XT DPS
2025
Can Am
Defender Max HD10 4x4 XT DPS
2024
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2025
Can Am
Defender Pro HD10 4x4 Limited Edition DPS
2024
Can Am
Defender Pro HD10 4x4 XT DPS
2025
Can Am
Defender HD10 6x6 Limited Edition
Brand Details
KFI Products™ is a family owned business that's been manufacturing high quality winches, plows, bumpers, hitches, and other accessories since 1986. Their team of skilled engineers and powersports enthusiasts design, manufacture, and rigorously test most of their high quality ATV parts & accessories at their Montana production plant. KFI UTV SXS Winch Mount was made with the highest quality materials available and was inspected after manufacturing to confirm fitment specifications.
