JE Ultra Series Piston Kit 2mm OB 86mm Bore 13.5:1 14.1:1
1 / 2
Piston Kit|SKU #379434-509

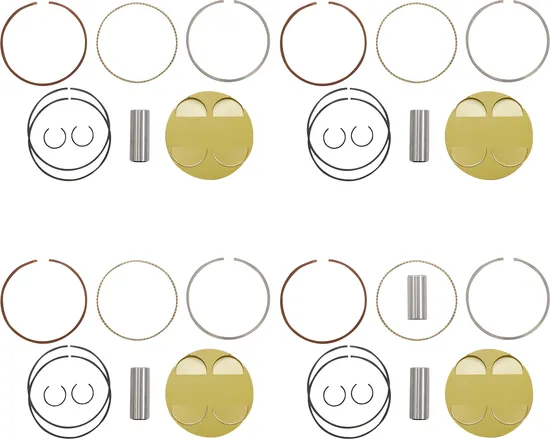

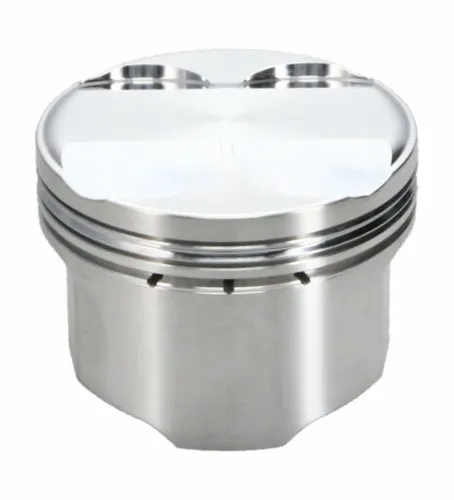

JE Ultra Series Piston Kit 2mm OB 86mm Bore 13.5:1 14.1:1

OUT OF STOCK

This item is currently unavailable. Get notified when it's back in stock.

$1,170.50$1,287.55
NEW PART

Save $117.05 ($10.00%)

FREE Shipping

    Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.

    OUT OF STOCK

    Description

    Introducing the JE Powersports Ultra Series Complete Piston Kit! This kit is a professional-grade solution for anyone looking to rebuild or simply upgrade an engine. It includes all necessary components: pistons, rings, wrist pins, and wire locks under one part number. That means you can save time and money with this single all-inclusive product. Plus, the piston skirt features a proprietary moly-based dry film coating that's applied in-house for maximum durability and better wear resistance. So you can rest assured that your engine will run smoother and last longer with this JE Complete Piston Kit. Don't waste your hard-earned money on inferior replacement parts, get the only solution you need with the JE Powersports Ultra Series Complete Piston Kit.

    Features

    • Lateral gas ports channel combustion gases to the back of the top ring groove adding pressure behind the compression ring to keep it pushed against the cylinder, providing improved and more consistent ring seal, critical in boosted applications
    • Aligned Grain Flow Technology - In-house forging has allowed JE to develop proprietary forging technology that directs the grain flow of the aluminum to flow around critical areas of the piston, increasing strength
    • Ultra-thick ring lands aid in maintaining ring stability in forced induction and high-horsepower N/A engines, contributing to consistent ring seal and consistent power
    • Thermal barrier crown ceramic coating on the piston crown greatly reduces heat transfer into the piston material, decreasing fatigue and improving longevity
    • Accumulator groove provides additional volume to trap unwanted gases below the top ring to keep pressure low and ring seal and performance high
    • Two oil channels fed into the pin bore maintain proper lubrication to improve wrist pin and pin bore wear resistance
    • Upgraded 9310 wrist pins are stronger and thicker, designed to withstand additional loads of forced

    Specifications

    Condition
    New
    SKU#
    379434-509
    Part
    Piston Kit
    Piston Diameter
    86 mm
    Compression Ratio
    13.5:1 to 14.1:1
    Piston Type
    Forged
    Wrist Pin Bearing Included
    Yes
    Piston Over Bore Amount
    2 mm
    Piston Skirt Coated
    Yes
    Oem Piston Bore Size
    84 mm
    Sold in Units of
    Kit
    Displacement
    1417cc, 1417 cc
    Bore Size
    86 mm, 86.00 mm
    Riding Style
    Street Motorcycle, Street

    Vehicle Compatibility

    Search to verify this part fits your vehicle

    Year:2010
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400C
    Action:View
    Year:2007
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400A
    Action:View
    Year:2008
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400C
    Action:View
    Year:2011
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400C
    Action:View
    Year:2006
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400A
    Action:View
    Year:2009
    Make:Kawasaki
    Model:Ninja ZX14 ZX1400C
    Action:View

    Brand Details

    Piston making has been in the Jahn family for longer than sliced bread has been sold, since 1912 when the JE Pistons™ founder's father ran a foundry with the tagline "Nothing but Pistons." The same expert craftmanship and dedication that was put into those original pistons are still put in the ones that are made today, granted today's pistons are made with state-of-the-art CNC milling and forging machines. All JE™ pistons are designed, forged, and machined in-house to ensure total control and quality in every step of the process. JE Ultra Series Piston Kit 2mm OB 86mm Bore 13.5:1 14.1:1 was expertly forged and crafted to ensure that it stands up to the toughest tests.
