Connecting Rod Kit|SKU #8621-478
Hot Rods Connecting Rod Kit
$205.93$229.82
NEW PART
Save $23.89 ($11.60%)
FREE Shipping
Buy Now, Pay Later with Easy EMI via Affirm on orders over $50. As low as 0% APR.
IN STOCKME: 1
Expert Support
(304) 699-7572$205.93$229.82
Save $229.82
Description
This connecting rod kit was developed as an alternative to the OEM part. We offer high quality forgings that are made using the best materials available and precision machined with state-of-the art equipment. Our rods provide longevity, durability, and performance that is second to none.
Features
- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Feature the latest in caged needle roller bearing designs for high rpm longevity
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Double honing produces an ultra-round bearing surface for reliability at high rpm
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility

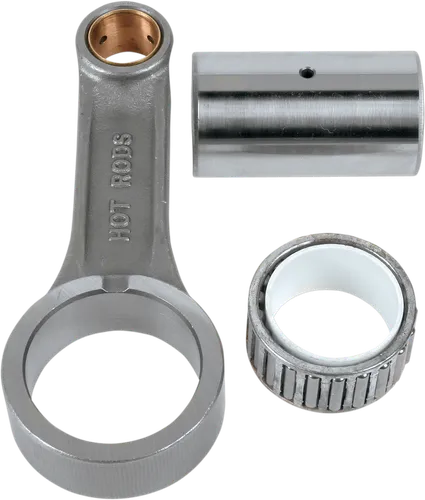

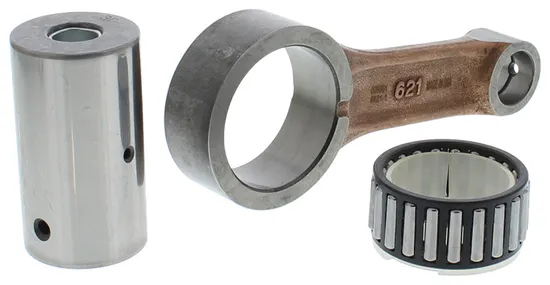

- kit includes: connecting rod, crank pin, crank bearing, wrist pin bearing and thrust washers
- premium quality
- inexpensive
- repair crankshafts instead of throwing them away
- forged rod
- 8620 aisi forged steel connecting rod
- case hardened
- crank pin
- 8620 aisi carburized crank pin for maximum strength and durability
- thrust washers
- s.a.e. recommended phosphor bronze
- crank & wrist bearing
- high quality, silver coated crankpin bearing for improved sliding at reduced temperatures
- wrist pin bearing is also included
- 0
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high-RPM longevity
- Thrust washers are manufactured from bronze phosphor and are silver-coated
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
- Compatible with Hot Rods and O.E. crankshafts
Specifications
Condition
New
SKU#
8621-478
Part
Connecting Rod Kit
Piston Type
Heavy Duty
Features
Heavy Duty
Material
Steel
Connecting Rod Style
Heavy Duty
FitmentYamaha WR450F , YZ450F
Vehicle Compatibility
Search to verify this part fits your vehicle
Year
Make
Model
Action
Brand Details
If you're looking for the best aftermarket crankshaft or connecting rod available on the market, then you're looking for Hot Rods™. Whatever you need for your bottom end, Hot Rods™ has it. With the quality that Hot Rods™ brings to the table it's not possible to find a substitute, so get Hot Rods Connecting Rod Kit while it's available or risk missing out on the best performance parts available.
