Feuling complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.
1 | Select A Make
2 | Select A Model
3 | Select A Year

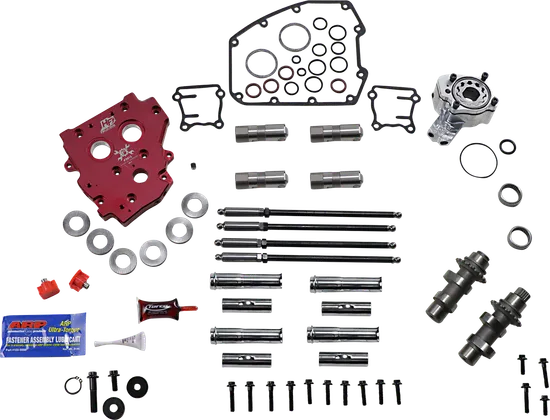

Feuling HP+ Complete Chain Drive Cam Kit 543 w Quick Install Pushrod 7231-342
Camshaft | SKU #7231-342 | MPN #7231
$1,590.28
- New Part
Average shipping time to your home 2-4 daysContact us for a question. Phone: (304) 699-7572
Availability: IN STOCK
- WI8
- NY6
- TX7
- NV5
- NC9
Specifications
| Condition | New |
| SKU# | 7231-342 |
| MPN# | 7231 |
| Part | Camshaft |
| Exhaust Close | 12 Degrees |
| Exhaust Open | 56 Degrees |
| Intake Open | 15 Degrees |
| Intake Close | 43 Degrees |
| Camshaft Type | Chain Drive |
| Intake Lift | 0.543 in |
| Exhaust Lift | 0.553 in |
| Intake Duration | 238 Degrees |
| Exhaust Duration | 248 Degrees |
Description
Features
- All necessary components from top-to-bottom of the camchest
- Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
- Quieter and smoother engine operation
- Increase oil pressure, scavenge volume and engine oil flow
- 25-35 degree cooler engine temperatures
- 15-30 degree cooler oil temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners
- Heavy-duty Fast Install adjustable pushrods can be installed without removing top rocker covers
- Includes Feuling® HP+® high-volume oil pump, high-flow billet cam plate, REAPER® Series camshafts, HP+® hydraulic roller lifters, Fast Install® adjustable pushrods, Timken®/Koyo® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
- Conversion chain drive kits update early mechanical-style tensioner systems to the new late-style hydraulic tensioner chain drive system; these kits utilize conversion Reaper® camshafts which have '99-'06 inner-cam journals matched with '07-'17 outer-cam journals, allowing the use of the '07-'17 cam plate and hydraulic chain drive tensioner system; hydraulic chain drive components purchased separately
- Installation of gear drive cams will require separate purchase of S&S or Andrews 4-gear drive kit
Additional Information
Note: Comes with the Quick Install Adjustable Push Rods
